| Type of Product | Function Generator |
| Display | 60.96 cm (2.4 inch) TFT Color LCD and 320 × 240 Pixel |
| Power Supply | DC 5V |
| Model No | FG3006 |
Type of Product |
Function Generator |
Display |
60.96 cm (2.4 inch) TFT Color LCD and 320 × 240 Pixel |
Power Supply |
DC 5V |
Model No |
FG3006 |
Protection |
Output Short-Circuit Protection (60 Seconds) |
Waveform |
Sine, Square, CMOS, DC, Triangular, Rising Sawtooth, Falling Sawtooth, Stepped Triangular, Positive Full Wave, Positive Half Wave, Random Noise, Amplitude Modulation, Frequency Modulation |
Operating Temperature |
0°C to 40°C |
Sampling Rate |
150 MSa/s |
Country of Origin |
India |
Included Components |

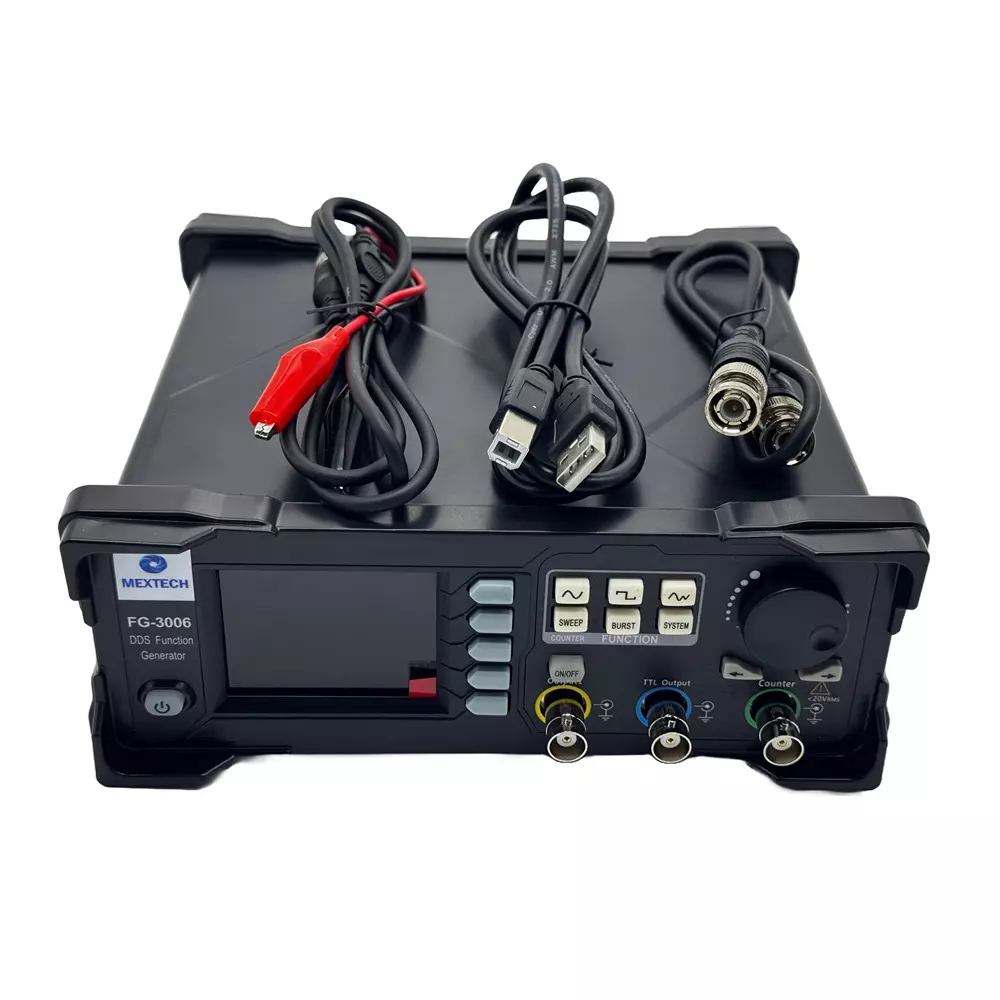

5V 1A Power Adapter, USB-B Data Cable, BNC to Clamp Cable, BNC-BNC Connecting Cable, User Manual |
Frequency Accuracy |
Up to 10⁻² Order |
Name of Manufacturer/Packer/Importer |
SR ENTERPRISES |
Scanning Mode |
Linear Scan, Logarithmic Scan |
Operating Humidity |
≤80% RH |
Communication Interface |
USB to Serial |
Maximum Output Frequency |
5 MHz (Sine Wave) |
Frequency Resolution |
0.01 Hz (10 mHz) |
Amplitude Resolution |
0.01 V (10 mV) |
Digital Output |
CMOS Level 0 – 7.5 V |
Build Technology |
Surface Mount Technology with Large-Scale Integrated Circuit |
Duty Cycle Adjustment |
Adjustable with 0.1% Accuracy |
Communication Rate |
115200 bps |
Burst Output |
1 to 100,000 Pulse Trains (Manual or External Trigger) |
Storage Capacity |
20 Sets of User Parameters |
Vertical Resolution |
12 Bits |
