| Type of Product | AC Gear Motor |
| Maximum Torque | 101 in-lb |
| Part No | 6Z412 |
| Frequency | 50 Hz |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
AC Gear Motor |
Maximum Torque |
101 in-lb |
Part No |
6Z412 |
Frequency |
50 Hz |
Power |
1/4 HP |
Standard |
C-UL Recognized UL Recognized |
Output Shaft Diameter |
3/4 inch |
Motor Type |
Permanent Magnet DC |
Thermal Protection |
None |
Maximum Ambient Temperature |
40 °F |
Lubrication |
Permanent Heavy Fluid Gear Oil |
Gear Ratio |
12:1 |
Gear Material |
Hardened Steel |
Full Load Current (Amps) |
2.7 A |
Country of Origin |
USA |
Output Shaft Length |
1-1/2 inch |
Bearing Type |
Ball on Motor Heavy Duty Ball and Thrust Balls on Case |
UNSPSC Code |
26101603 |
Length Less Shaft |
11.75 inch |
Rotation |
CW/CCW |
Seal Type |
Lip Type on Input and Output Shaft |
Mounting Orientation |
Any Angle |
Motor Enclosure |
Totally Enclosed Nonventilated |
Shaft Orientation |
Parallel |
Gear Type |
Helical (1st Stage) Spur (Subsequent Stages) |

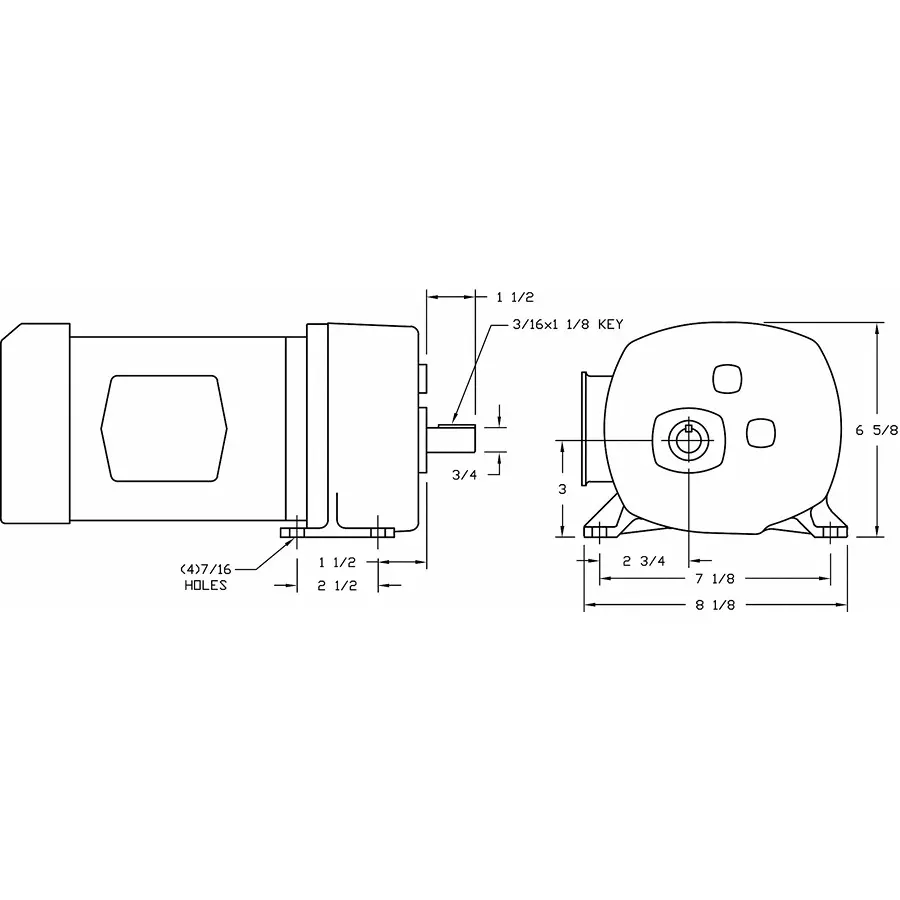

Mount Hole Center-to-Center Width |
7.13 inch |
Overall Width |
8.13 inch |
Base to Center of Shaft |
3 inch |
Overall Height |
6.63 Inch |
Mount Hole Center-to-Center Length |
2.5 inch |
Overall Length |
13.25 inch |
Keyway Width |
1/8 inch |
Nameplate Speed |
148 RPM |
Overhung Load Capacity |
325 ft-lb |
Rated Voltage |
90 V DC |
Item No |
6Z412 |
Keyway Depth |
3/16 inch |
Replaceable Motor Brushes |
Yes |
Length (mm) |
298.5 mm |
Overall Length (cm) |
33.66 cm |
Overall Height (mm) |
168.4 mm |
Overall Width (mm) |
206.5 mm |
Maximum Torque (Nm) |
11.4 Nm |
