Limit Switches

Everything You Should Know About Limit Switches

Limit switches are electromechanical switches used to detect the presence or absence of an object or determine its position within a certain range of motion. They are commonly used in industrial control systems, robotics, and automation.


Limit switch omron have various designs, including lever-type, roller-type, and plunger-type switches. Lever-type switches and accessories are the most common, and they are often used to detect the presence or absence of an object by positioning the lever in such a way that the object's movement triggers it.

What are the benefits of using limit switches?

Limit switches are small electromechanical devices that are used to capture the presence or absence of an object or to measure the position of an object. Read some of the benefits of using Honeywell limit switches:

1. Safety: Limit switches are often used in machinery to prevent damage or injury. For example, in a conveyor belt system, a limit switch can detect when a product has reached the end of the line, preventing damage to the equipment.
2. Accuracy: Limit switches can be used to measure the exact position of an object. This can be important in robotics or automated assembly lines, where precise positioning is required.
3. Reliability: Limit switches are typically very reliable, with long lifetimes and minimal maintenance requirements. This can make them a cost-effective solution for many applications.
4. Versatility: Limit switches can be used in various applications, from simple on/off detection to complex position sensing. They are available in a variety of form factors, from small microswitches to larger industrial switches.
5. Ease of integration: Limit switches on valves are relatively easy to integrate into a variety of systems, and they can be easily connected to other components such as relays, controllers, or PLCs.

Overall, limit switches are a versatile and reliable solution for many applications requiring object detection or position sensing.

How many types of limit switches are there?

There are several types of limit switches, but the most common ones are:

1. Lever-Actuated Limit Switches: These switches are activated by a lever arm that is pushed or pulled by an object or machine part to open or close a circuit.

2. Plunger-Actuated Limit Switches: These switches use a plunger that extends or retracts when a machine part moves, activating the switch to open or close a circuit.

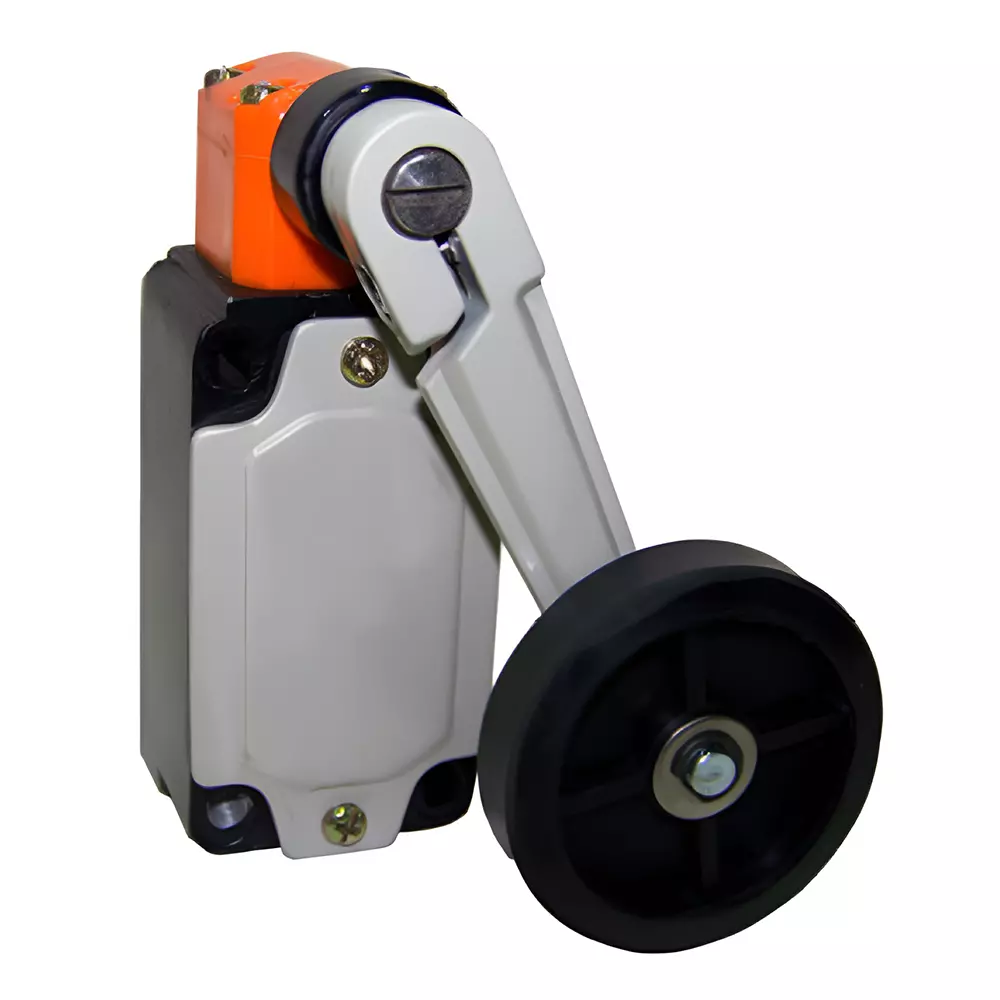

3. Roller-Actuated Limit Switches: These switches have a roller on the end of a lever arm that moves when a machine part comes into contact with it, activating the switch to open or close a circuit.

4. Rotary-Actuated Limit Switches: These switches are activated by a rotating arm or cam that opens or closes a circuit when it reaches a certain angle or position.

5. Magnetic Reed Switches: These switches use a magnet and a reed switch to open or close a circuit when the magnetic field is disrupted by a moving object or machine part.

6. Mercury Switches: These switches use a small amount of mercury to open or close a circuit when the switch is tilted or moved in a certain direction.

Note that there may be other types of limit switches in industrial automation, for example, schmersal limit switch, siemens limit switch, and Schneider limit switch but these are the most common ones.

What are the applications limit switches are used?

Limit switches are commonly used in various industrial and commercial applications where there is a need to control and monitor the movement of machinery or equipment. Some common applications of limit switches include:

1. Machine Tools: Limit switches are used in machine tools to detect the end of a stroke or the position of a tool.
2. Conveyor Systems: Limit switches are used to catch the presence or absence of materials on a conveyor belt and stop the conveyor when an object reaches the end of the belt.
3. Elevators: Limit switches are used to detect when the elevator car reaches the top or bottom of the shaft and ensure that the doors open and close properly.
4. Robotics: Limit switches are used in robotic applications to detect the robot arm's position and prevent it from colliding with other objects.
5. Automated Assembly Lines: Limit switches are used to control the movement of products on an assembly line and to ensure that they are properly aligned.
6. Packaging Machinery: Limit switches are used in packaging machinery to detect the position of packaging materials, such as boxes or bags, and to stop the machine when the materials are not in the correct position.
7. Industrial Doors and Gates: Limit switches are used in industrial doors and gates to detect when they are fully open or closed and prevent them from opening or closing if there is an obstruction.
8. HVAC Systems: Limit switches are used in heating, ventilation, and air conditioning systems to detect the position of dampers and valves and to control the flow of air or water.
