| Model No | TPDV840RG |

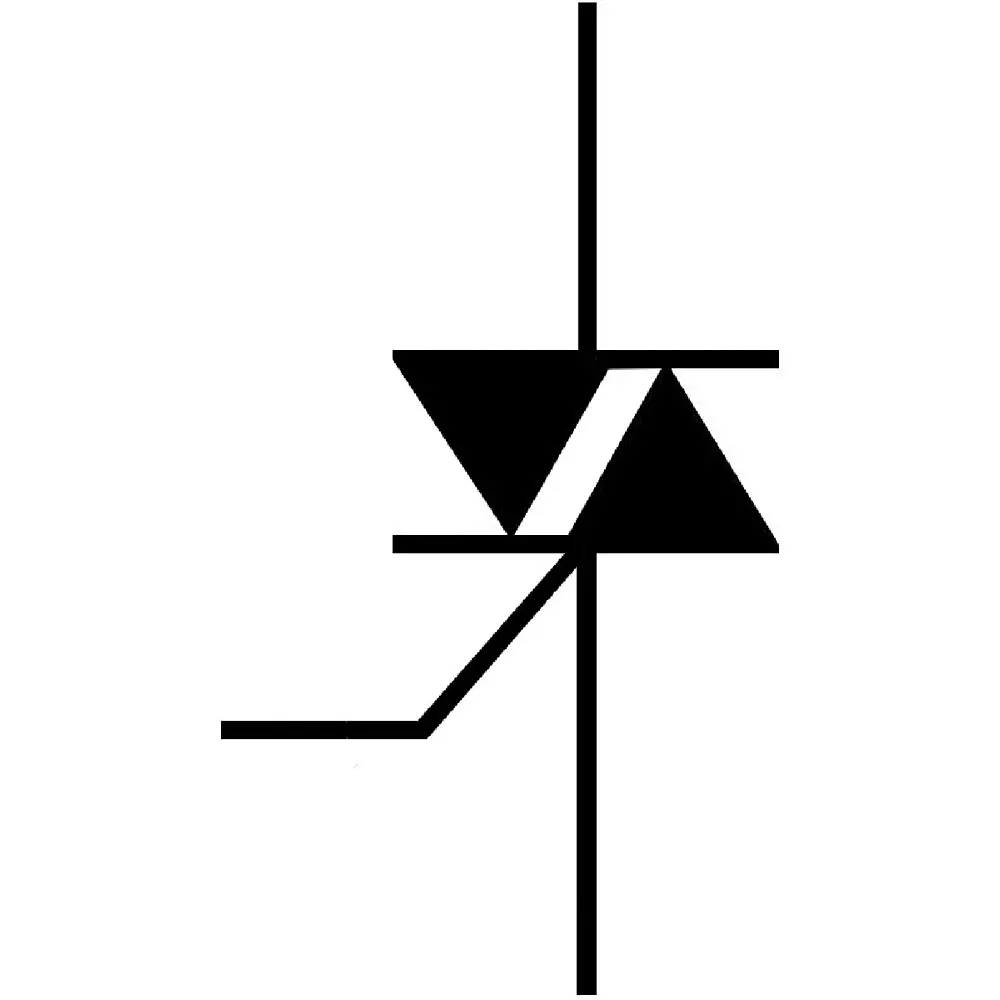

| Type of Product | TRIAC |
| Dimension | 15.5x4.6x12.85 mm |
| Height | 12.85 mm |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Model No |
TPDV840RG |
Type of Product |
TRIAC |
Dimension |
15.5x4.6x12.85 mm |
Height |
12.85 mm |
Width |
4.6 mm |
Country of Origin |
USA |
Mounting Type |
Through Hole |
Maximum Operating Temperature |
+125°C |
Minimum Operating Temperature |
-40°C |
Length |
15.5 mm |
Name of Manufacturer/Packer/Importer |
RS Components & Controls (I) Ltd |
Package Type |
TOP3 |
Pin Count |
3 |
Repetitive Peak Off-State Current |
0.02 µA |
Repetitive Peak Forward Blocking Voltage |
800 V |
Surge Current Rating |
590 A |
Repetitive Peak Reverse Voltage |
800 V |
Maximum Gate Trigger Current |
200 µA |
Peak On-State Voltage |
1.8 V |
Maximum Gate Trigger Voltage |
1.5 V |
Rated Average On-State Current |
40 A |
