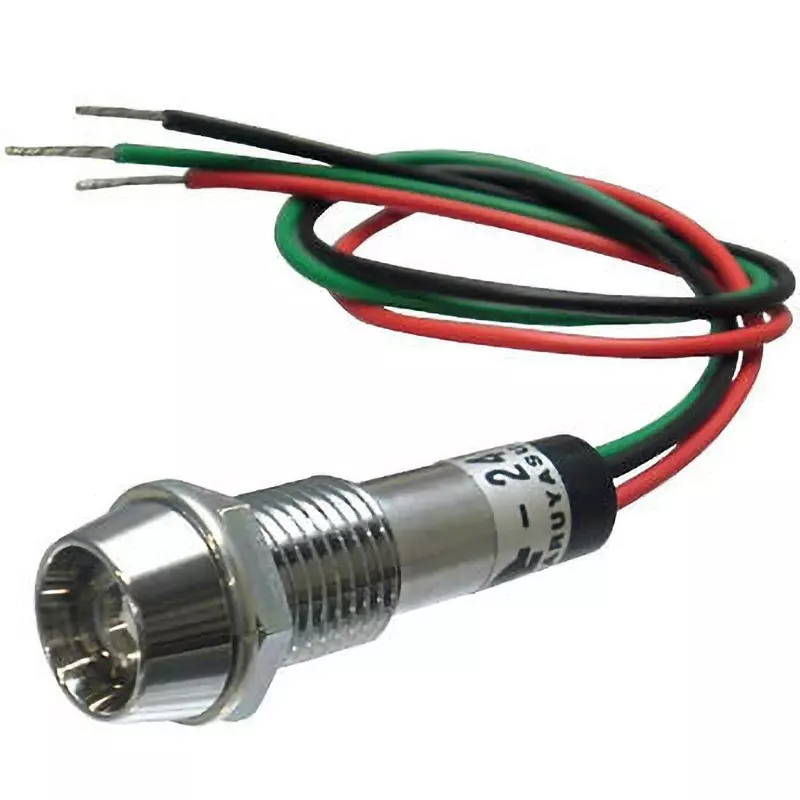

| Type of Product | LED Indicator Light |
| Model No | DB24-19CRGK |
| Light Source | LED |
| Country of Origin | Japan |
Type of Product |
LED Indicator Light |
Model No |
DB24-19CRGK |
Light Source |
LED |
Country of Origin |
Japan |
Shape |
Round |
Type |
LED bracket (built-in resistor) (2-color emission) |
Light Colour |
Red-green |

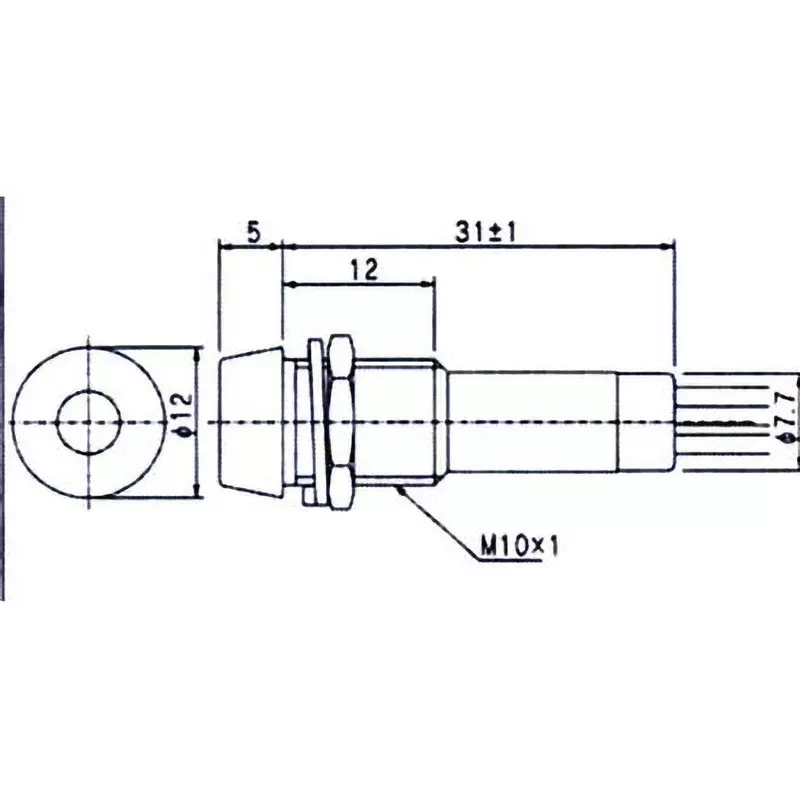

Mounting Hole Diameter (Φmm) |
10.1(+0.2 to 0) |
Rated Voltage (V) |
DC 24 |
Monotaro ID |
37858466 |
Terminal Shape |
Cord terminal |
Current Consumption (mA) |
(Red) 10 (Green) 15 |
Rated Life (Hrs) |
50000 |
Import Country |
Direct Import from Japan |
Lens Color |
Transparent |
Name of Manufacturer/Packer/Importer |
Maruyasu Electric Co., Ltd. |
RoHS Directive |
Correspondence |
Specifications |
Cathode common (common line/black) |
Isolation Voltage |
AC500 V for 1 minute |
Heat Resistance Temperature |
60℃ |
Insulation Resistance (MOhm) |
50 or more (DC500 V) |
Mounting diameter (Φmm) |
10.199999999999999 |
