| Type of Product | LED Indicator Light |
| Model No | 723-9511 |
| Country of Origin | Japan |
| Light Colour | Blue |
Type of Product |
LED Indicator Light |
Model No |
723-9511 |
Country of Origin |
Japan |
Light Colour |
Blue |
Rated Voltage (V) |
24 DC |
Monotaro ID |
48500769 |
Light Bulb |
LED |
Rated Current (mA) |
20 |
Light Bulb Type |
LED |
Length (mm) |
25.5 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
RS Components Co., Ltd. |
Terminal Type |
Lead wire |
Operating Temperature Range |
-40 to +85℃ |
RoHS Directive |
Correspondence |
Specifications |

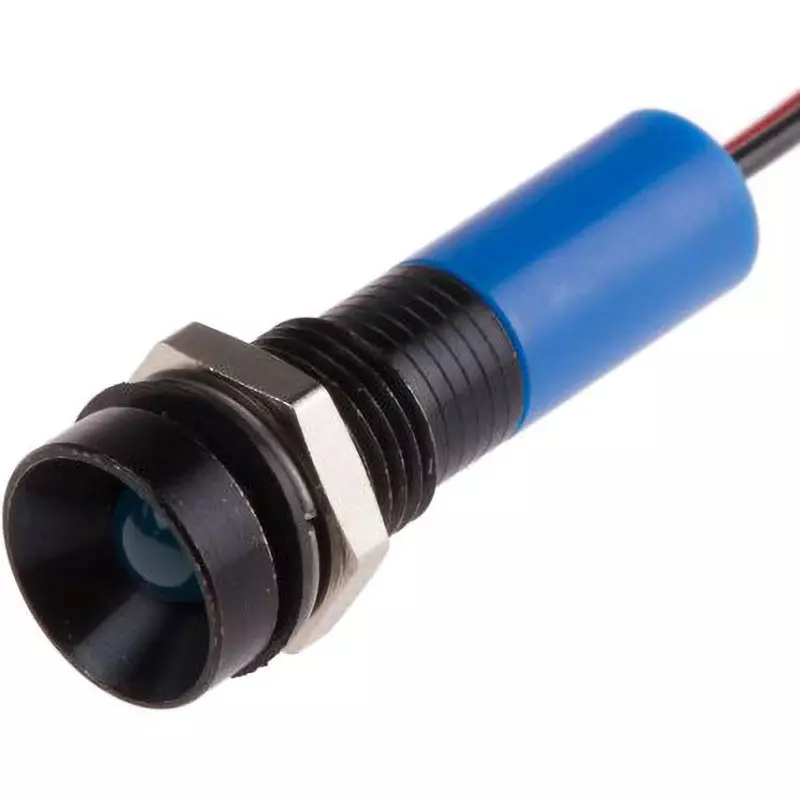

UL listed. Fixing nut, spring washer. LED indicator, 8mm mounting, 12/24Vdc, black chrome bezel, wire. These LEDs are IP67 rated and designed for panel mounting, making them suitable for most environments, including outdoor environments. Their wide temperature range of -40 to +85°C increases the number of potential applications. These 5mm LEDs require an 8mm panel cutout and come with a fixing nut and spring washer. They feature a black chrome bezel and are available in a variety of voltage ratings and bezel styles. 8mm panel-mount LED indicator. 5mm colored diffused epoxy lens or 5mm colorless clear ultra-bright LED. Black chrome bezel. Protruding, recessed, or flush bezel options. 12 to 28Vdc. Wire terminals. IP67 rated sealing. Viewing angle up to 100°. |
Luminous Intensity (mcd) |
90 |
Service Life |
100000 hours |
Bulb Size |
5 mm |
Evaluation |
IP67 |
Bezel Style |
Embedded type |
Mounting Hole (mm) |
8 |
Strength |
90 mcd |
Bezel Color |
Black chrome |
