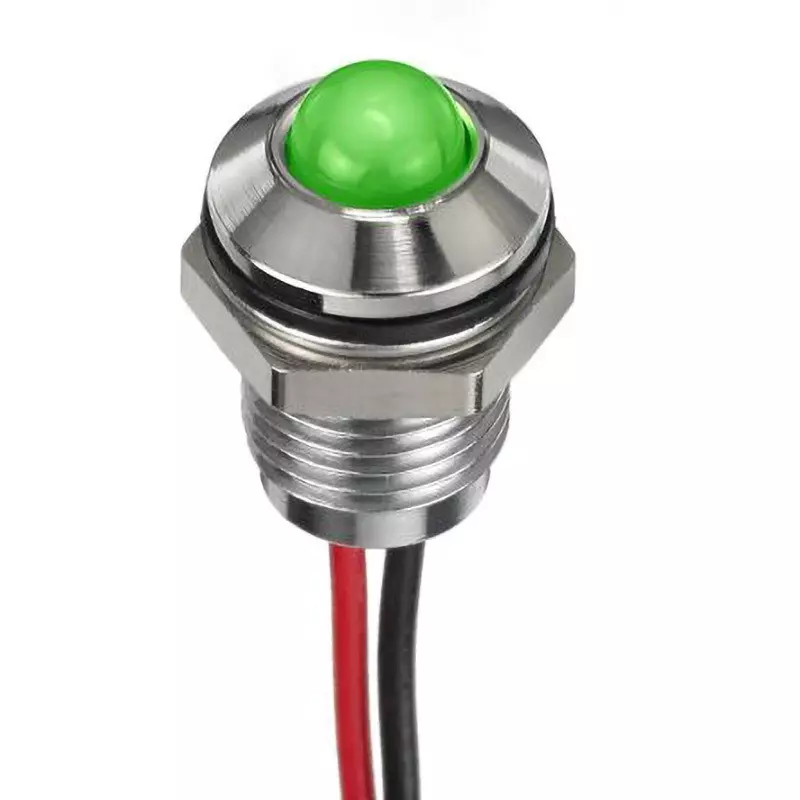

| Type of Product | LED Indicator Light |
| Model No | 132-9099 |
| Country of Origin | Japan |
| Light Colour | Green |
Type of Product |
LED Indicator Light |
Model No |
132-9099 |
Country of Origin |
Japan |
Light Colour |
Green |
Rated Voltage (V) |
1.8-3.3 DC |
Monotaro ID |
48507148 |
Light Bulb |
LED |
Rated Current (mA) |
20 |
Light Bulb Type |
LED |
Length (mm) |
15.6 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
RS Components Co., Ltd. |
Terminal Type |
Lead wire |
RoHS Directive |
Correspondence |
Specifications |
IP67 sealing option (EN60529), UL certified. 8mm rear epoxy sealed IP67 short body LED indicator. RS Pro Q8 series 8mm diameter panel mount short body LED indicator. Features a 5mm color diffused LED. Bezels are available in gloss or black chrome finish, raised and recessed bezel styles. Voltage range is 12 to 24V DC. 2V indicators require an appropriate series resistor for proper operation. The rear end is epoxy sealed and has a 200mm wire. The indicator is IP67 panel sealed and includes a fixing nut and spring washer. Features and Benefits: IP67 panel sealing, epoxy sealed rear end, vibration resistant, diffused lens colored LED, wide viewing angle, 200mm wire termination, UL certified. Applications: Medical, communications, engineering, transportation systems, special vehicles, agricultural vehicles, general purpose outdoor applications. |
Luminous Intensity (mcd) |
1900 |
Bulb Size |
5 mm |
Evaluation |
IP67 |
Bezel Style |
Projection type |
Mounting Hole (mm) |
8 |
Strength |
1900 mcd |
Bezel Color |
chromium |
