| Type of Product | LED Indicator Light |
| Model No | 210-412 |
| Country of Origin | Japan |
| Light Colour | Green, red |
Type of Product |
LED Indicator Light |
Model No |
210-412 |
Country of Origin |
Japan |
Light Colour |
Green, red |
Rated Voltage (V) |
24 DC |
Monotaro ID |
48508146 |
Light Bulb |
LED |
Rated Current (mA) |
20 |
Light Bulb Type |
LED |
Length (mm) |
34.4 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
RS Components Co., Ltd. |
Terminal Type |
Solder tab |
RoHS Directive |
Correspondence |
Specifications |

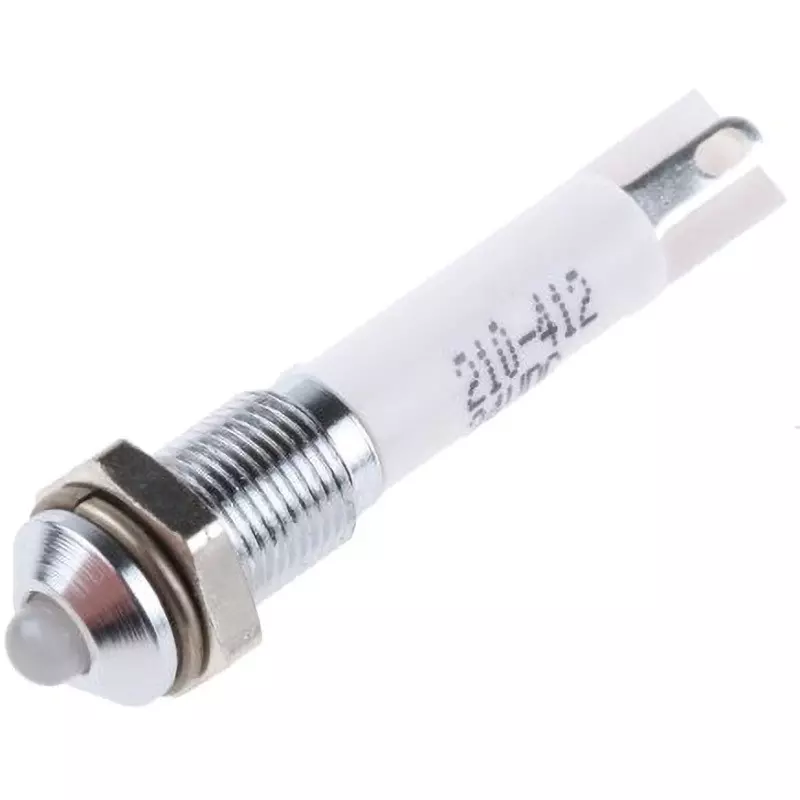

RS Pro 1/4" LED Indicator Tab Terminals. Brought to you by RS Pro, these high-quality indicators are the ideal solution for applications requiring signaling or warning lights. The quality of each indicator and LED ensures high brightness levels and a long lifespan with low power consumption. Each indicator comes with convenient solder lugs for quick and easy installation and termination to suit your application. All models are highly reliable and of excellent quality. Features and Benefits: 1/4" tinted diffused epoxy lens; 1/4" 0.5mm blade termination; solder tab blade terminal; connection tabs are color-coded for polarity (gold +ve, silver -ve); various voltage ratings. Indicator Applications: The use of indicators is entirely up to the user. They can be fixed to circuit boards and attached to push buttons and switches. These types of indicators are primarily used in circuit boards and electronic designs due to their relatively small size compared to other types of indicators, such as car turn signals. Reasons to Choose LEDs: LEDs have many advantages. While long lifespan and low power consumption are key, there are many other reasons. LEDs generate much less heat than incandescent or neon lights. Directional LEDs emit light in only one direction, reducing the need for additional components such as reflectors. However, this does not apply when the LED indicator is used as a signal on a circuit board. Do these LED indicators come with the correct fixings? Each indicator comes with a fixing nut, washer, and gasket. |
Luminous Intensity (mcd) |
15 (green), 20 (red) |
Bulb Size |
3 mm |
Evaluation |
IP67 |
Bezel Style |
Projection type |
Mounting Hole (mm) |
6 |
Strength |
15mcd (green), 20mcd (red) |
Bezel Color |
chromium |
