| Type of Product | LED Indicator Light |
| Model No | 210-743 |
| Country of Origin | Japan |
| Light Colour | Yellow |
Type of Product |
LED Indicator Light |
Model No |
210-743 |
Country of Origin |
Japan |
Light Colour |
Yellow |
Rated Voltage (V) |
230 AC |
Monotaro ID |
48497628 |
Light Bulb |
LED |
Rated Current (mA) |
3 |
Light Bulb Type |
LED |
Length (mm) |
61 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
RS Components Co., Ltd. |
Terminal Type |
tab |
Operating Temperature Range |
-25 +60℃ |
RoHS Directive |
Correspondence |
Specifications |

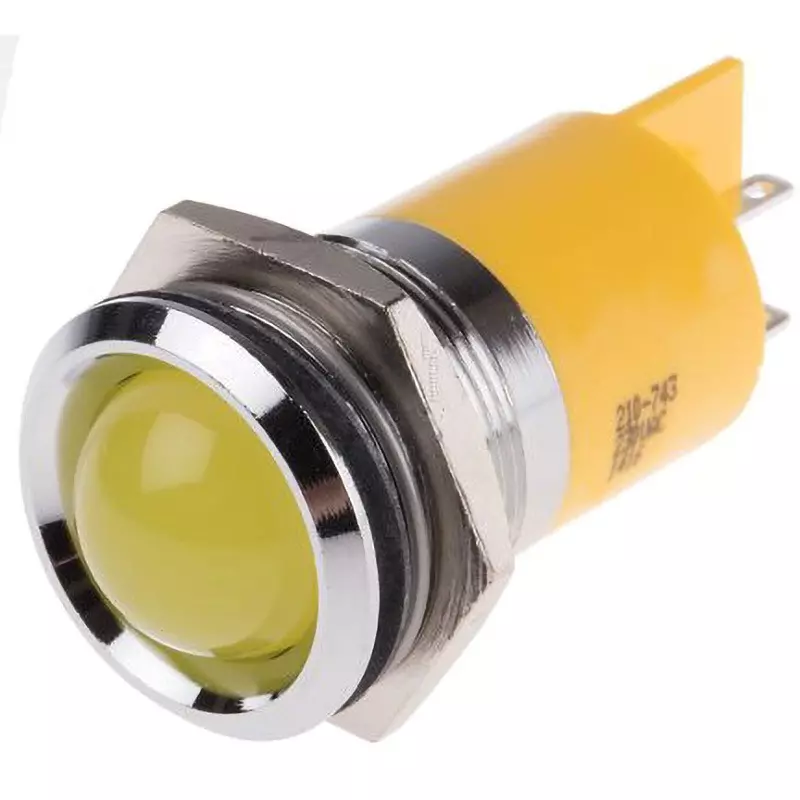

It is recommended to insulate the spare neutral if not used. RS Pro LED Indicator 22mm Mount, IP67. This range of LED indicators from RS Pro is sealed to IP67 and suitable for harsh environments. These compact and robust LED indicators feature a chrome bezel and solder tab terminals for easy installation. These LED indicators are extremely bright, consume low power, and have a long lifespan. All models are highly reliable and of excellent quality. Features and Benefits: 16mm colored diffused lens; 25mm diameter chrome bezel; High brightness; Two negative terminals for daisy chaining; 0.11" (2.8 x 0.8 mm) terminals; 22mm diameter mounting hole. Why Choose LEDs? LEDs are the way to go, as they are enhanced by their long lifespan and low power consumption for superior performance. However, there are a variety of other reasons, including: Temperature: LEDs generate much less heat than incandescent or neon lights. Directionality: LEDs emit light in only one direction, reducing the need for additional components such as reflectors. However, this does not apply when LED indicators are used as signals on circuit boards. Cost: LEDs are generally more readily available than standard bulbs or pilot lights, making them a cost-effective solution in terms of purchase and operation. What protection do these indicators offer? Each LED indicator is IP67 rated. While not completely waterproof, it is fully protected from dust and other small particles. It can also be fully submerged in water (up to 1 meter deep) for up to 30 minutes. How this feature is used varies depending on the application, but as long as the above guidelines are followed correctly, the LEDs will continue to operate smoothly. Indicator Uses: The use of LED indicators is entirely up to the user. They can be fixed to circuit boards and attached to push buttons and switches. These types of indicators are primarily used in circuit boards and electronic designs due to their relatively small size compared to other types of indicators, such as car turn signals. |
Luminous Intensity (mcd) |
60 |
Service Life |
60000 hours |
Bulb Size |
16 mm |
Evaluation |
IP67 |
Bezel Style |
Projection type |
Mounting Hole (mm) |
22 |
Strength |
60 mcd |
Bezel Color |
chromium |
