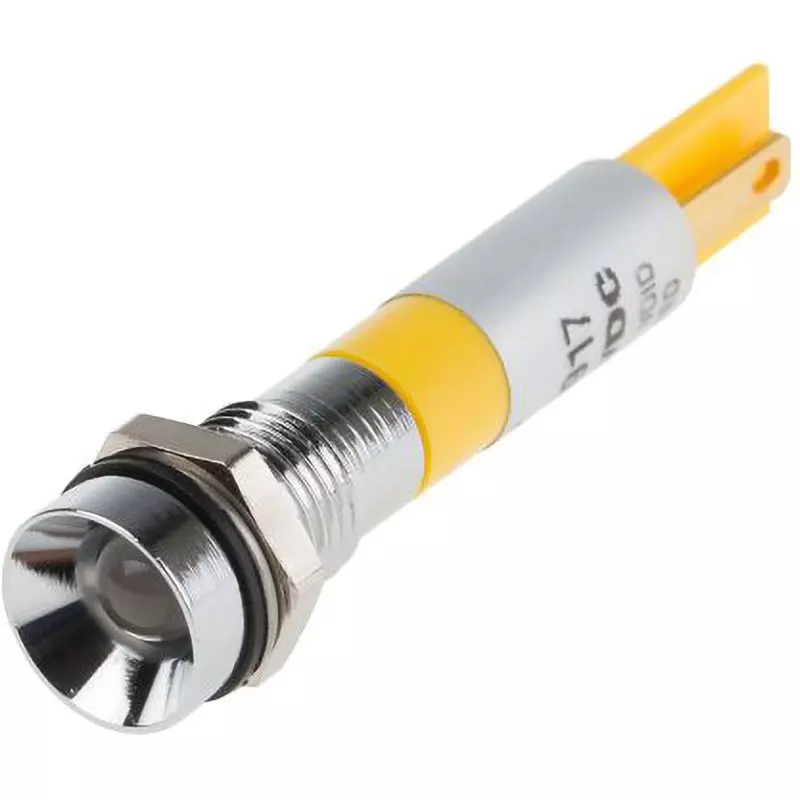

| Type of Product | LED Indicator Light |
| Model No | 212-367 |
| Country of Origin | Japan |
| Light Colour | Yellow |
Type of Product |
LED Indicator Light |
Model No |
212-367 |
Country of Origin |
Japan |
Light Colour |
Yellow |
Rated Voltage (V) |
12 |
Monotaro ID |
48498276 |
Light Bulb |
LED |
Rated Current (mA) |
20 |
Light Bulb Type |
LED |
Length (mm) |
41 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
RS Components Co., Ltd. |
Terminal Type |
Solder tab |
RoHS Directive |
Correspondence |
Specifications |
RS Pro 1/4" LED Indicator, IP67. These indicators from RS Pro offer an excellent solution for warning and caution in related applications. Available in red, yellow, and green. For operational or safety reasons, they can be used to implement some kind of traffic signal system on circuit boards or electrical designs. Each LED indicator is IP67-rated, providing excellent protection and fully functional in indoor and outdoor applications. All models are highly reliable and of excellent quality. Features and Benefits: 1/4" high-contrast tinted diffused epoxy lens, IP67 rating, solder tab terminals, gold terminals (anode +ve), and various voltage ratings. How are these indicators protected? Each model offers excellent protection, as indicated by the IP67 rating. While not completely waterproof, all indicators in this series are fully protected from dust and other small particles. They can also be fully immersed in water (up to 1 meter deep) for up to 30 minutes. How this feature is used will vary depending on the application, but as long as the above guidelines are followed correctly, your LEDs will continue to operate smoothly. Why Choose LEDs? LEDs offer many benefits. While long life and low power consumption are key features, there are many other reasons. Temperature: LEDs generate much less heat than incandescent or neon lights. Directionality: LEDs emit light in only one direction, reducing the need for additional components such as reflectors. However, this does not apply when the LED indicator is used as a signal on a circuit board. Do these LED indicators come with the correct fixings? Each indicator comes with a fixing nut, washer, and gasket. |
Luminous Intensity (mcd) |
40 |
Bulb Size |
5 mm |
Evaluation |
IP67 |
Bezel Style |
Embedded type |
Mounting Hole (mm) |
8 |
Strength |
40 mcd |
Bezel Color |
chromium |
