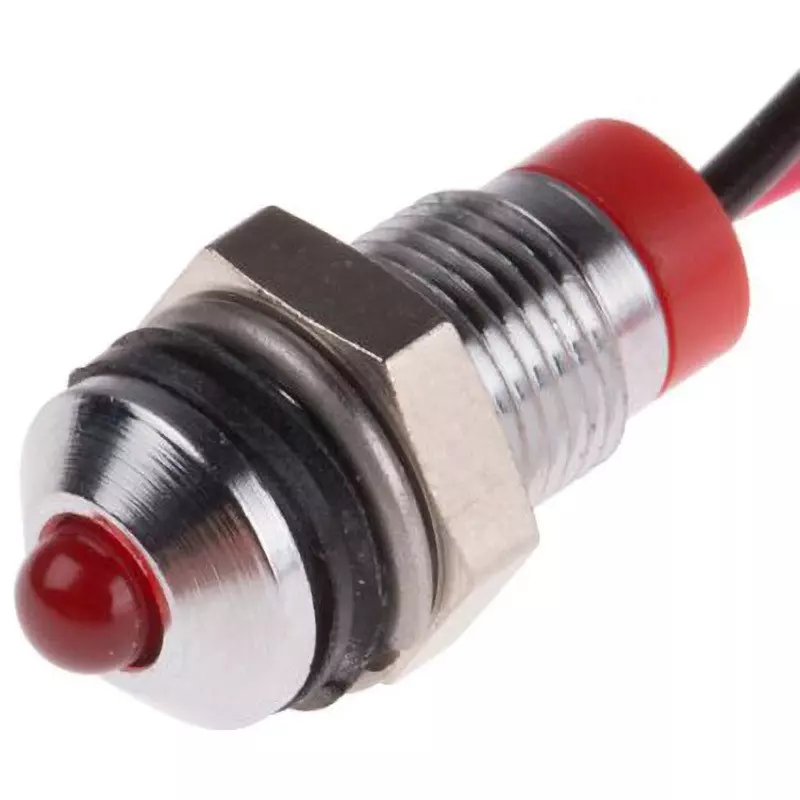

| Type of Product | LED Indicator Light |
| Model No | 722-7671 |
| Country of Origin | Japan |
| Light Colour | Red |
Type of Product |
LED Indicator Light |
Model No |
722-7671 |
Country of Origin |
Japan |
Light Colour |
Red |
Protection Class |
IP67 |
Monotaro ID |
40907178 |
Rated Current (mA) |
20 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
RS Components Co., Ltd. |
Terminal Type |
Lead wire |
RoHS Directive |
Correspondence |
Specifications |
Voltage Rating = 2 V dc Emission Color = Red Mounting Hole Size = 6mm Bulb Size = 3 mm Length = 12 mm Type = Panel Mount Bulb Type = LED Terminal Type = Lead Wire Bezel Style = Protruded Bezel Color = Chrome IP Rating = IP67 Strength = 40 mcd Current Rating = 20 mA UL. Retaining Nuts, Spring Washers. LED Indicators, 6mm Mounting, Wires. These LEDs are IP67 rated and designed for panel mounting so they can be Suitable for the environment. These products cover a wide temperature range of -40 to +85°C, increasing the number of potential applications. These 3 mm LEDs require a 6 mm panel cutout and come with retaining nuts and spring washers. These products have a nominal rating of 2 V dc (no resistor) and an operating voltage Vop of 1.8 (min) to 2.5 V dc (max). Choose from a variety of bezel finishes and bezel styles. 6 mm panel mount LED indicators 3 mm color diffused epoxy lens or 3 mm clear ultra bright LEDs Bright chrome, black chrome or satin gray finish bezels Protruded, recessed and flat bezel types Wire terminations Rated voltage: 2 V dc IP67 sealed structure Viewing angle: Up to 100°Expected life: 100,000 hours Operating temperature range: -40 to +85 °C |
Bulb Size |
3 mm |
Terminal Fitting Type |
Panel Mounting |
