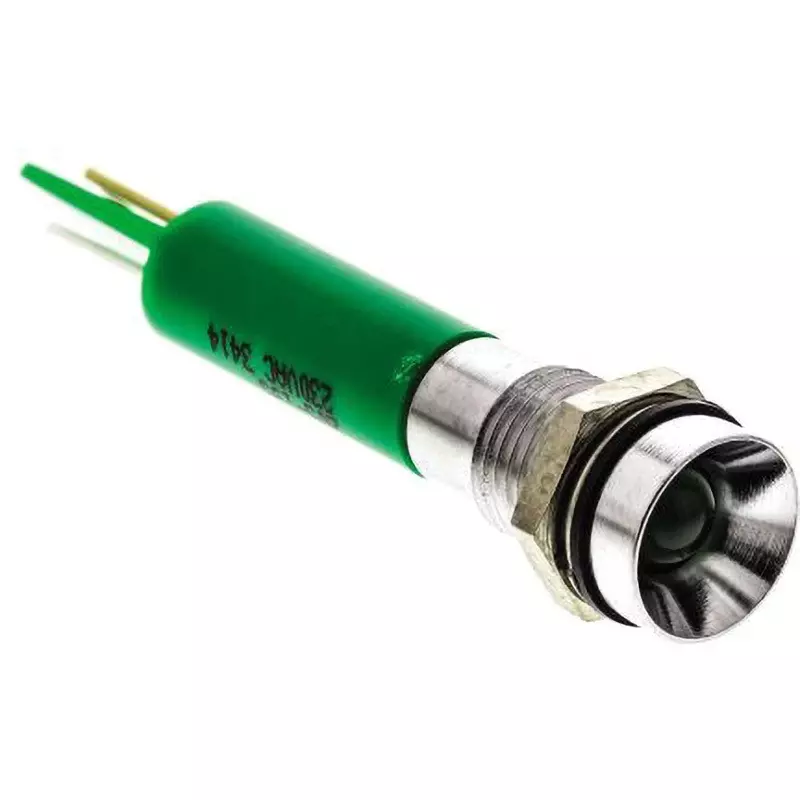

| Type of Product | LED Indicator Light |
| Model No | 205-195 |
| Country of Origin | Japan |
| Light Colour | Green |
Type of Product |
LED Indicator Light |
Model No |
205-195 |
Country of Origin |
Japan |
Light Colour |
Green |
Rated Voltage (V) |
230 AC |
Monotaro ID |
48507744 |
Light Bulb |
LED |
Rated Current (mA) |
3 |
Light Bulb Type |
LED |
Length (mm) |
41 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
RS Components Co., Ltd. |
Terminal Type |
tab |
RoHS Directive |
Correspondence |
Specifications |
RS Pro 8mm LED Indicators. Brought to you by RS Pro, these high-quality indicators are the ideal solution for applications requiring signaling or warning lights. The high quality and reliability of each indicator and LED ensures high brightness levels and a long lifespan with low power consumption. The indicator body features convenient solder lugs for quick and easy installation and termination to suit your application. Features and Benefits: 5mm colored diffused epoxy lens; Choice of red, green, or yellow LED colors; Quick-install solder tab terminals; Available in both black satin and black chrome brass bezels; 2.8mm x 0.8mm terminals; Various voltage ratings. Indicator Applications: The use of indicators is entirely up to the user. They can be fixed to circuit boards and attached to push buttons and switches. These types of indicators are primarily used in circuit boards and electronic designs due to their relatively small size compared to other types of indicators, such as car turn signals. LEDs installed inside devices are reliable and of superior quality. Reasons to Choose LEDs: LEDs offer many advantages. While long life and low power consumption are the main features, there are many other reasons as well: Temperature - LEDs generate much less heat than incandescent or neon lights. Directionality - LEDs only emit light in one direction, reducing the need for additional components such as reflectors. However, this is not the case when LED indicators are used as signals on circuit boards. |
Luminous Intensity (mcd) |
60 |
Bulb Size |
5 mm |
Bezel Style |
Embedded type |
Mounting Hole (mm) |
8 |
Strength |
60 mcd |
Bezel Color |
chromium |
