| Type of Product | LED Indicator Light |
| Model No | 206-895 |
| Country of Origin | Japan |
| Light Colour | Yellow |
Type of Product |
LED Indicator Light |
Model No |
206-895 |
Country of Origin |
Japan |
Light Colour |
Yellow |
Rated Voltage (V) |
24 AC/ DC |
Monotaro ID |
48497156 |
Light Bulb |
LED |
Rated Current (mA) |
20 |
Light Bulb Type |
LED |
Length (mm) |
46 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
RS Components Co., Ltd. |
Terminal Type |
Solder tab |
RoHS Directive |
Correspondence |
Specifications |

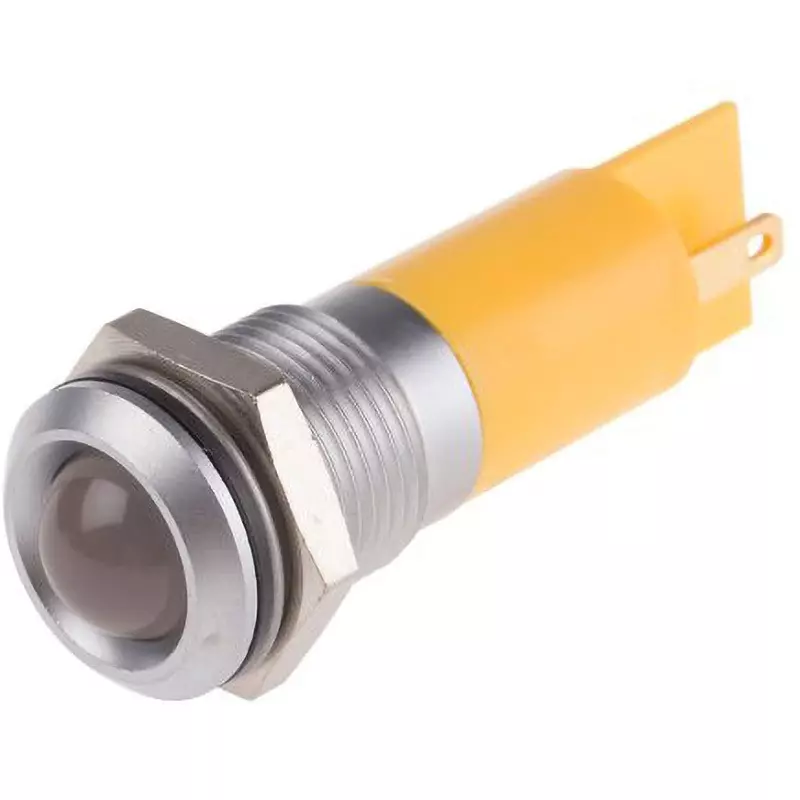

RS Pro 14mm Indicator, IP67. RS Pro brings you a range of high-quality indicators. Each indicator is compact, durable, and features an IP67 rating. Ideal for use in harsh indoor and outdoor environments. Quick and easy installation is a key feature of these indicators. Each unit comes with convenient solder lug terminals. All models are highly reliable and of excellent quality. Features and Benefits: 10mm high-contrast diffused epoxy lens, various voltages, IP67 rating, long life, low power consumption. What protection do these indicators offer? Each model offers excellent protection, as indicated by its IP67 rating. While not completely waterproof, all indicators in this series are fully protected from dust and other small particles. They can also be fully immersed in water (up to 1m deep) for up to 30 minutes. How this feature is used will vary depending on the application, but as long as the above guidelines are followed correctly, your LED will continue to operate smoothly. Why Choose LEDs? LEDs offer many benefits. While long life and low power consumption are key features, there are many other reasons. Temperature: LEDs generate much less heat than incandescent or neon lights. Directional: LEDs emit light in only one direction, reducing the need for additional components such as reflectors. However, this does not apply if the LED indicator is used as a signal on a circuit board. Do these indicators come with fixings? Each indicator comes standard with fixing nuts, washers, and gaskets, making installation quick and easy. |
Luminous Intensity (mcd) |
30 |
Bulb Size |
10 mm |
Evaluation |
IP67 |
Bezel Style |
Projection type |
Mounting Hole (mm) |
14 |
Strength |
30 mcd |
Bezel Color |
Gray |
