Ships within 25 days
View
View
View
View

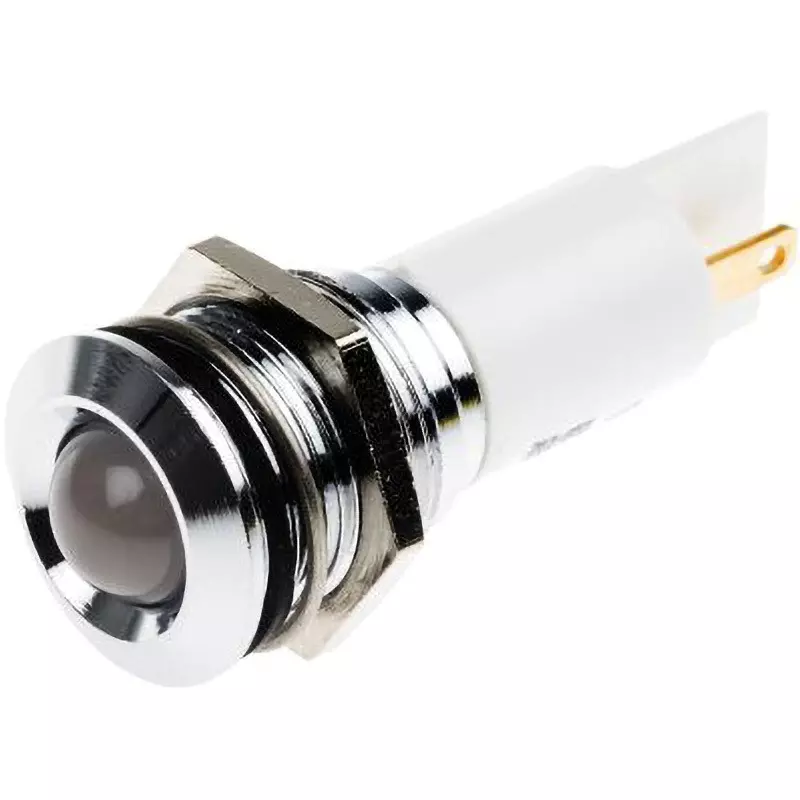

| Type of Product | LED Indicator Light |
| Model No | 203-953 |
| Country of Origin | Japan |
| Light Colour | White |
Type of Product |
LED Indicator Light |
Model No |
203-953 |
Country of Origin |
Japan |
Light Colour |
White |
Rated Voltage (V) |
12 AC/ DC |
Monotaro ID |
48504619 |
Light Bulb |
LED |
Rated Current (mA) |
20 |
Light Bulb Type |
LED |
Length (mm) |
62.5 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
RS Components Co., Ltd. |
Terminal Type |
Solder tab |
Operating Temperature Range |
-25 to +60℃ |
RoHS Directive |
Correspondence |
Specifications |
Fixing nut, washer. Tin-plated connector cathode. LED indicator, 16 mm mounting, 12/24 Vac/dc. 10 mm color diffused round lens or low-profile flat lens type. 18.3 mm, polished chrome or black chrome brass bezel. Mounting hole size 16.2 mm to 16.4 mm. IP67-rated seal. 0.11 inch (2.8 mm x 0.8 mm) terminals. |
Luminous Intensity (mcd) |
350 |
Bulb Size |
10 mm |
Evaluation |
IP67 |
Bezel Style |
Projection type |
Mounting Hole (mm) |
16 |
Strength |
350 mcd |
Bezel Color |
chromium |
