| Type of Product | LED Bulb |
| Model No | 208-655 |
| Country of Origin | Japan |
| Light Colour | Green |
Type of Product |
LED Bulb |
Model No |
208-655 |
Country of Origin |
Japan |
Light Colour |
Green |
Rated Voltage (V) |
24 AC/ DC |
Monotaro ID |
48495975 |
Rated Current (mA) |
17 (DC), 9 (AC) |
Light Bulb Type |
Led |
Length (mm) |
24 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
RS Components Co., Ltd. |
RoHS Directive |
Correspondence |
Specifications |

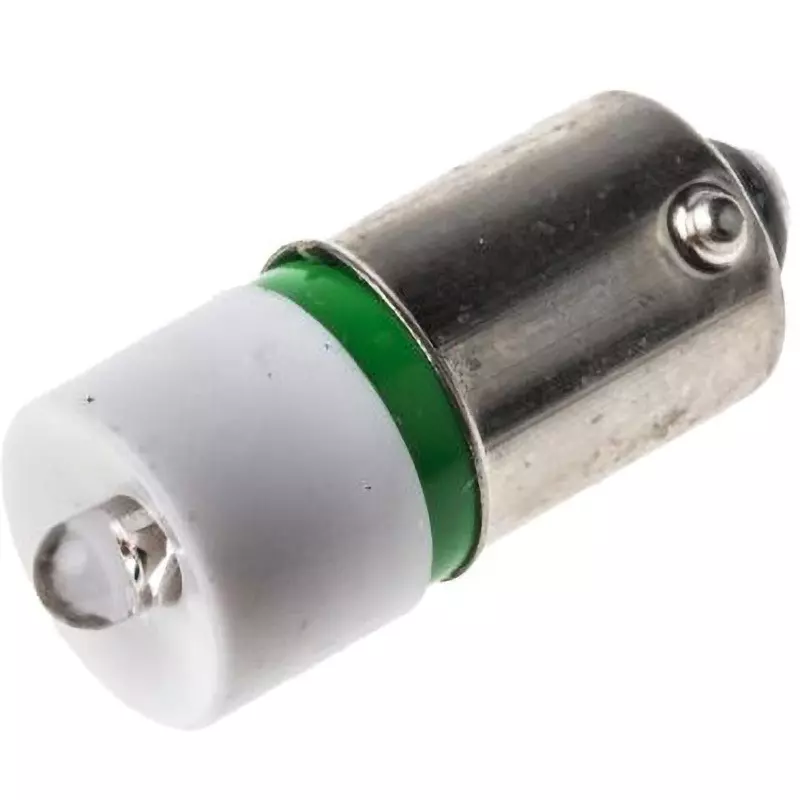

LED Indicator Lamp, BA9s MBC, AC/DC. Brought to you by the trusted RS brand, these BA9 indicator lamps feature a single-chip LED and integrated reflector, optimizing brightness while maintaining low power consumption. These lamps have a convenient bayonet connector for quick and easy installation. Features and Benefits: Single-chip LED with reflector Available in 12, 24, 28, 48, 60 V AC/DC and 130, 230 V AC types The center base contact on the 12, 24, and 28 V types is the anode for dc and has an integrated reverse polarity protection diode The polarity connection on the 48 and 60 V types can be connected to either contact for dc applications |
Luminous Intensity (mcd) |
1610 |
Diameter (Φmm) |
10 |
Chip Type |
Single Chip |
Peak Wavelength |
525 nm |
Service Life |
100000 hours |
Bulb Base |
Ba9S |
