| Type of Product | LED Indicator Light |
| Model No | 130-1100 |
| Country of Origin | Japan |
| Light Colour | Red |
Type of Product |
LED Indicator Light |
Model No |
130-1100 |
Country of Origin |
Japan |
Light Colour |
Red |
Rated Voltage (V) |
12 DC |
Monotaro ID |
48501243 |
Light Bulb |
LED |
Rated Current (mA) |
20 |
Light Bulb Type |
LED |
Length (mm) |
19.399999999999999 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
RS Components Co., Ltd. |
Terminal Type |
Lead wire |
RoHS Directive |
Correspondence |
Specifications |

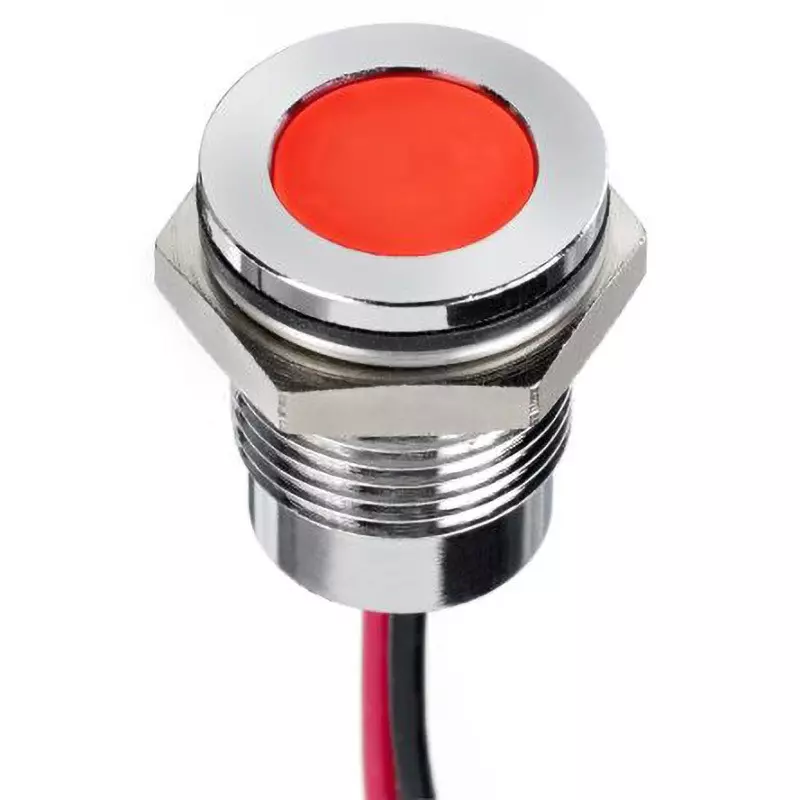

UL certified components. Fixing nut, spring washer. When using 2V DC LED indicators, be sure to use a current-limiting component such as a stable series resistor. 14mm Rear Epoxy Sealed IP67 Short Body LED Indicator. This is a 14mm diameter short body panel-mount LED indicator from RS Pro. It features a 10mm colored diffused LED. The indicator is available in gloss or black chrome bezel finish, raised and recessed bezel styles. Compatible voltages are 2V DC, 12V DC, 24V DC, 110V AC, and 220V AC. It has an epoxy-sealed rear end, 200mm of wire, and is panel sealed to an IP67 rating. Includes fixing nuts and spring washers. Features and Benefits: IP67 panel sealed, epoxy sealed rear end, vibration isolation, colored diffused LEDs, wide viewing angle, wire termination, UL certified 200mm. Applications: Medical, Communications, Engineering, Transportation Systems, Specialty Vehicles, Agriculture Vehicles, General Purpose Outdoor Applications |
Luminous Intensity (mcd) |
800 |
Bulb Size |
10 mm |
Evaluation |
IP67 |
Bezel Style |
Embedded type |
Mounting Hole (mm) |
14 |
Strength |
800 mcd |
Bezel Color |
chromium |
