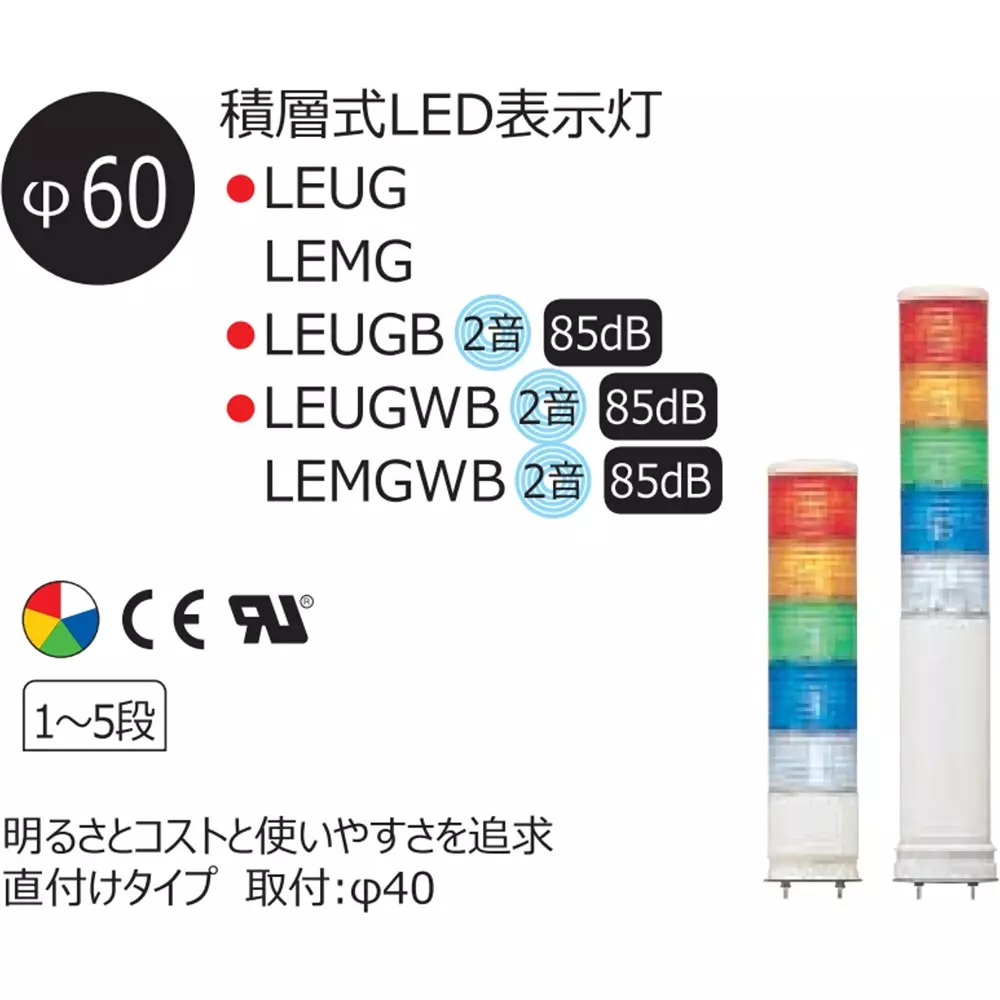

| Type of Product | LED Indicator Light |
| Mounting | Direct attachment |
| Model No | LEUGWB-100-5-RYGBW |
| Material | Globe: Polycarbonate resin |
Type of Product |
LED Indicator Light |
Mounting |
Direct attachment |
Model No |
LEUGWB-100-5-RYGBW |
Material |
Globe: Polycarbonate resin |
Light Source |
LED |
Country of Origin |
Japan |
Rated Voltage (V) |
AC110 |
Protection Class |
IP65 |
Monotaro ID |
46270867 |
Power Consumption (W) |
7.3 |

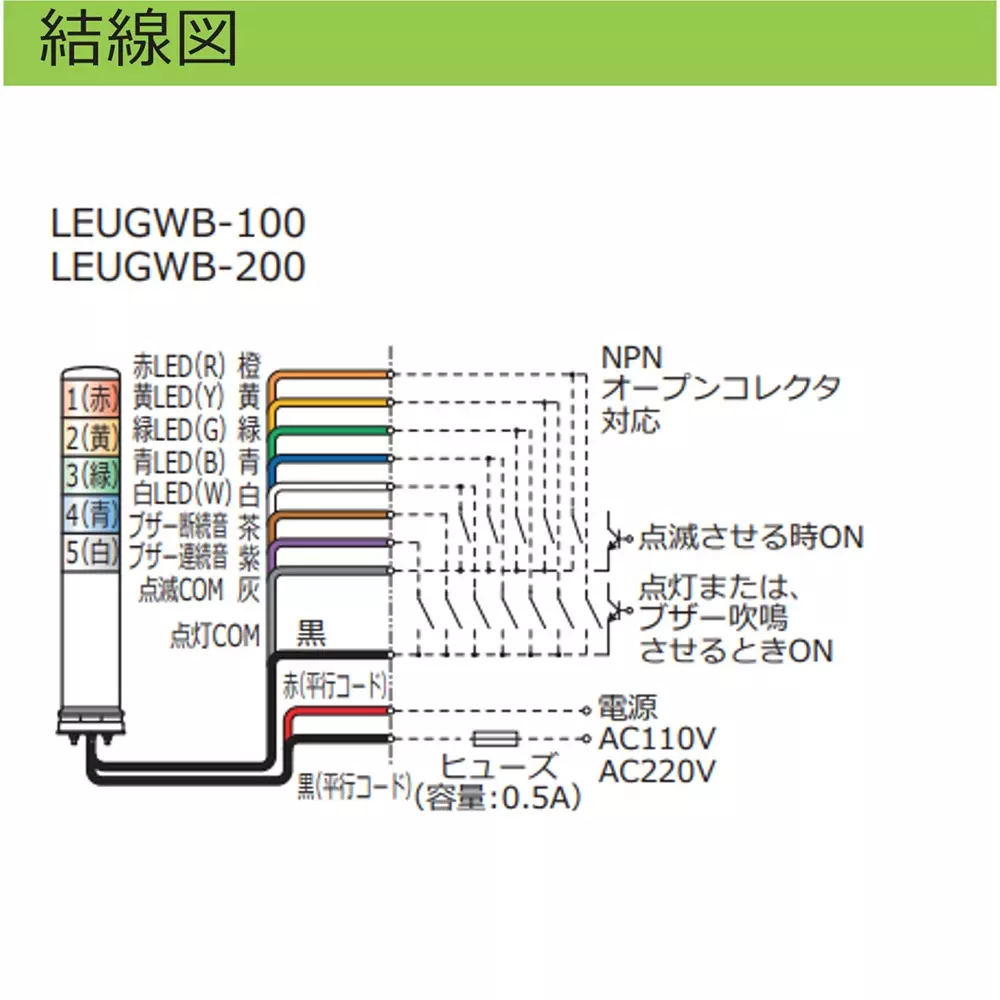

Interface |
NPN open collector |
Mass (Kg) |
0.8 |

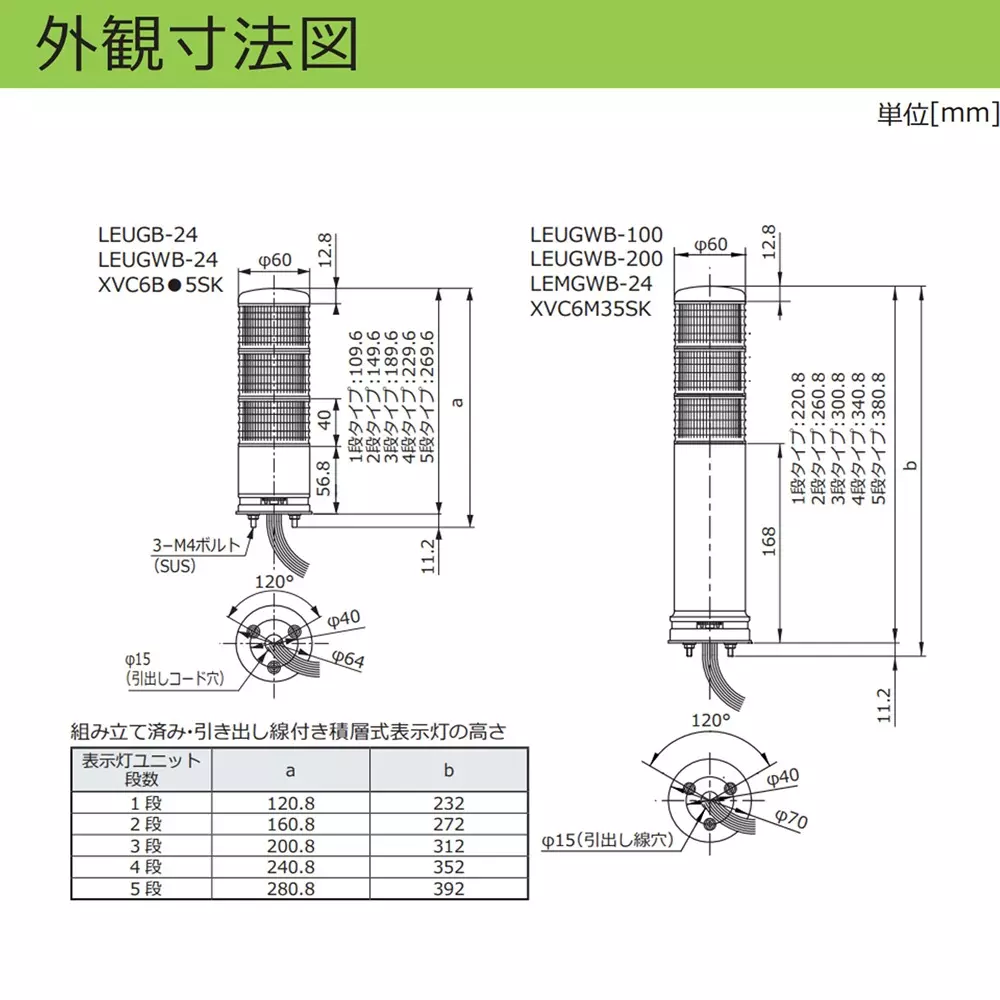

Outer Diameter (Φmm) |
60 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Arrow & Harmony (Schneider Electric) |
Body Material |
ABS resin |
Cover Material |
Upper part: alloy resin |
No. of Tiers |
5 |
Lead Wire Length (mm) |
1250 |
Buzzer Sound |
Continuous / intermittent sound switching |
Contact Capacity |
LED: Power supply voltage over 25mA, Buzzer: Power supply voltage over 100mA |
Flickering |
Speed: 60min <sup>-1</sup> |
Line Type |
Signal line UL1007AWG22, power line VFF0.75mm² x 2 cores |
