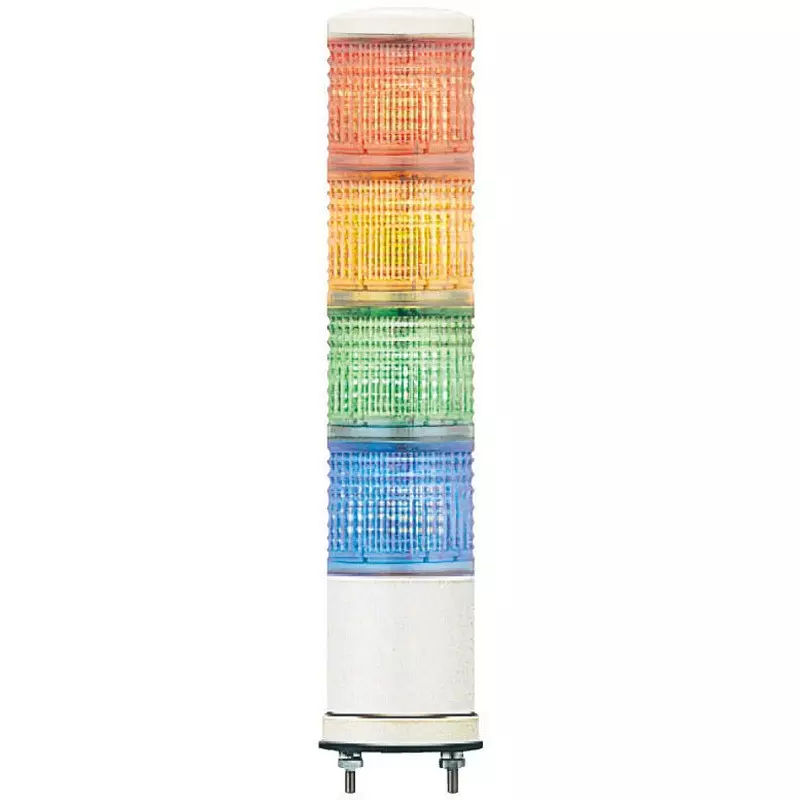

| Type of Product | LED Indicator Light |
| Color | Red, Yellow, Green, Blue |
| Mounting | Direct mounting type |
| Model No | LOUG-24W-4-RYGB |
Type of Product |
LED Indicator Light |
Color |
Red, Yellow, Green, Blue |
Mounting |
Direct mounting type |
Model No |
LOUG-24W-4-RYGB |
Material |
Upper cover/body part: alloy resin Glove: polycarbonate resin |
Light Source |
LED |
Country of Origin |
Indonesia |
Type |
Clear glove type |
Rated Voltage (V) |
AC/DC24 |
Protection Class |
IP65 (when mounted in the forward direction) |
Monotaro ID |
46268898 |
Power Consumption (W) |
2.4 |
Interface |
NPN / PNP open collector |
Mass (Kg) |
0.2 |
Outer Diameter (Φmm) |
40 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Arrow & Harmony (Schneider Electric) |
Standard |
CE compliant product. UL certified product. RoHS compliant product. |
No. of Tiers |
4 steps |
Tone |
No buzzer |
Lead Wire Length (mm) |
1400 |
Contact Capacity |
More than power supply voltage more than 25mA |
Line Type |
Signal line / power line: UL1007AWG22 |
Operations |
Lighting |
Overall Length (mm) |
194 |
