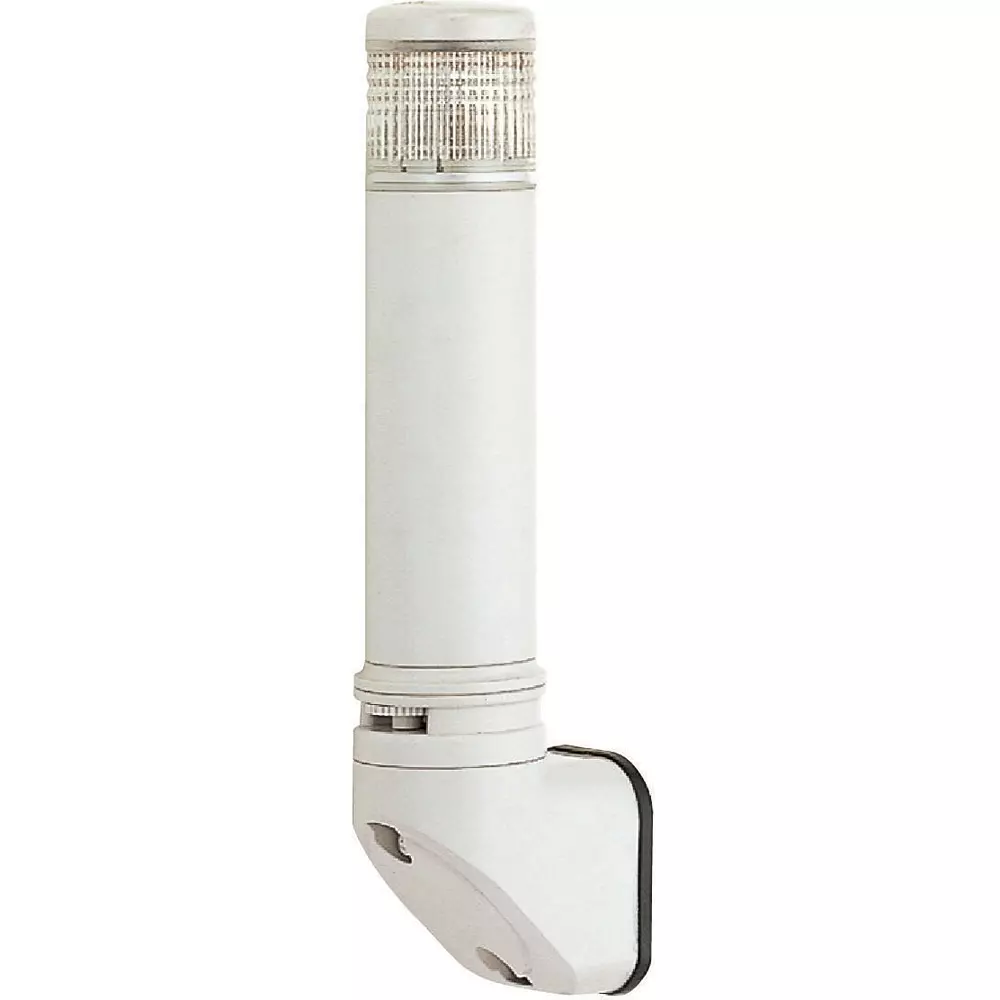

| Type of Product | LED Indicator Light |
| Mounting | Direct attachment |
| Model No | ROMGB-24-3-RYG |
| Material | Globe: Polycarbonate resin |
Type of Product |
LED Indicator Light |
Mounting |
Direct attachment |
Model No |
ROMGB-24-3-RYG |
Material |
Globe: Polycarbonate resin |
Light Source |
LED |
Country of Origin |
Japan |
Rated Voltage (V) |
DC 24 |
Protection Class |
IP65 |
Monotaro ID |
46264086 |
Power Consumption (W) |
Red, yellow 0.6 / green, blue, white 0.5 / buzzer 1 |
Interface |
NPN open collector |
Mass (Kg) |
0.2 |

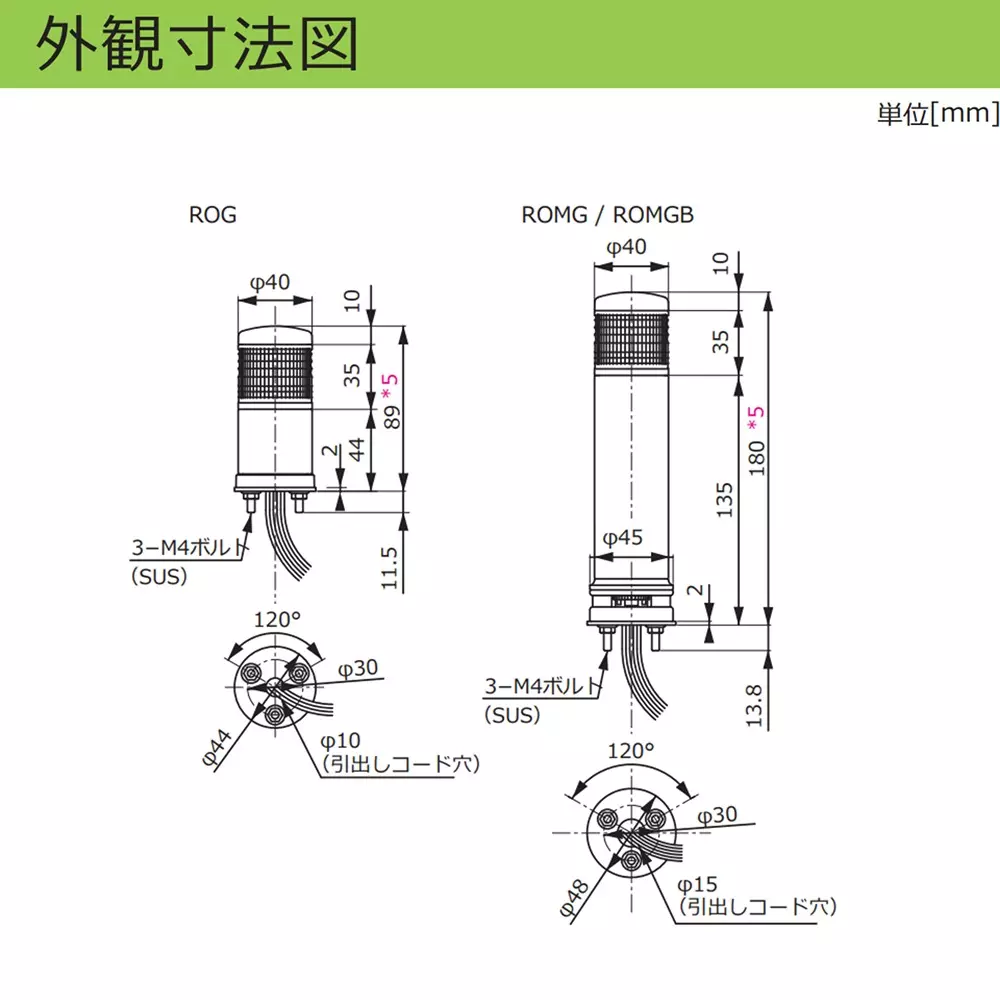

Outer Diameter (Φmm) |
40 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Arrow & Harmony (Schneider Electric) |
Body Material |
ABS/Alloy resin |
Specifications |
Long body |
Standard |
CE compliant product |
Cover Material |
Upper part: alloy resin |
No. of Tiers |
3 |
Lead Wire Length (mm) |
800 |
Buzzer Sound |
Continuous sound |
Contact Capacity |
LED: Red/Yellow: 25mA or more above power supply voltage / Green/Blue/White: 20mA or more above power supply voltage, Buzzer: 100mA or more above power supply voltage |

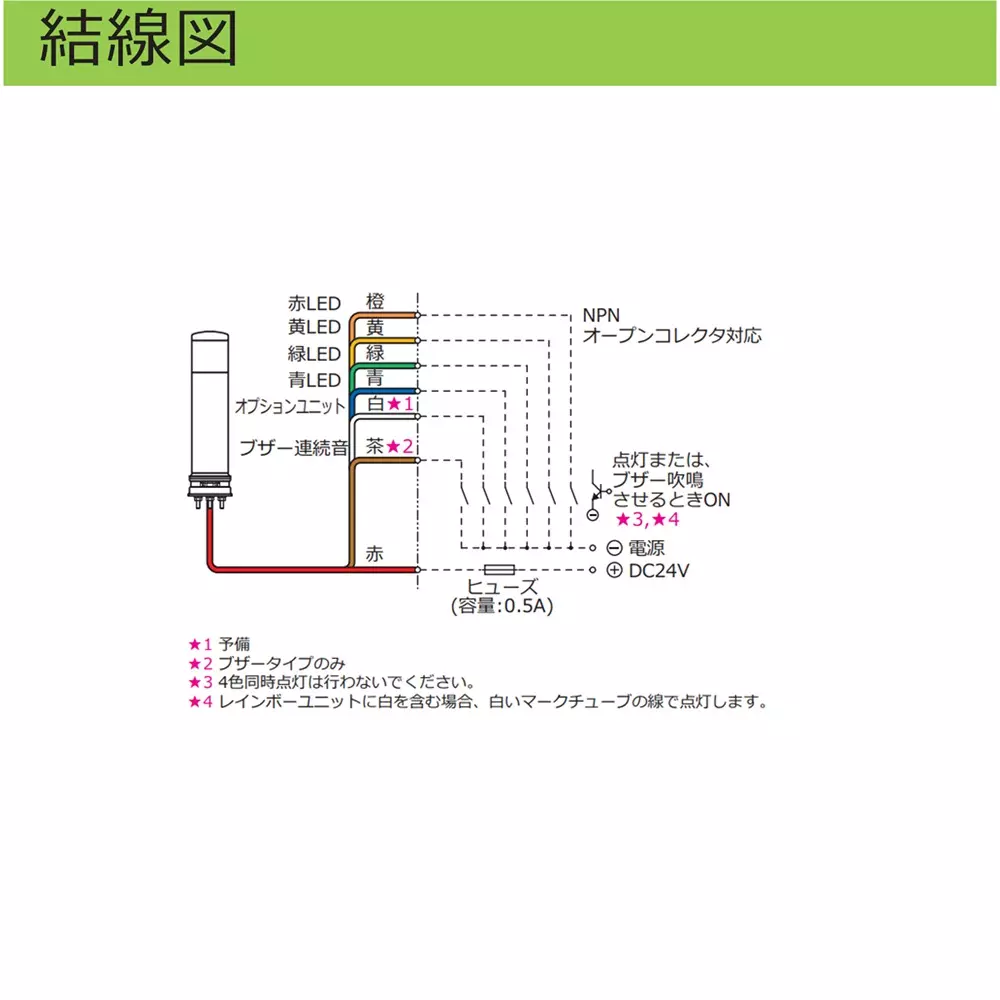

Line Type |
Signal line/power line UL1007AWG22x7 |
