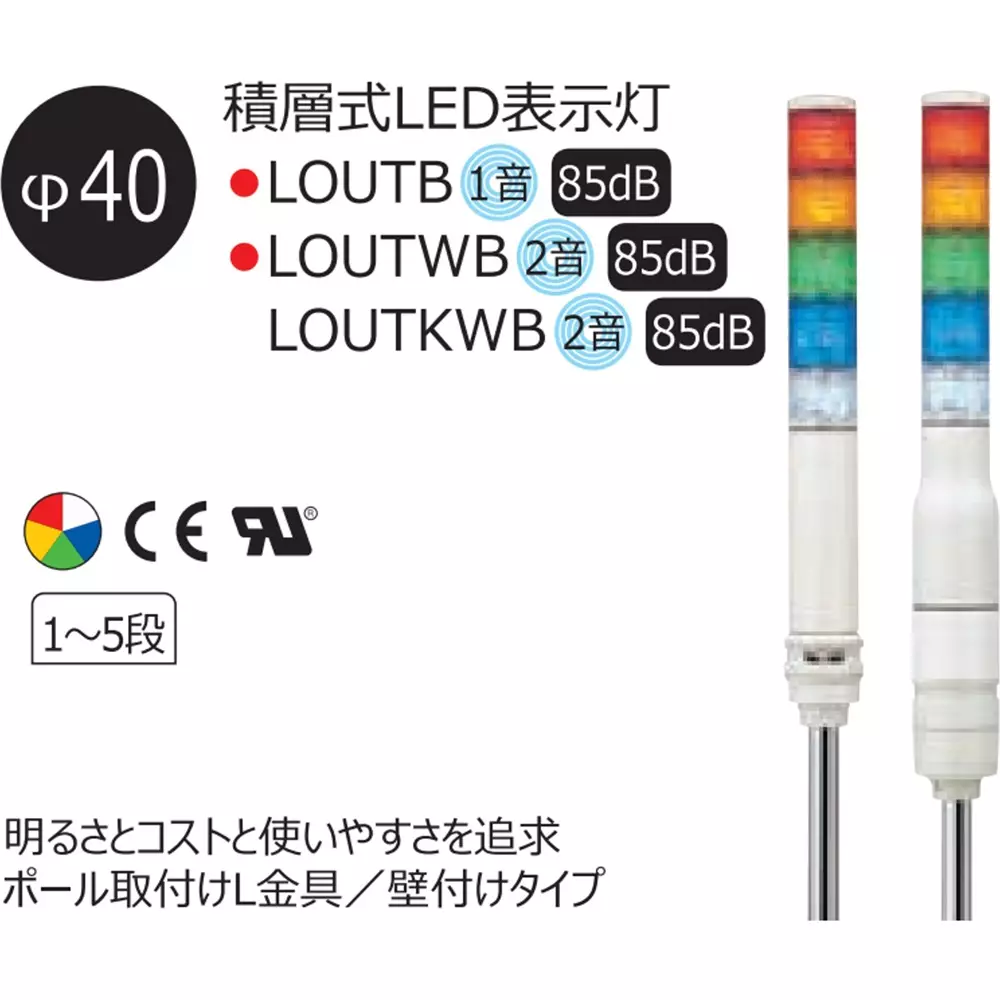

| Type of Product | LED Indicator Light |

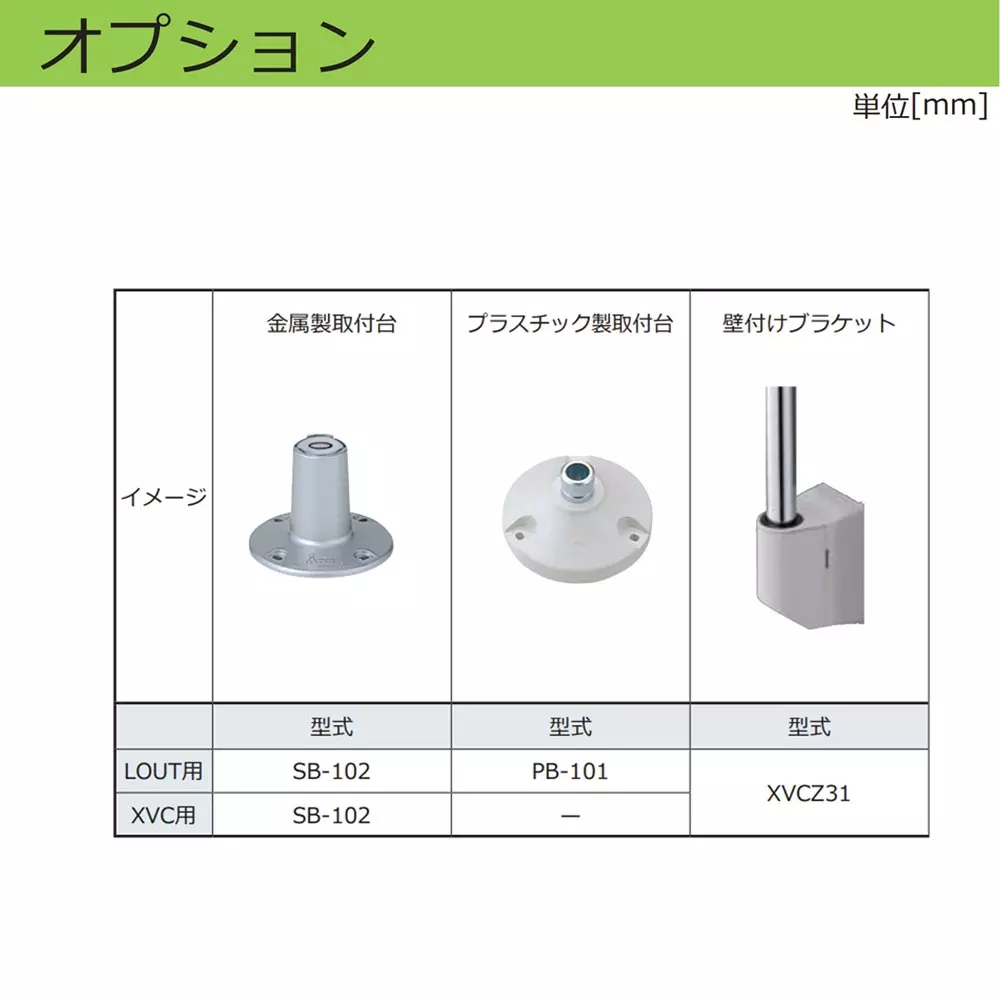

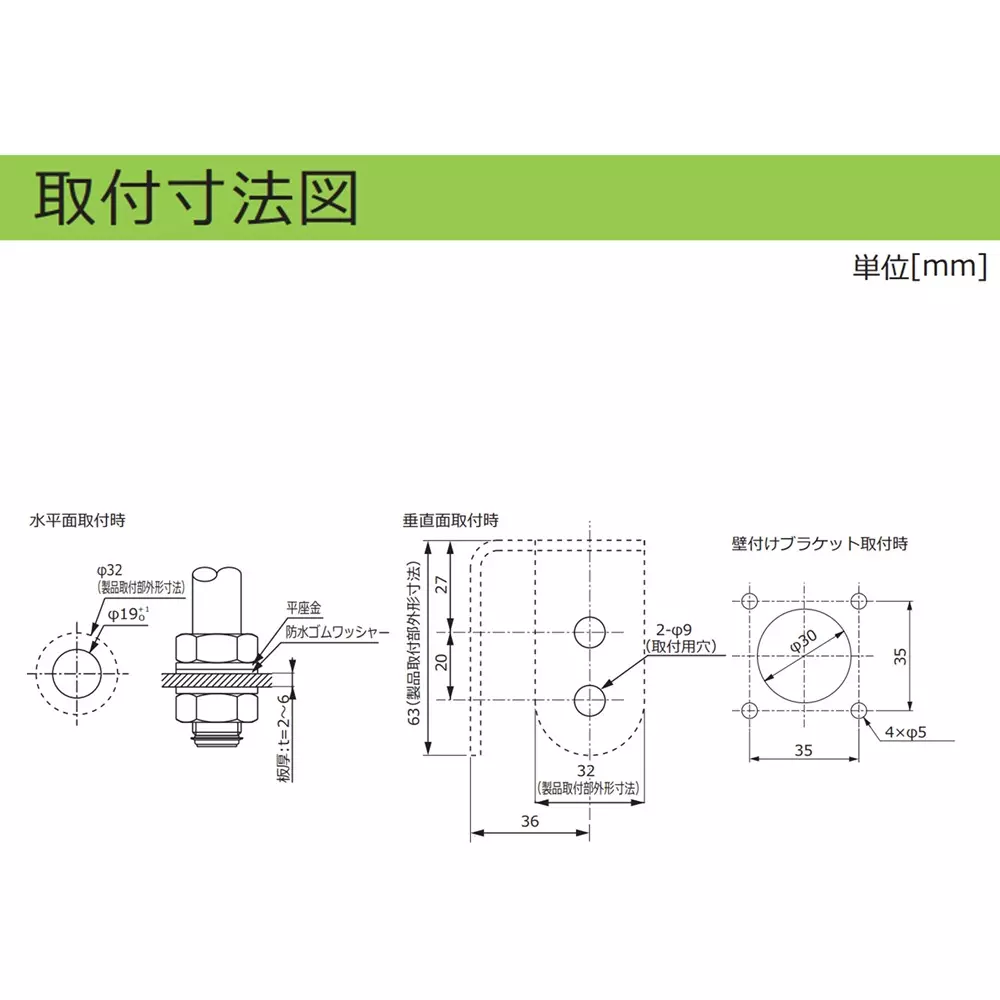

| Mounting | Pole mounting / Standard L bracket |
| Model No | LOUTB-24W-2-RY |
| Material | Globe: Polycarbonate resin |
Type of Product |
LED Indicator Light |
Mounting |
Pole mounting / Standard L bracket |
Model No |
LOUTB-24W-2-RY |
Material |
Globe: Polycarbonate resin |
Light Source |
LED |
Country of Origin |
Japan |
Rated Voltage (V) |
AC/DC24 |
Protection Class |
IP64 (when installed on a horizontal surface) If you use the included L-shaped mounting bracket or optional mounting stand, IP23 |
Monotaro ID |
46267026 |

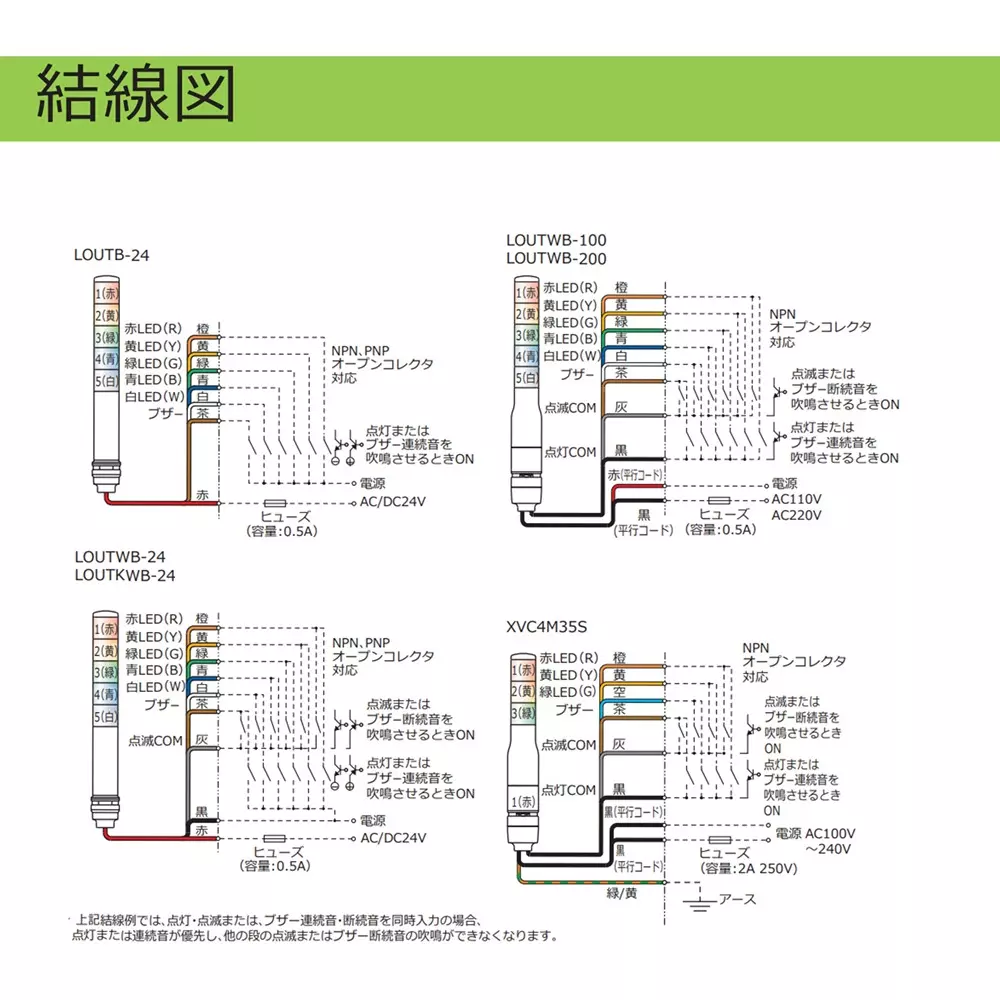

Interface |
NPN, PNP open collector |
Outer Diameter (Φmm) |
40 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Arrow & Harmony (Schneider Electric) |
Body Material |
ABS resin |
Operating Temperature Range |
-30 to 50 ℃ |
Specifications |
Globe type |
Cover Material |
Upper part: alloy resin |
No. of Tiers |
2 |
Lead Wire Length (mm) |
1000 |
Buzzer Sound |
Continuous sound |
Line Type |
Signal line / power line UL1007AWG22 |
