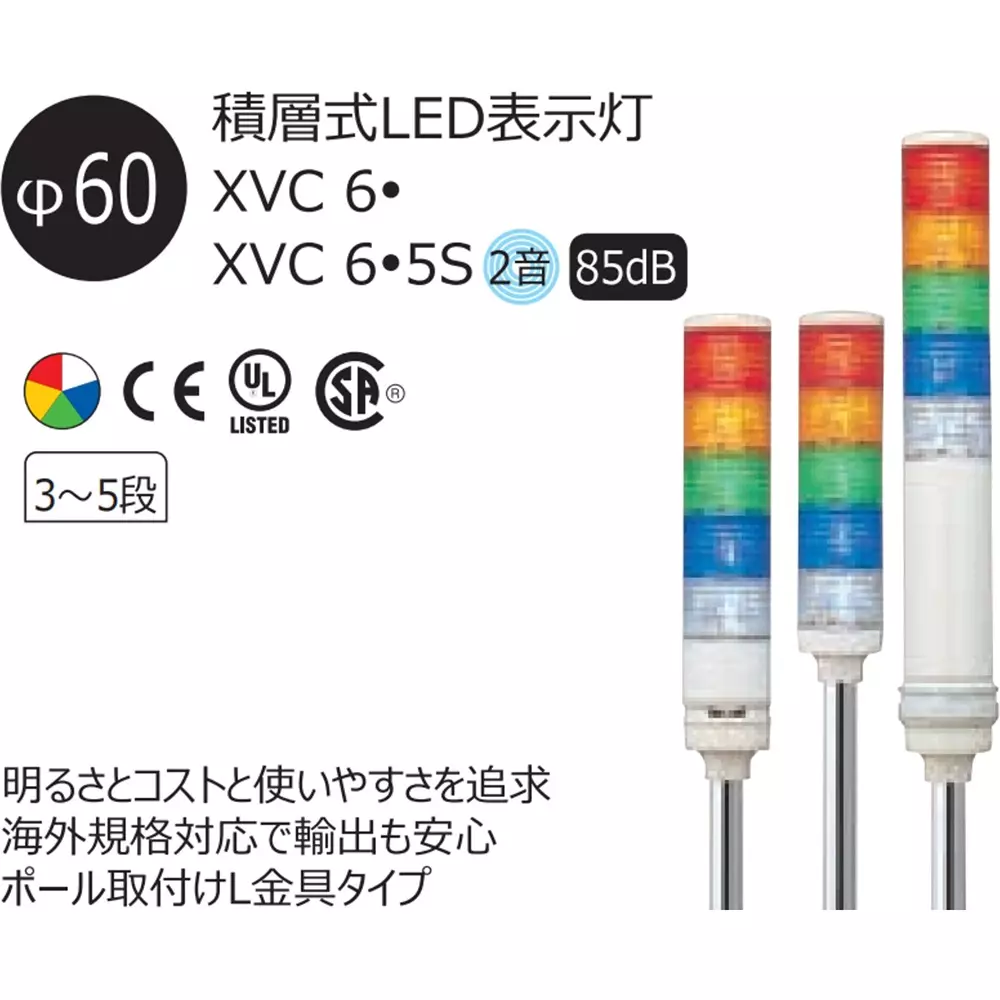

| Type of Product | LED Indicator Light |
| Mounting | Pole mounting / Standard L bracket |
| Model No | XVC6M35S-RYG |
| Material | Globe: Polycarbonate resin |
Type of Product |
LED Indicator Light |
Mounting |
Pole mounting / Standard L bracket |
Model No |
XVC6M35S-RYG |
Material |
Globe: Polycarbonate resin |
Light Source |
LED |
Country of Origin |
Japan |
Rated Voltage (V) |
AC100 to 240 |
Protection Class |
IP54 (when mounted on horizontal surface), IP23 (when mounted on vertical surface) |
Monotaro ID |
46268819 |
Power Consumption (W) |
3.9 |

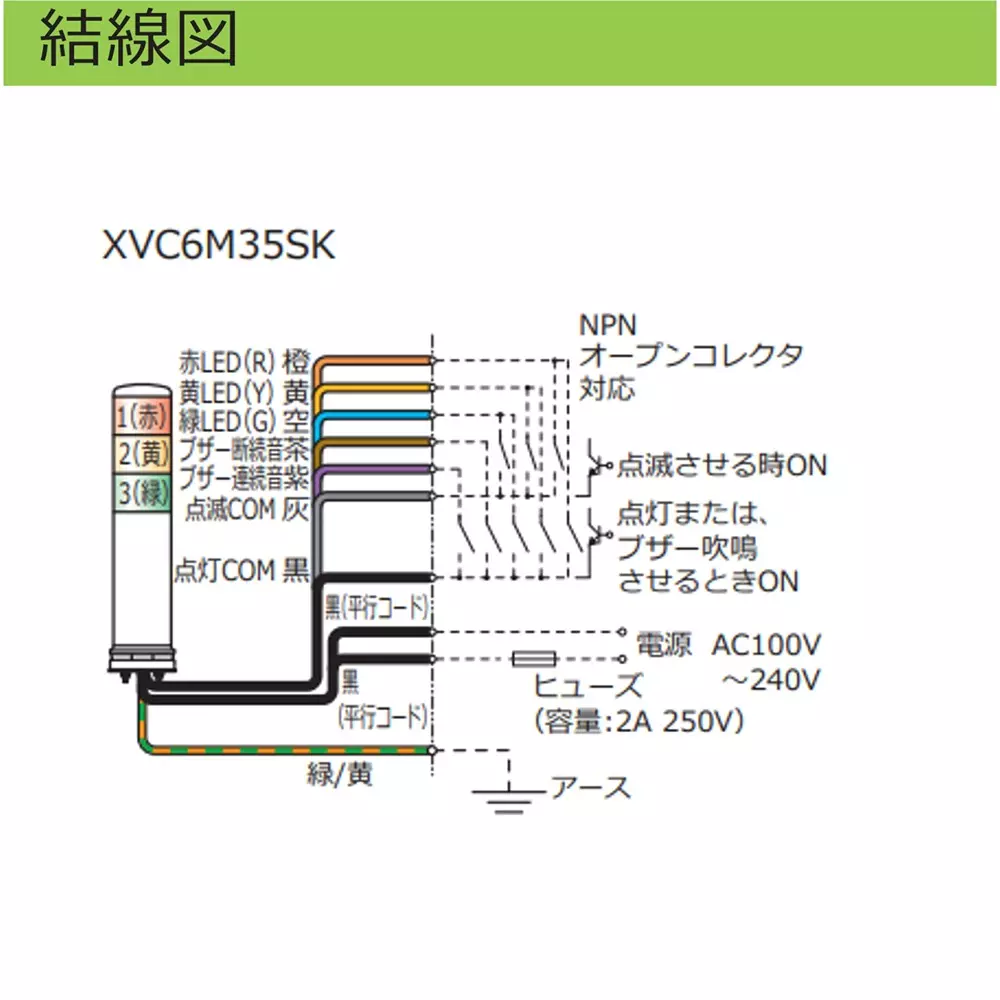

Interface |
NPN open collector |
Mass (Kg) |
1 |

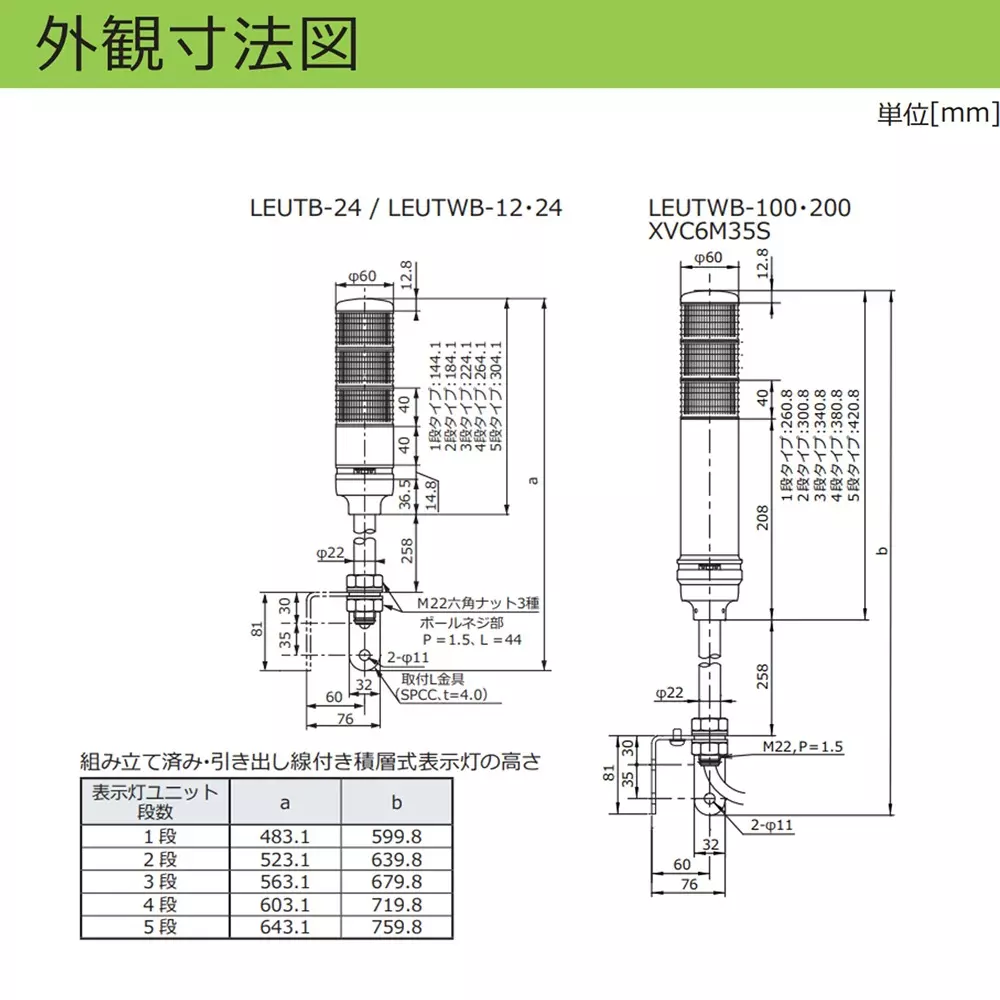

Outer Diameter (Φmm) |
60 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Arrow & Harmony (Schneider Electric) |
Body Material |
Alloy Resin |
Standard |
CE compliant product, UL certified product, CSA certified product |
Cover Material |
Upper part: alloy resin |
No. of Tiers |
3 |
Lead Wire Length (mm) |
450/550 |
Buzzer Sound |
Continuous / intermittent sound switching |
Contact Capacity |
LED: DC24V or more, 25mA or more, Buzzer: DC24V or more, 100mA or more |
Flickering |
Speed: 60min <sup>-1</sup> |
Line Type |
(450mm) Signal line: csa: 1 x 0.33mm² /AWG22 (450mm), (550mm) Power line: csa: 2 x 0.83mm² /AWG18, Earth line: csa: 1 x 0.83mm² /AWG18 |
