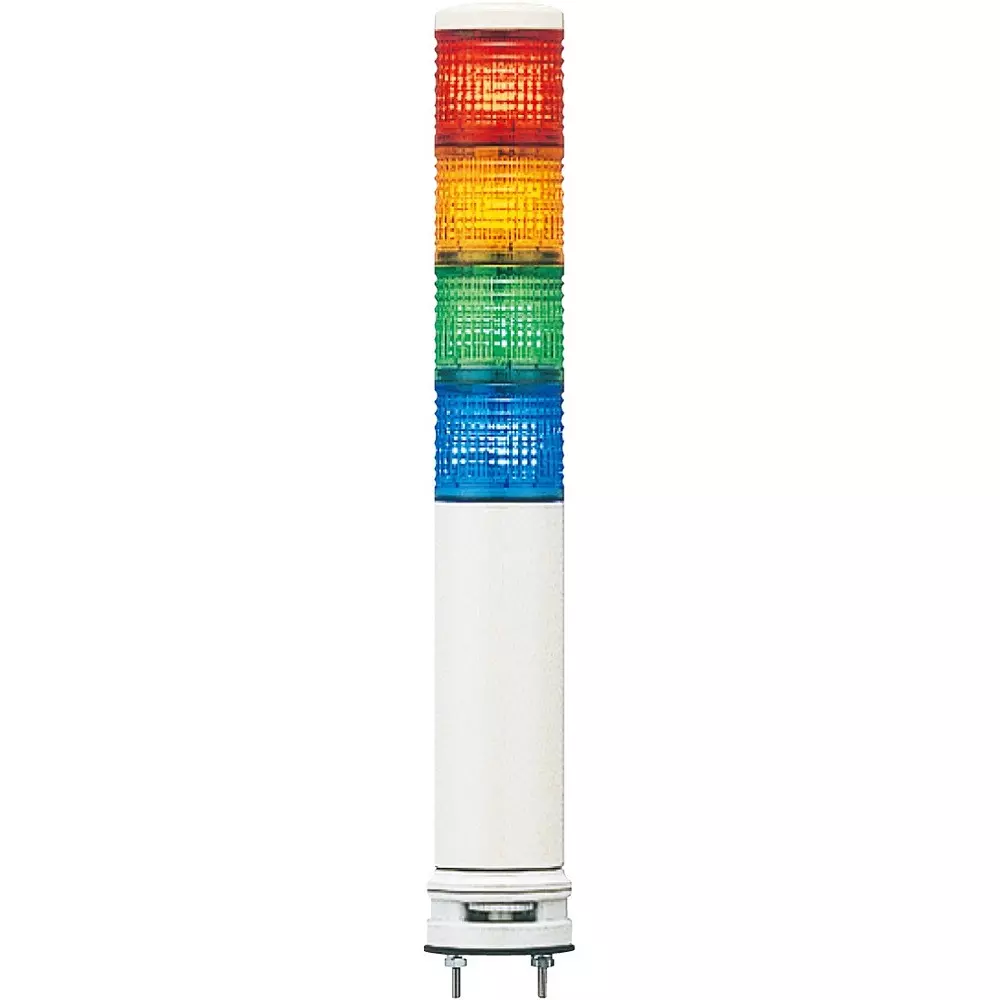

| Type of Product | LED Indicator Light |
| Color | Red Yellow green blue |
| Mounting | Direct mounting type |
| Model No | LOUGB-24-4RYGB |
Type of Product |
LED Indicator Light |
Color |
Red Yellow green blue |
Mounting |
Direct mounting type |
Model No |
LOUGB-24-4RYGB |
Material |
Upper cover: Alloy resin Globe: Polycarbonate resin Body: ABS resin |
Light Source |
LED |
Country of Origin |
Japan |
Rated Voltage (V) |
AC/DC 24 |
Protection Class |
IP65 (when mounted in the forward direction) |
Monotaro ID |
39579847 |
Power Consumption (W) |
3.4 |
Interface |
NPN / PNP open collector |
Mass (Kg) |
0.2 |
Outer Diameter (Φmm) |
40 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Arrow & Harmony (Schneider Electric) |
Standard |
CE compliant product. UL certified product. RoHS compliant. |
No. of Tiers |
4 steps |
Sound Pressure Level (dB) |
Up to 85 (1m forward) |
Lead Wire Length (mm) |
1300 |
Buzzer Sound |
Continuous sound |
Contact Capacity |
LED: Power supply voltage more than 25mA / Buzzer: Power supply voltage more than 100mA |
Line Type |
Signal line / power line: UL1007AWG22 |
Overall Length (mm) |
285 |
