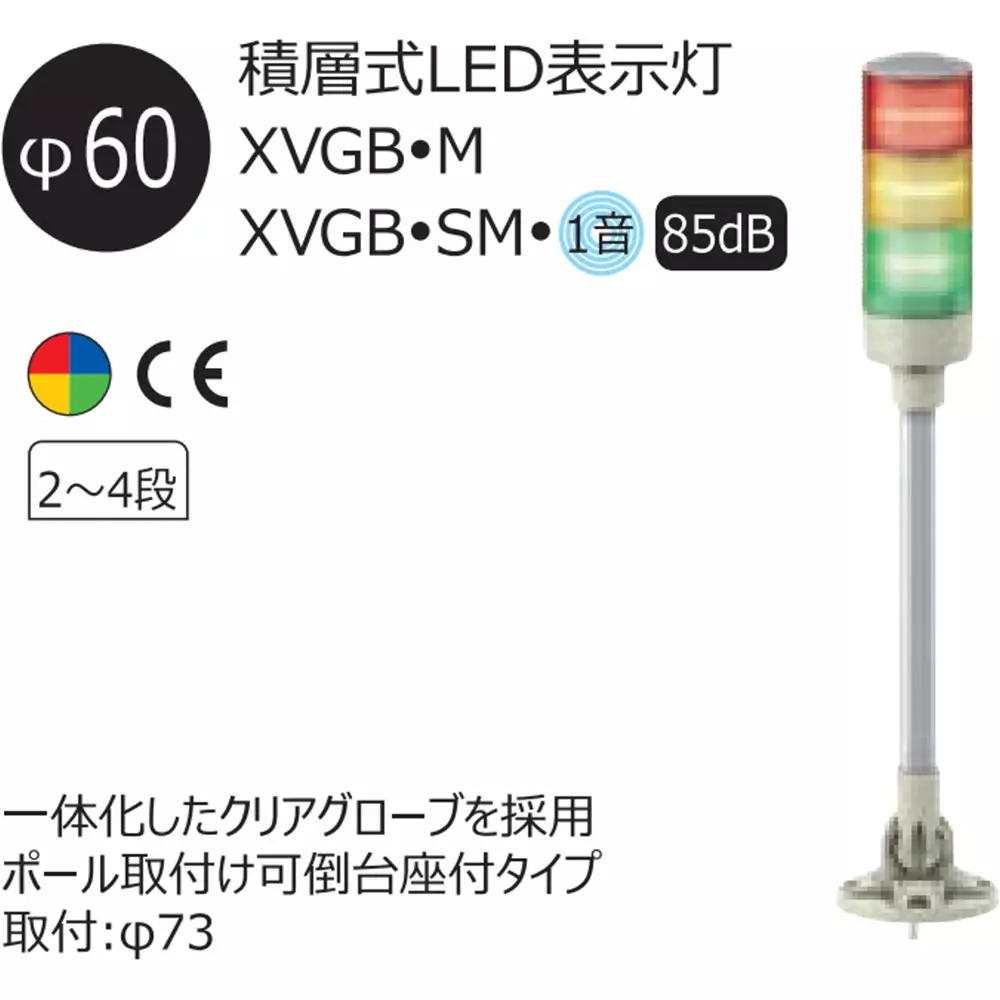

| Type of Product | LED Indicator Light |
| Mounting | Foldable base pole mounting |
| Model No | XVG-RG-B2SM |
| Material | Globe: Polycarbonate resin |
Type of Product |
LED Indicator Light |
Mounting |
Foldable base pole mounting |
Model No |
XVG-RG-B2SM |
Material |
Globe: Polycarbonate resin |
Light Source |
LED |
Country of Origin |
Japan |
Rated Voltage (V) |
AC/DC24 |
Protection Class |
IP40 (when mounted in the forward direction) |
Monotaro ID |
46270097 |
Power Consumption (W) |
2.5 |

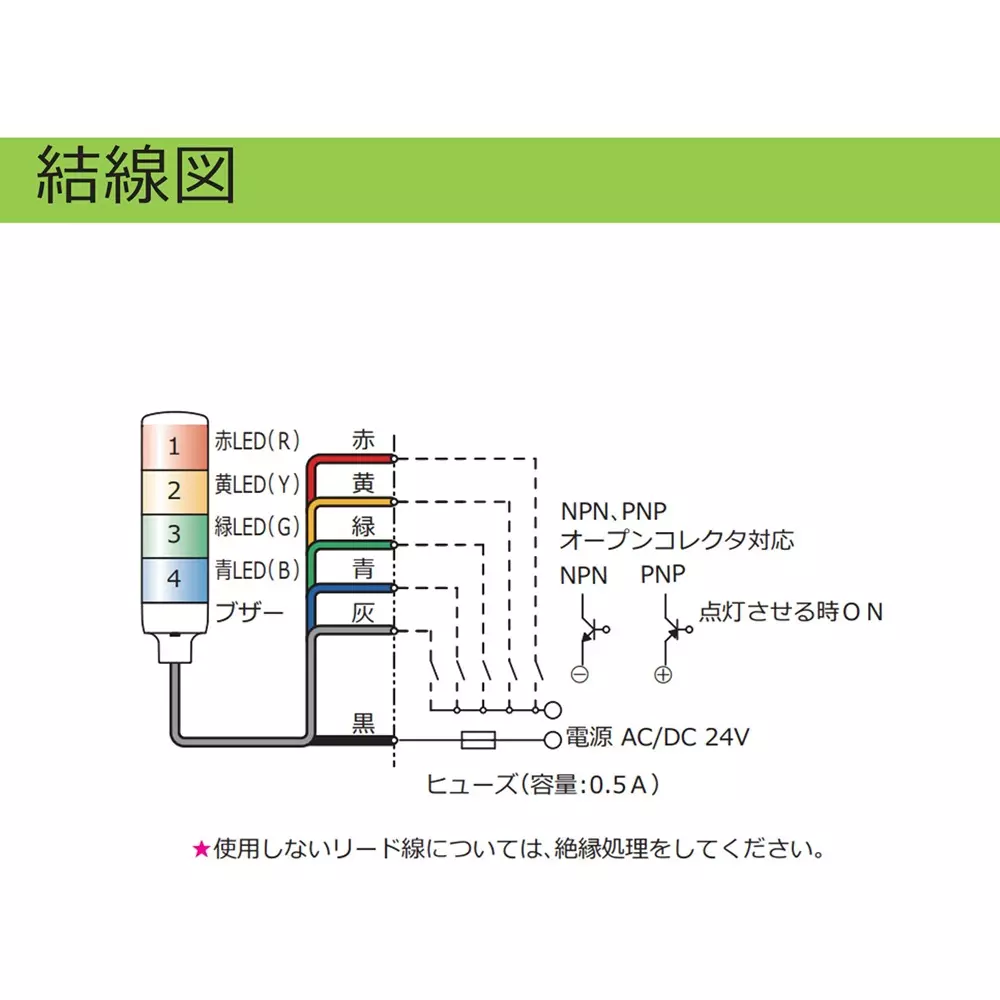

Interface |
NPN, PNP open collector |
Mass (Kg) |
0.4 |
Outer Diameter (Φmm) |
60 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Arrow & Harmony (Schneider Electric) |
Body Material |
ABS resin |

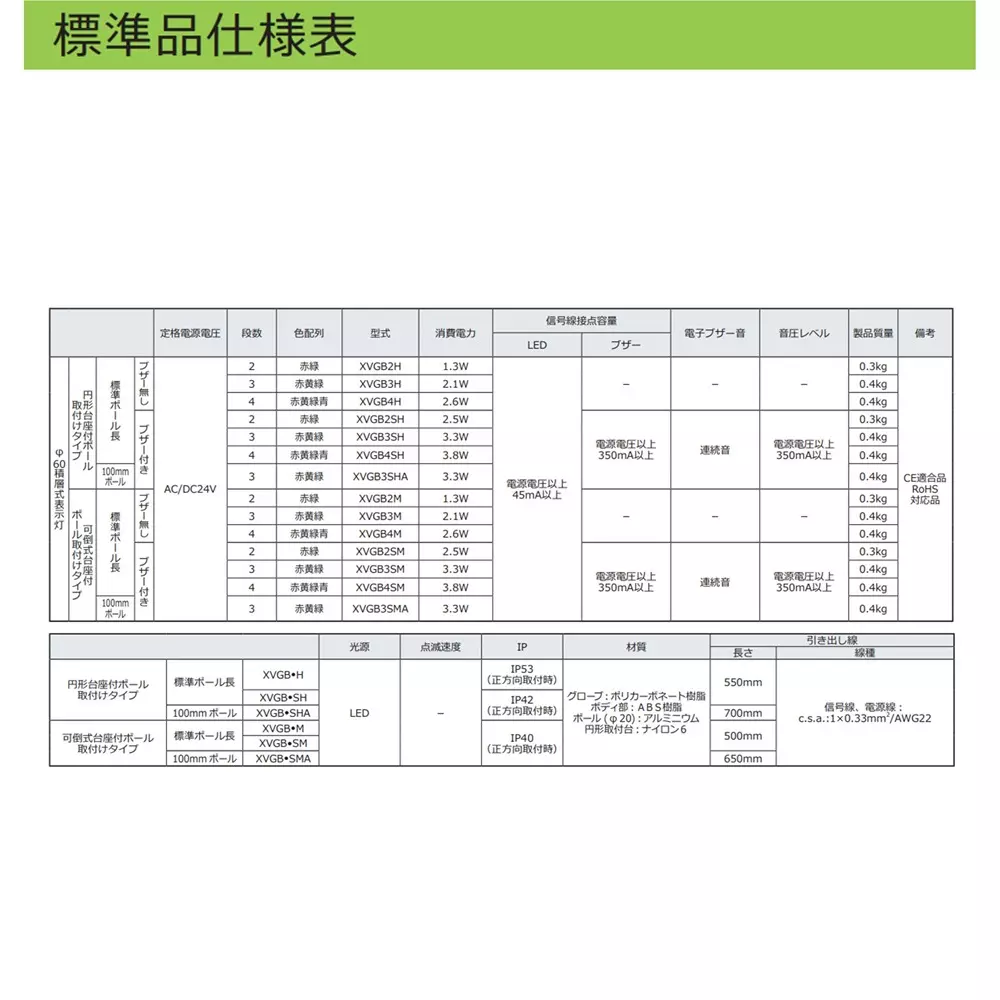

Specifications |
Standard Pole Length |
Standard |
CE compliant product |
No. of Tiers |
2 |
Sound Pressure Level (dB) |
85 |
Lead Wire Length (mm) |
500 |
Buzzer Sound |
Continuous sound |
Contact Capacity |
LED: 45mA or more above power supply voltage, Buzzer: 350mA or more above power supply voltage |
Flickering |
Speed: No blinking |
Line Type |
Signal line, power line: CSA: 1 x 0.33mm² /AWG22 |
Pole Material |
Aluminum (Φ20) |
