| Type of Product | LED Indicator Light |
| Mounting | Pole mounting / Standard L bracket |

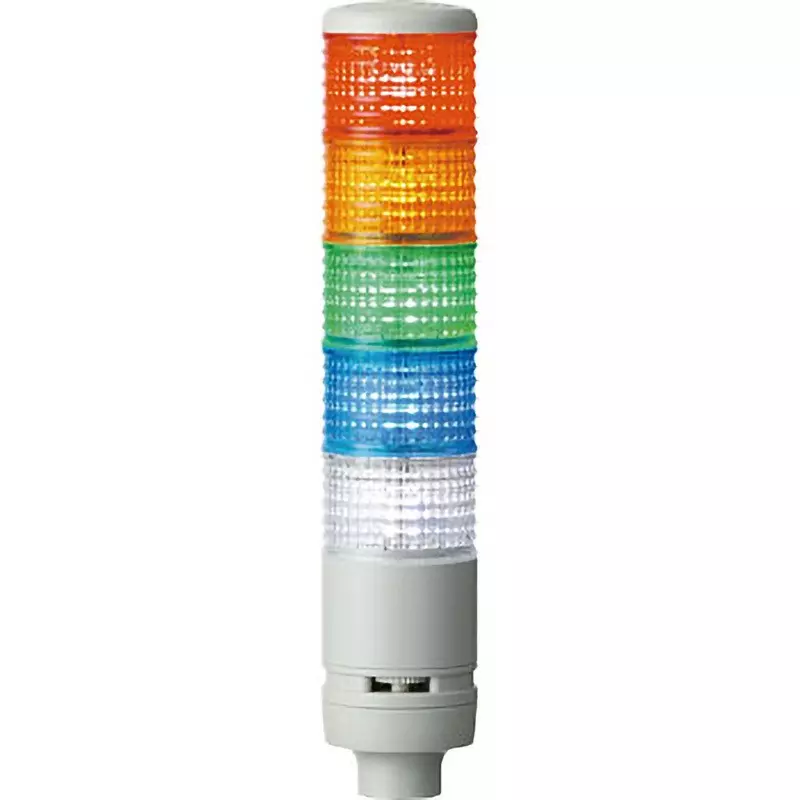

| Model No | LEUTWB-12-2 |
| Material | Globe: Polycarbonate resin |
Type of Product |
LED Indicator Light |
Mounting |
Pole mounting / Standard L bracket |
Model No |
LEUTWB-12-2 |
Material |
Globe: Polycarbonate resin |
Light Source |
LED |
Country of Origin |
Japan |
Rated Voltage (V) |
AC/DC 12 |
Protection Class |
IP64 (when mounted on a horizontal surface) IP23 when using the included L-shaped mounting bracket or optional mounting stand |
Monotaro ID |
46569047 |
Power Consumption (W) |
2.2000000000000002 |
Mass (Kg) |
0.7 |
Outer Diameter (Φmm) |
60 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Arrow & Harmony (Schneider Electric) |
Body Material |
ABS resin |
Specifications |
Laminated type |
Standard |
CE compliant product, UL certified product |
Cover Material |
Upper part: alloy resin |
No. of Tiers |
2 |
Lead Wire Length (mm) |
1050 |
Buzzer Sound |
Continuous / intermittent sound switching |
Contact Capacity |
LED: Power supply voltage over 50mA, Buzzer: Power supply voltage over 600mA |
Flickering |
Speed: 60min <sup>-1</sup> |
Line Type |
Signal line / power line UL1007AWG22 |
Pole Material |
Aluminum (Φ22) |
Installation Height |
184.1 mm |
