| Type of Product | LED Indicator Light |

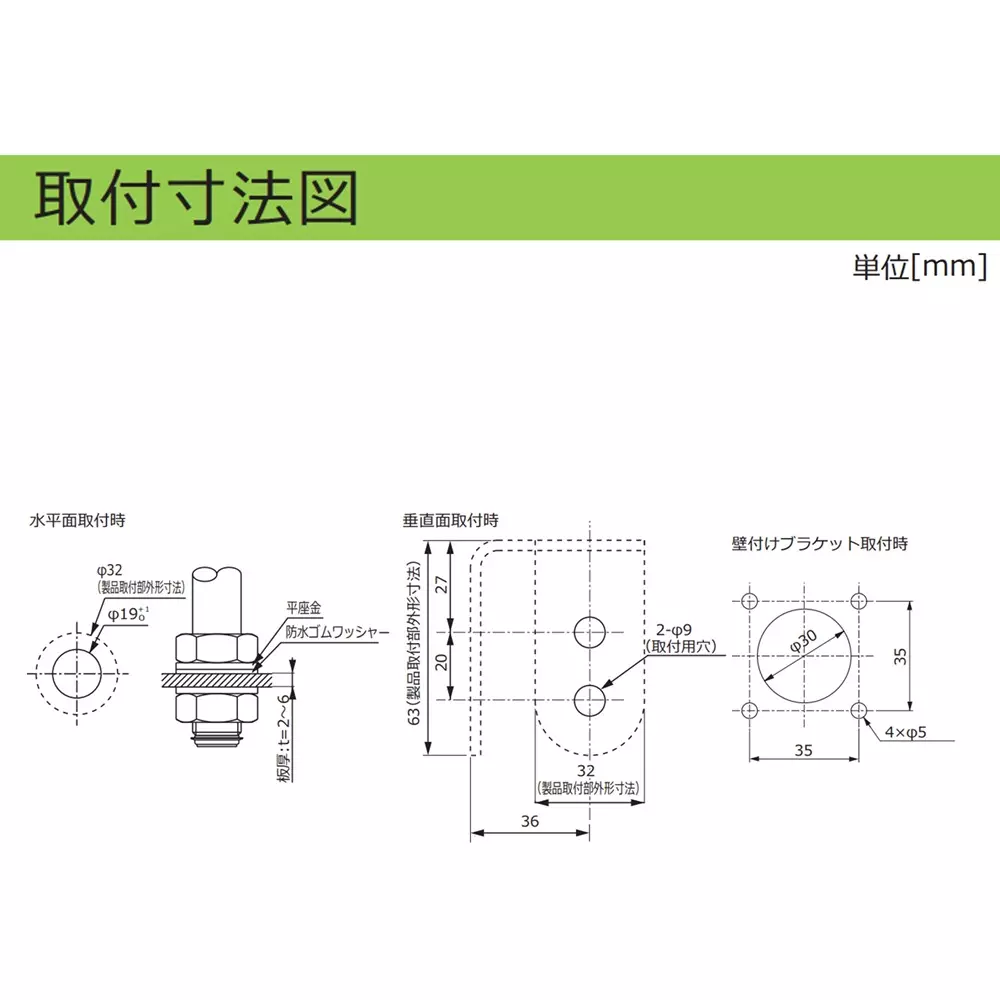

| Mounting | Pole mounting / Standard L bracket |
| Model No | LOUTB-24-2-RY |
| Material | Globe: Polycarbonate resin |
Type of Product |
LED Indicator Light |
Mounting |
Pole mounting / Standard L bracket |
Model No |
LOUTB-24-2-RY |
Material |
Globe: Polycarbonate resin |
Light Source |
LED |
Country of Origin |
Japan |
Rated Voltage (V) |
AC/DC24 |
Protection Class |
IP64 (when installed on a horizontal surface) If you use the included L-shaped mounting bracket or optional mounting stand, IP23 |
Monotaro ID |
46267053 |
Power Consumption (W) |
2.2000000000000002 |
Interface |
NPN, PNP open collector |
Mass (Kg) |
0.5 |
Outer Diameter (Φmm) |
40 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Arrow & Harmony (Schneider Electric) |
Body Material |
ABS resin |
Operating Temperature Range |
-30 to 50 ℃ |
Standard |
CE compliant product, UL certified product |
Cover Material |
Upper part: alloy resin |
No. of Tiers |
2 |
Lead Wire Length (mm) |
1000 |
Buzzer Sound |
Continuous sound |
Contact Capacity |
LED: Power supply voltage over 25mA, Buzzer: Power supply voltage over 100mA |
Flickering |
Speed: No blinking |
Line Type |
Signal line / power line UL1007AWG22 |
