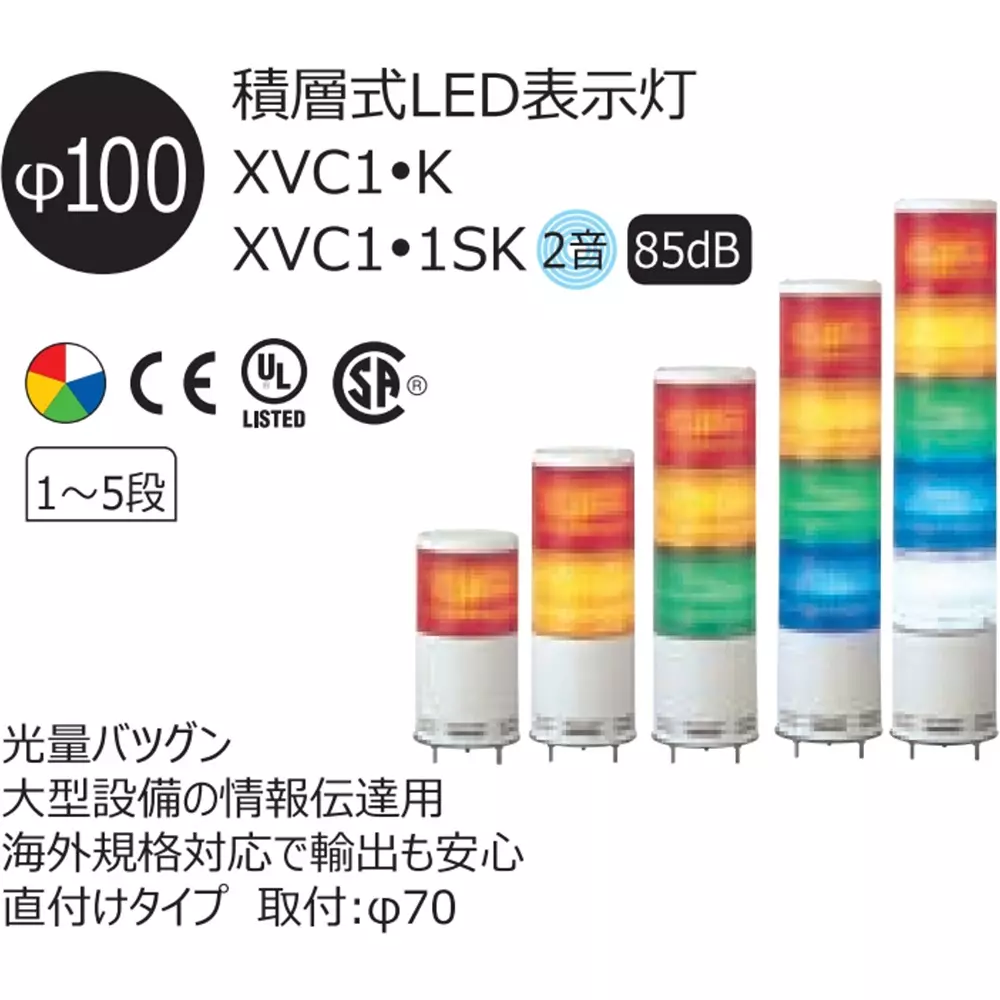

| Type of Product | LED Indicator Light |
| Mounting | Direct attachment |
| Model No | XVC1M3K-RYG |
| Material | Globe: Polycarbonate resin |
Type of Product |
LED Indicator Light |
Mounting |
Direct attachment |
Model No |
XVC1M3K-RYG |
Material |
Globe: Polycarbonate resin |
Light Source |
LED |
Country of Origin |
Japan |
Rated Voltage (V) |
AC100 to 240 |
Protection Class |
IP54 (when mounted on a horizontal surface) |
Monotaro ID |
46268837 |
Power Consumption (W) |
9 |

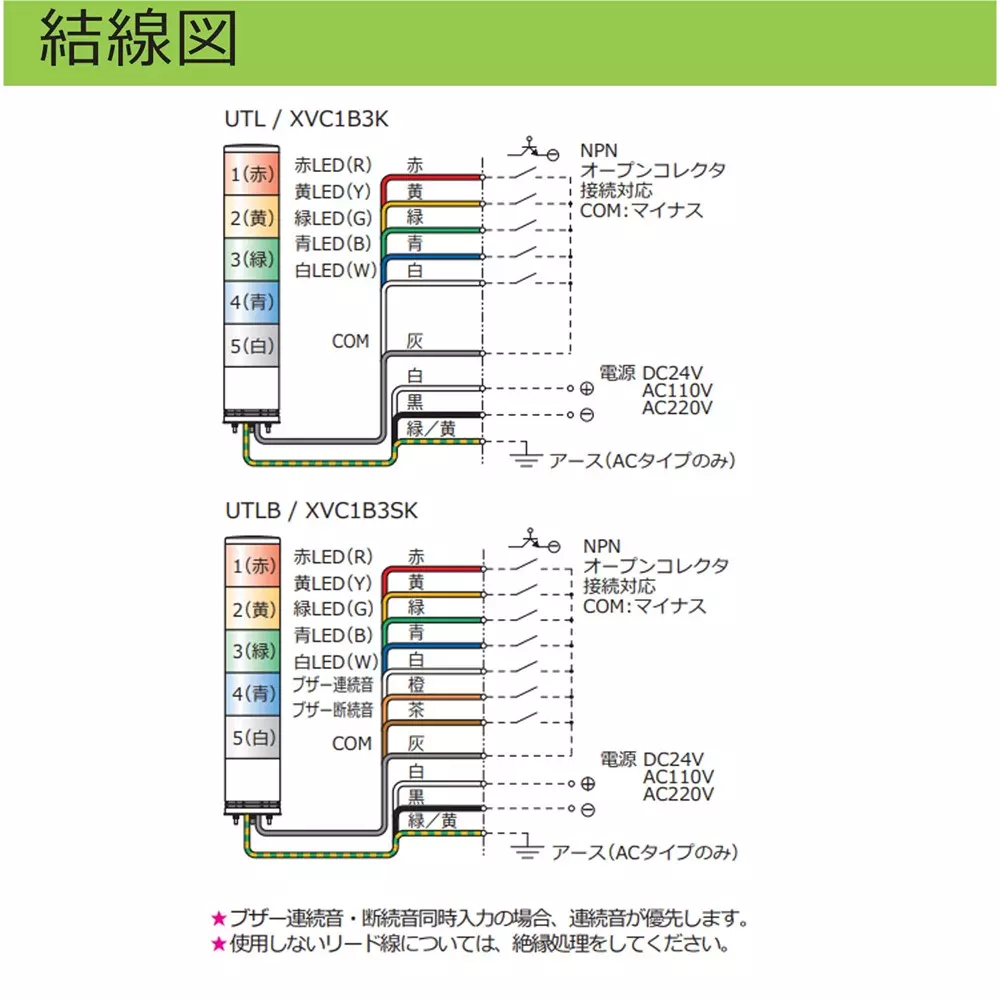

Interface |
NPN open collector |
Mass (Kg) |
1.4 |

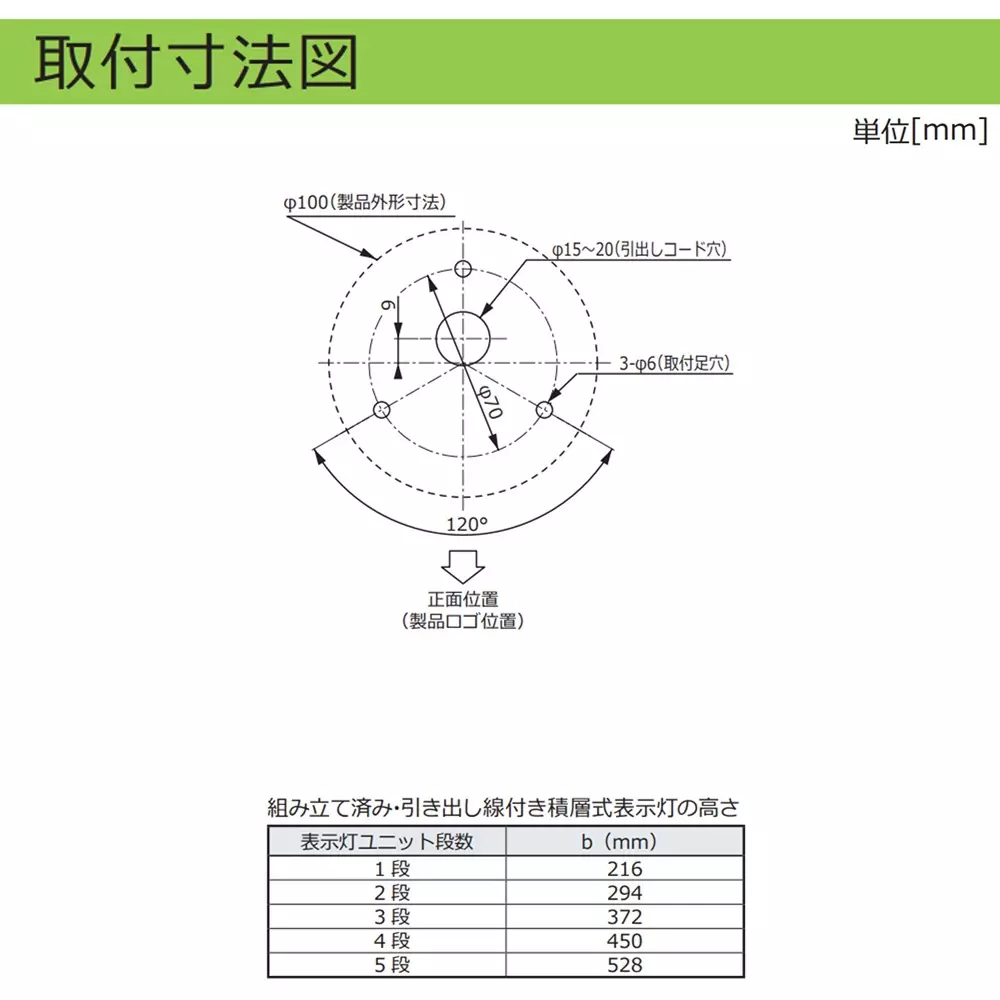

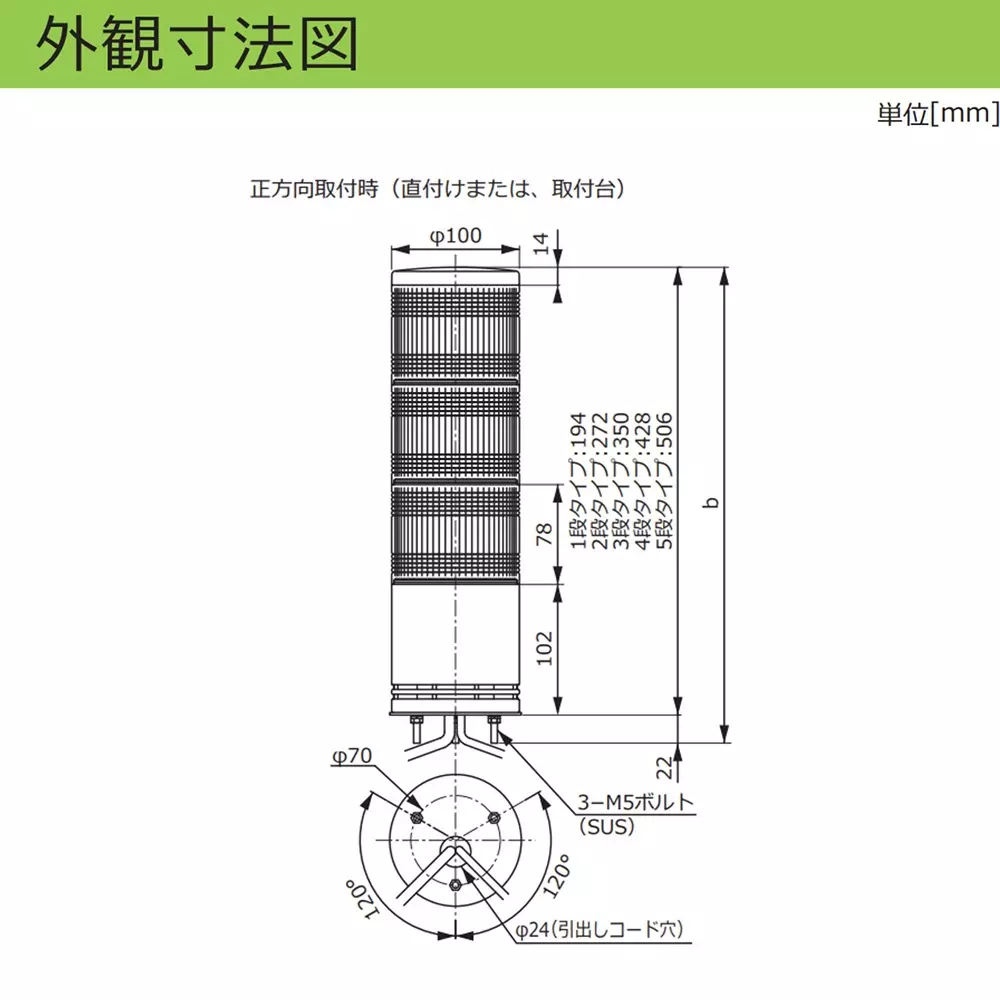

Outer Diameter (Φmm) |
100 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Arrow & Harmony (Schneider Electric) |
Body Material |
Alloy Resin |
Standard |
CE compliant product, UL certified product, CSA certified product |
Cover Material |
Upper part: alloy resin |
No. of Tiers |
3 |
Lead Wire Length (mm) |
500 |
Buzzer Sound |
None |
Contact Capacity |
24 VDC or more, 50 mA or more |
Flickering |
Speed: 132 min <sup>-1</sup>, adjustable range 42-180 min <sup>-1</sup> |
Line Type |
Signal wire VCT-F (Φ7.5) 8 x 0.33 mm2/AWG22, power and earth wire VCT-F (Φ6.5) 3 x 0.83 mm2/AWG18 |
