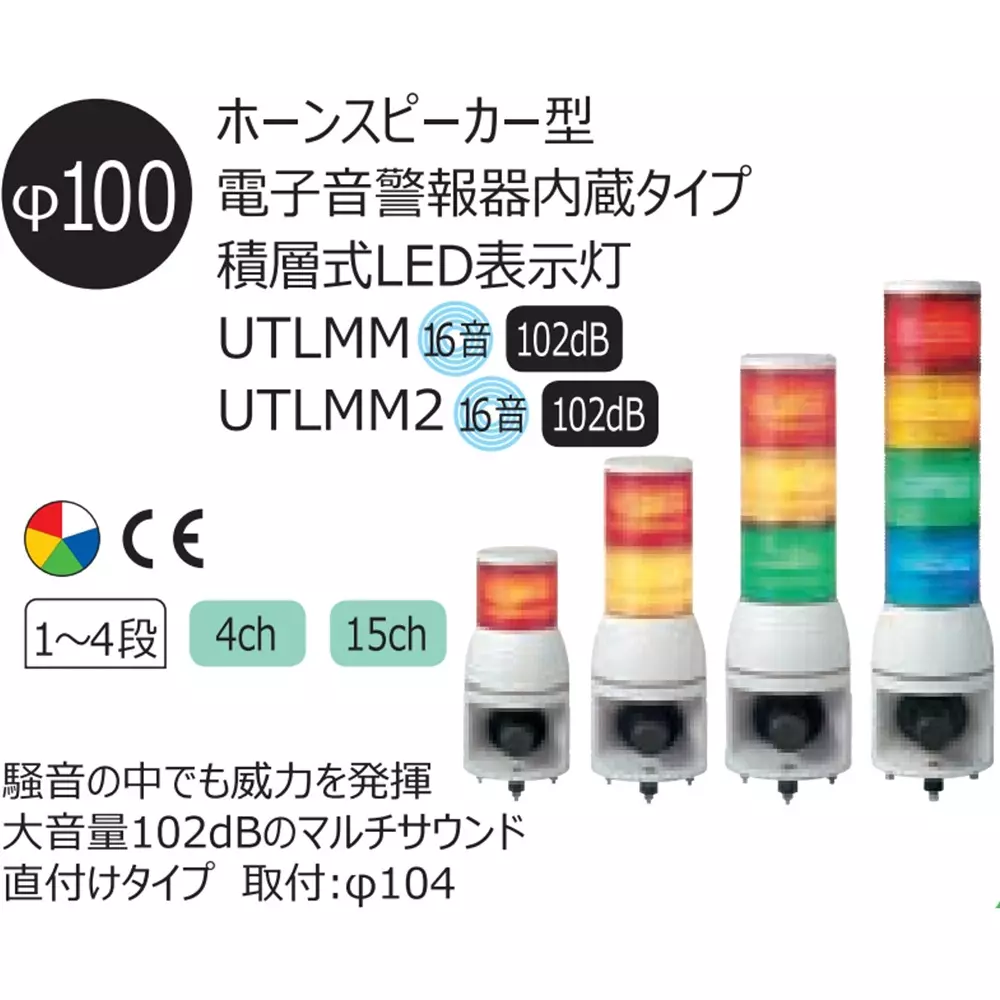

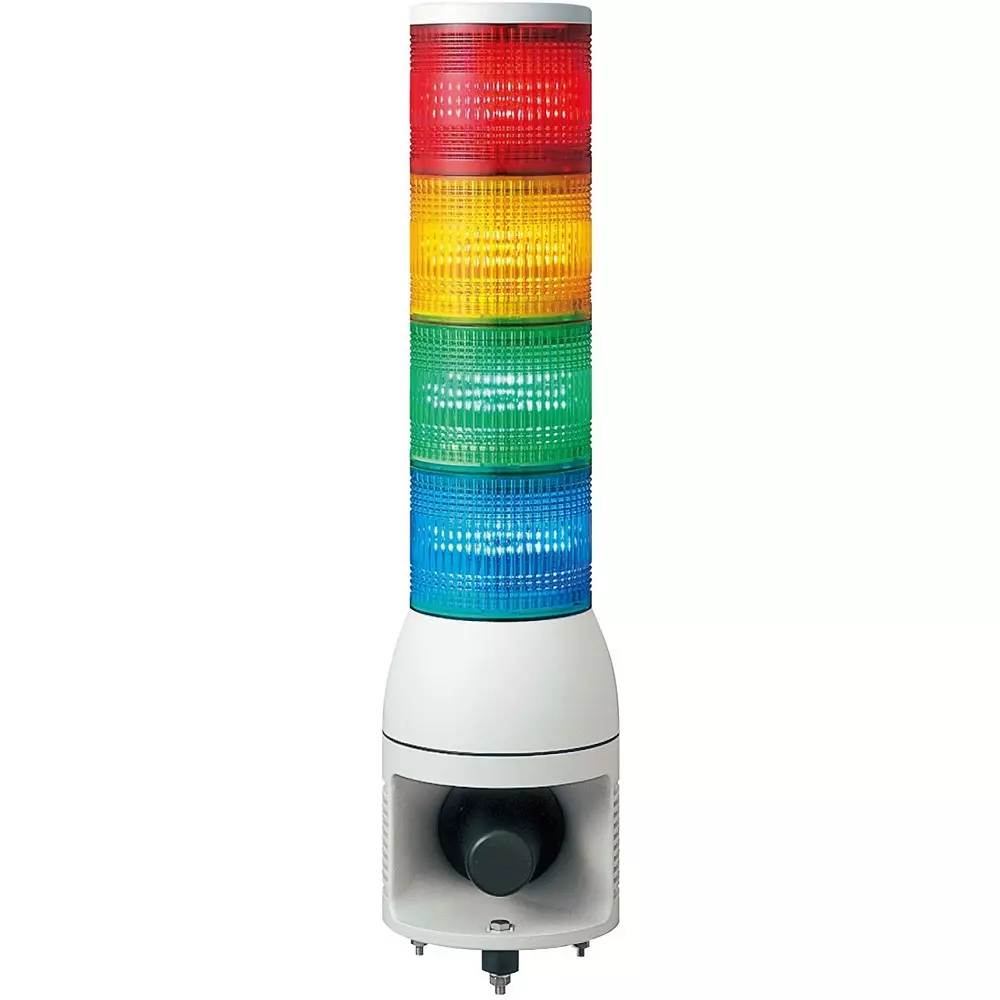

| Type of Product | LED Indicator Light |
| Mounting | Direct attachment |
| Model No | UTLMM-100-4-RYGB |
| Material | Globe: Polycarbonate resin |
Type of Product |
LED Indicator Light |
Mounting |
Direct attachment |
Model No |
UTLMM-100-4-RYGB |
Material |
Globe: Polycarbonate resin |
Light Source |
LED |
Country of Origin |
Japan |
Rated Voltage (V) |
AC110 |
Protection Class |
IP64 |
Monotaro ID |
46271515 |
Power Consumption (W) |
20 |
Interface |
NPN |
Mass (Kg) |
2.1 |

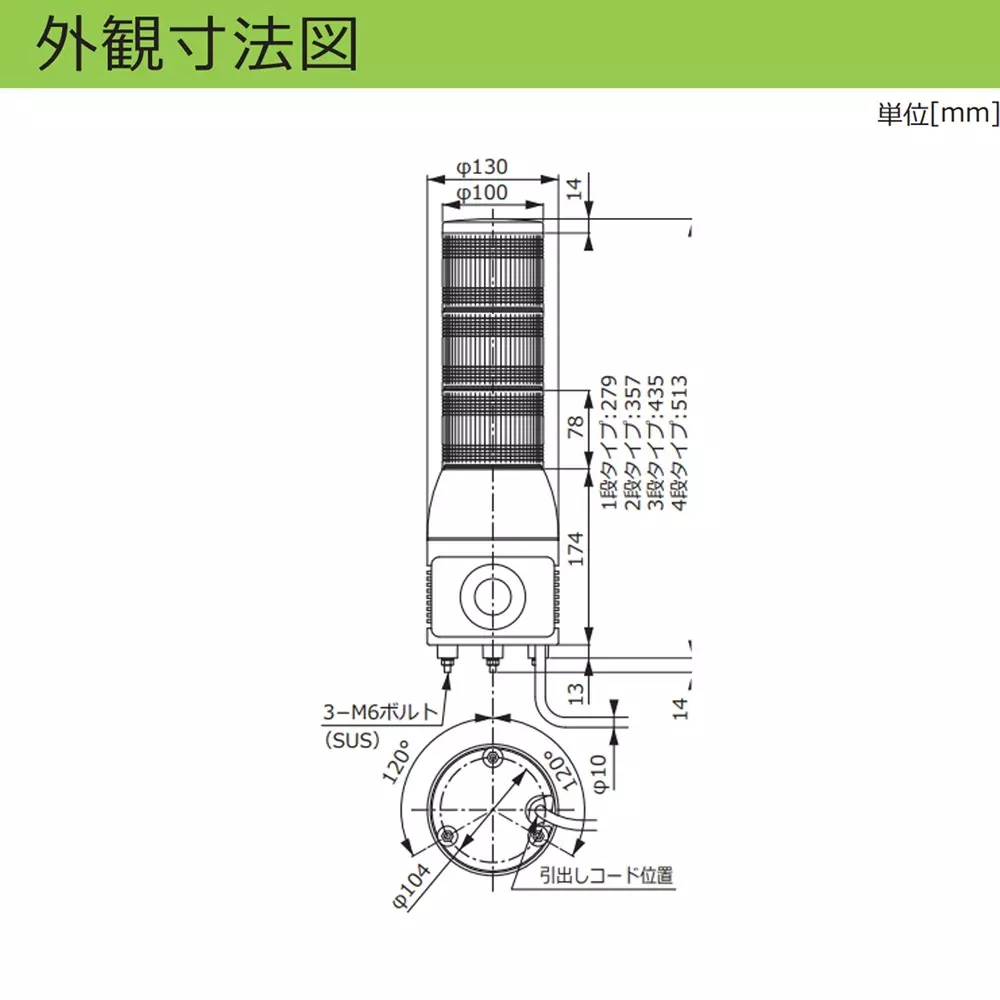

Outer Diameter (Φmm) |
100 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Arrow & Harmony (Schneider Electric) |
Body Material |
Alloy Resin |

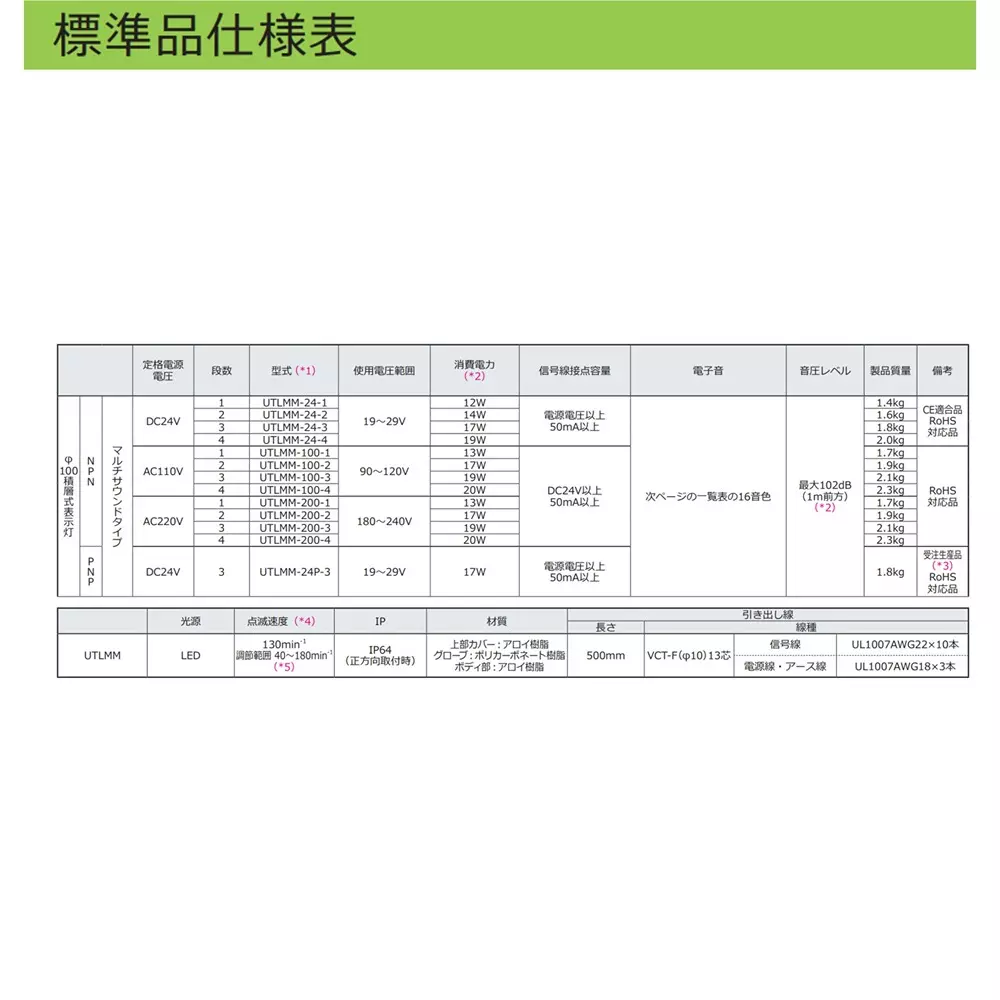

Specifications |
Multi-sound type |
Cover Material |
Upper part: alloy resin |
No. of Tiers |
4 |
Sound Pressure Level (dB) |
Up to 102 (1m forward) |
Lead Wire Length (mm) |
500 |

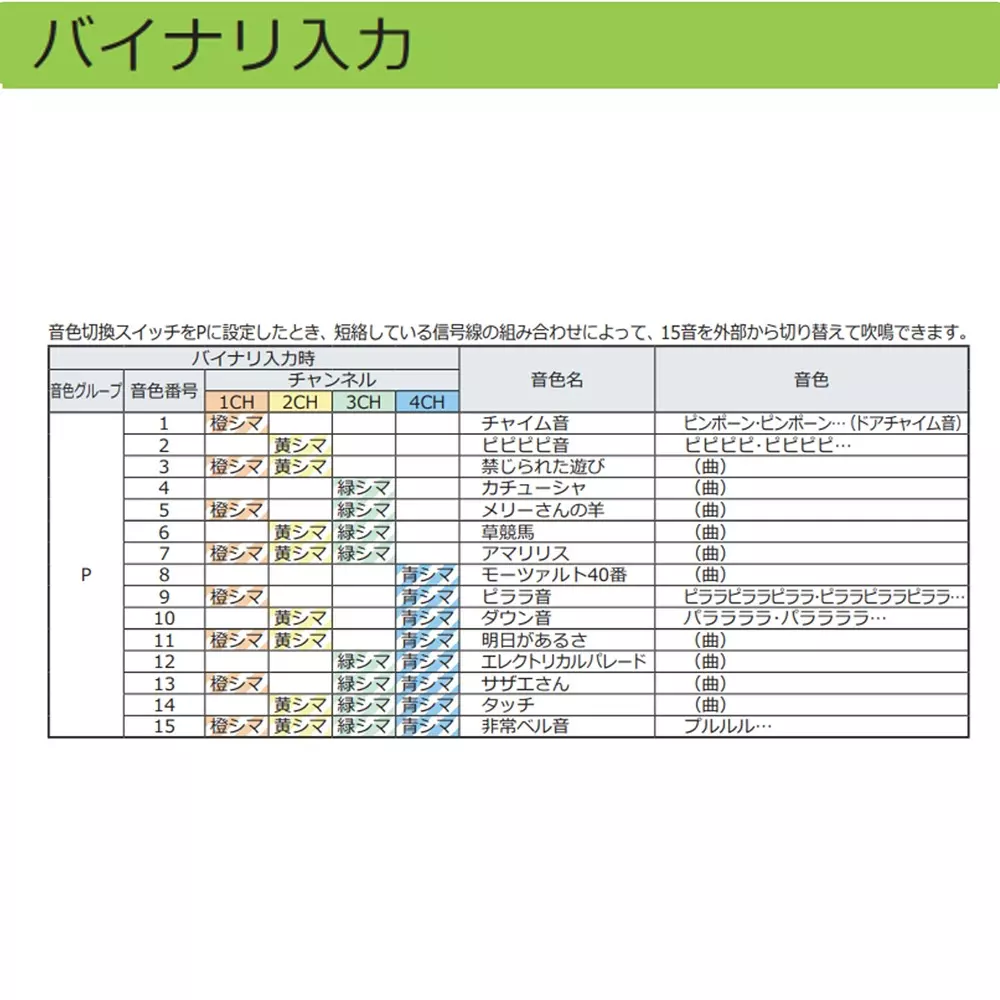

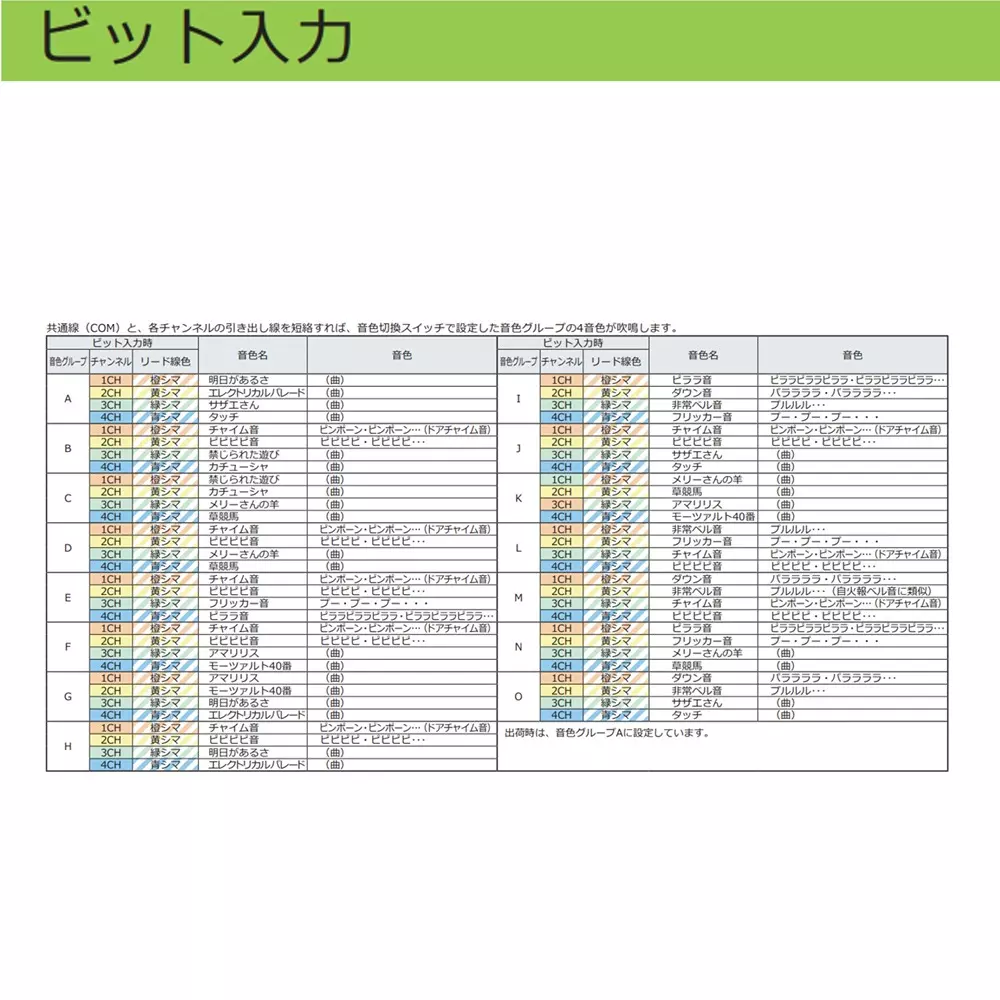

Buzzer Sound |
16 tones |
Contact Capacity |
24 VDC or more, 50 mA or more |
Flickering |
Speed: 132 min <sup>-1</sup>, adjustable range 40-180 min <sup>-1</sup> |
Line Type |

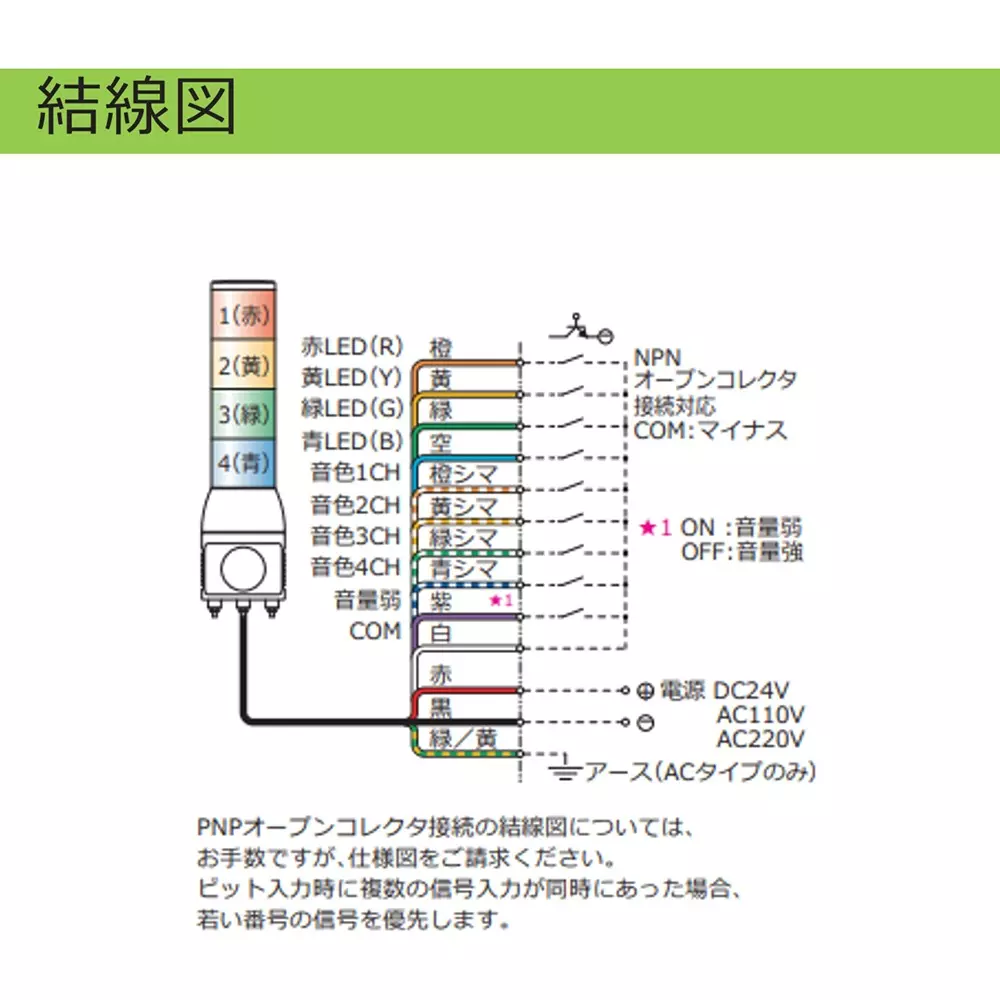

VCT-F (Φ10) 13-core signal wire UL1007AWG22 x 10 pcs, power line/earth wire UL1007AWG18 x 3 pcs |
