| Type of Product | LED Indicator Light |
| Mounting | Direct attachment |
| Model No | UTL-24-3-RYG |
| Material | Globe: Polycarbonate resin |
Type of Product |
LED Indicator Light |
Mounting |
Direct attachment |
Model No |
UTL-24-3-RYG |
Material |
Globe: Polycarbonate resin |
Light Source |
LED |
Country of Origin |
Indonesia |
Rated Voltage (V) |
DC 24 |
Protection Class |
IP64 |
Monotaro ID |
46272687 |
Power Consumption (W) |
10 |

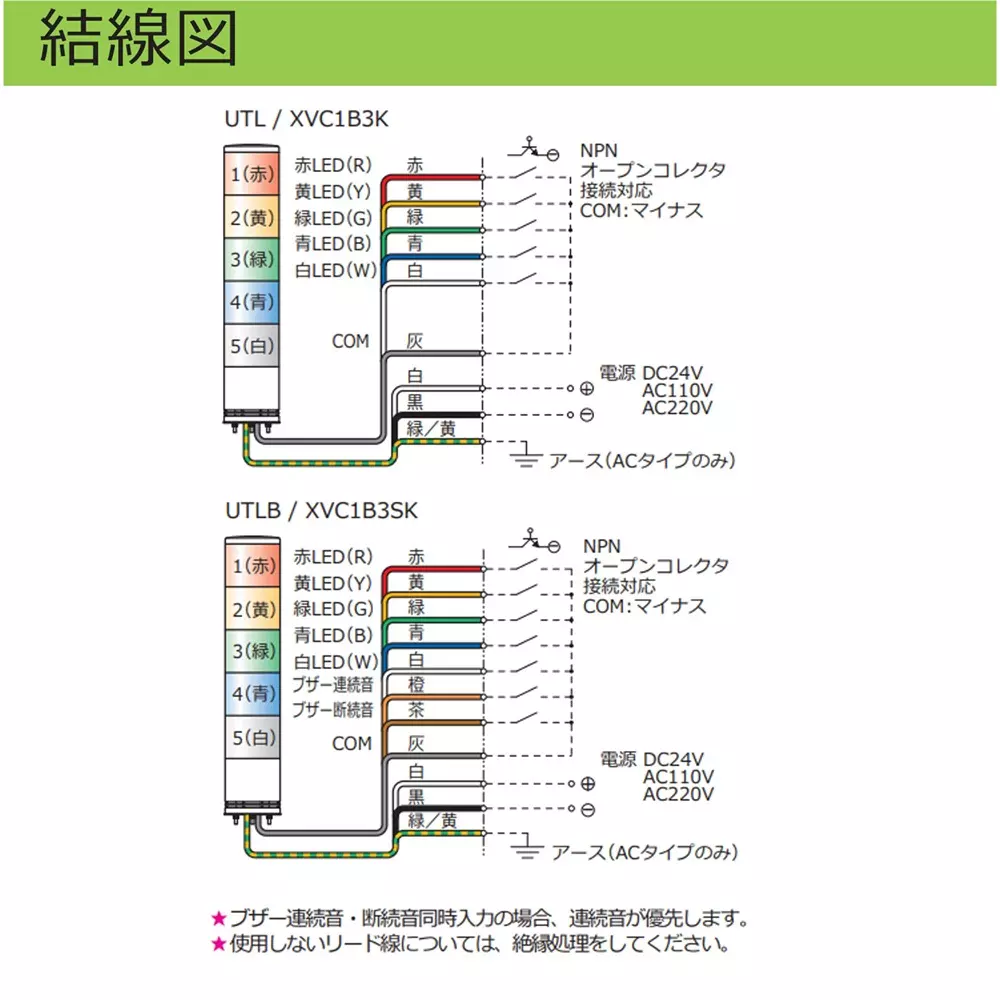

Interface |
NPN open collector |
Mass (Kg) |
1.1000000000000001 |

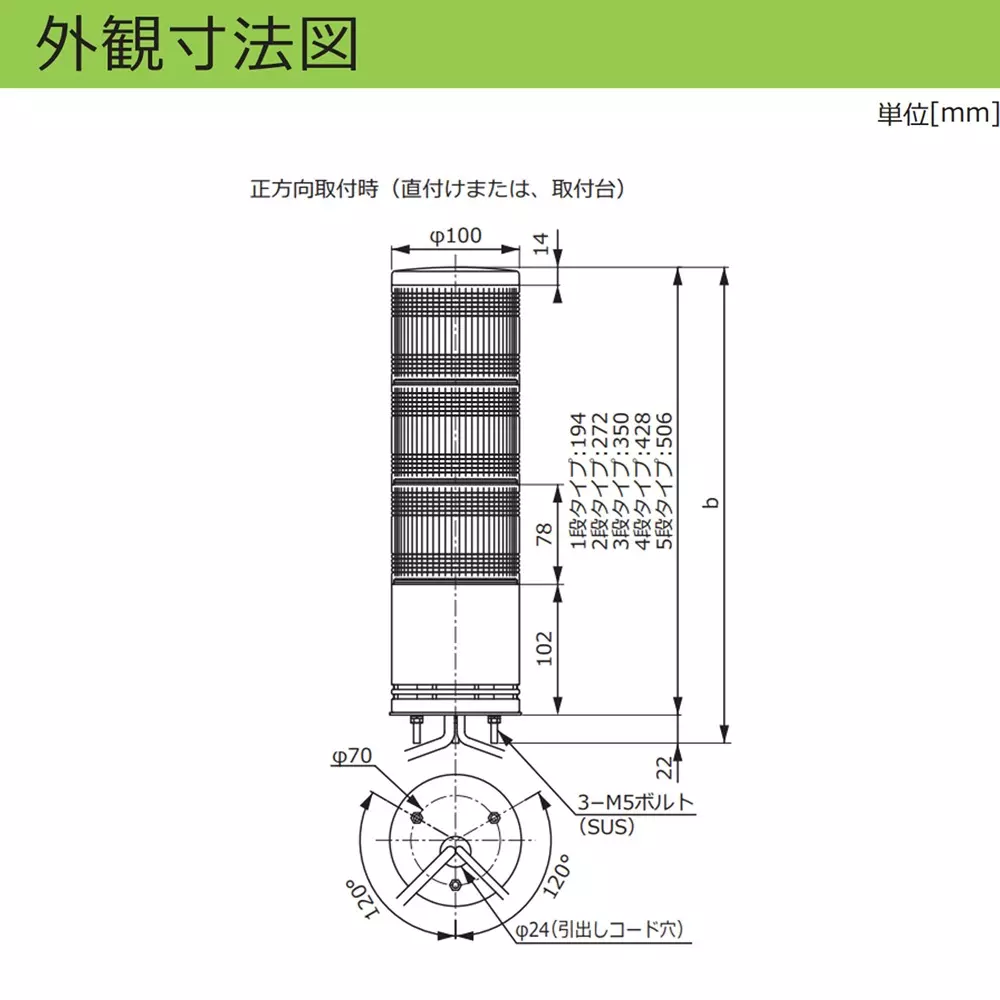

Outer Diameter (Φmm) |
100 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Arrow & Harmony (Schneider Electric) |
Body Material |
Alloy Resin |
Specifications |
Standard Gloves |
Standard |
CE compliant product |
Cover Material |
Upper part: alloy resin |
No. of Tiers |
3 |
Sound Pressure Level (dB) |
None |
Lead Wire Length (mm) |
500 |
Buzzer Sound |
None |
Contact Capacity |
More than power supply voltage 50mA or more |
Flickering |
Speed: 130min <sup>-1</sup> Adjustable range: 40-180min <sup>-1</sup> |
Line Type |
VCT-F (Φ7.5) 8-core signal wire UL1007AWG22 x 8, VCT-F (Φ6.5) 3-core power/earth wire UL1007AWG18 x 3 |
