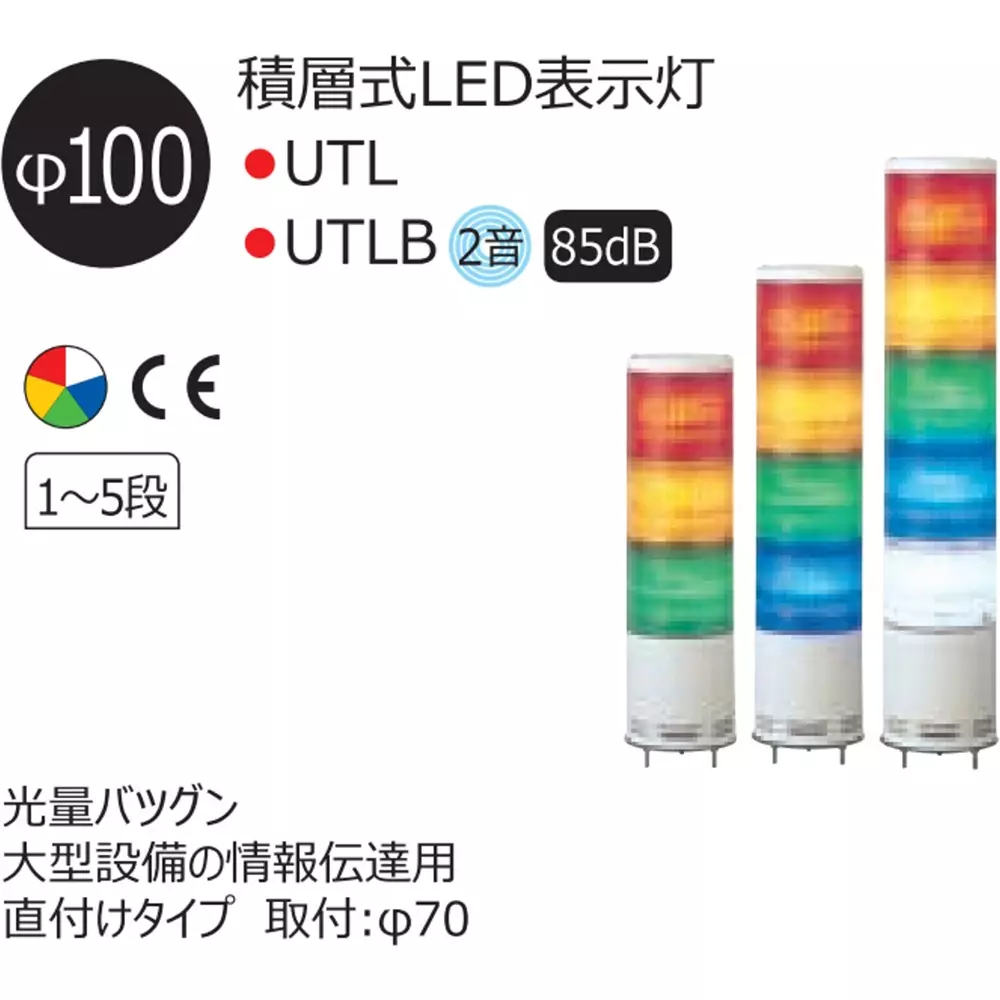

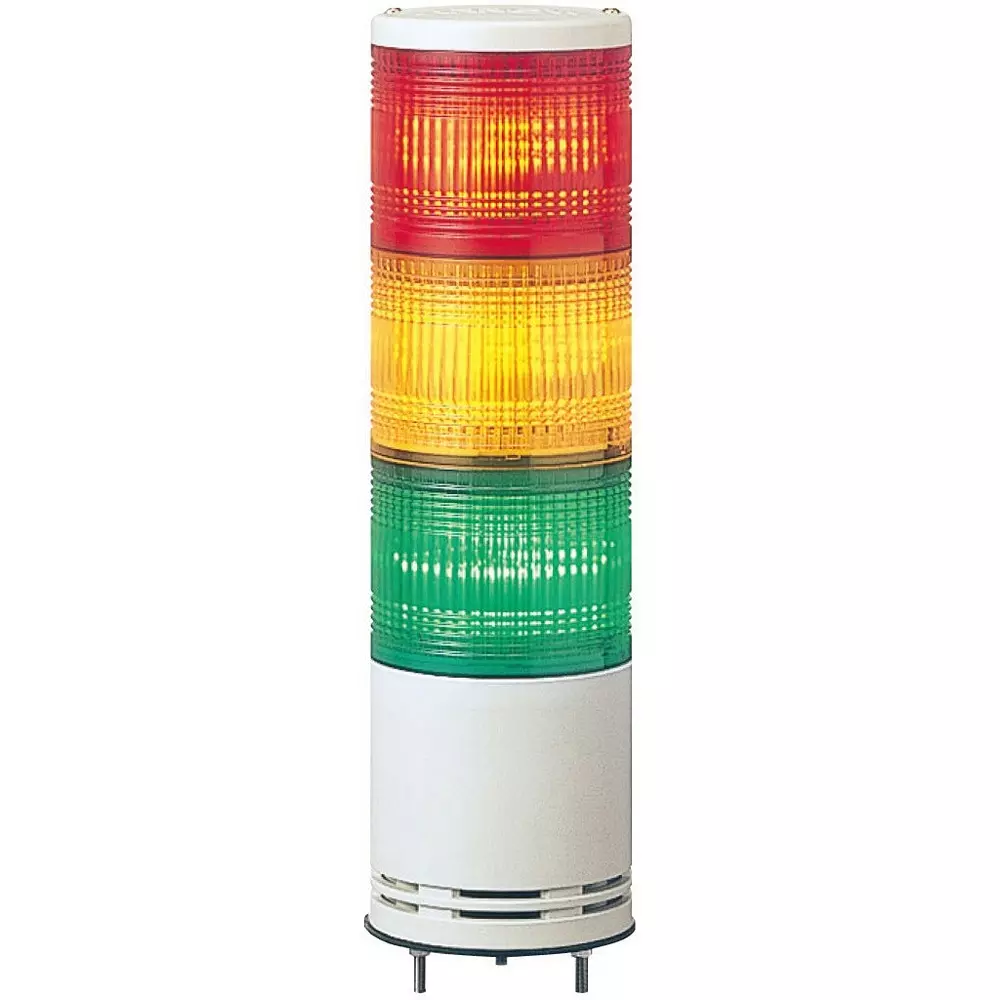

| Type of Product | LED Indicator Light |
| Mounting | Direct attachment |
| Model No | UTLB-200-3-RYG |
| Material | Globe: Polycarbonate resin |
Type of Product |
LED Indicator Light |
Mounting |
Direct attachment |
Model No |
UTLB-200-3-RYG |
Material |
Globe: Polycarbonate resin |
Light Source |
LED |
Country of Origin |
Indonesia |
Rated Voltage (V) |
AC220 |
Protection Class |
IP64 |
Monotaro ID |
46272775 |
Power Consumption (W) |
15 |
Interface |
NPN open collector |
Mass (Kg) |
1.4 |

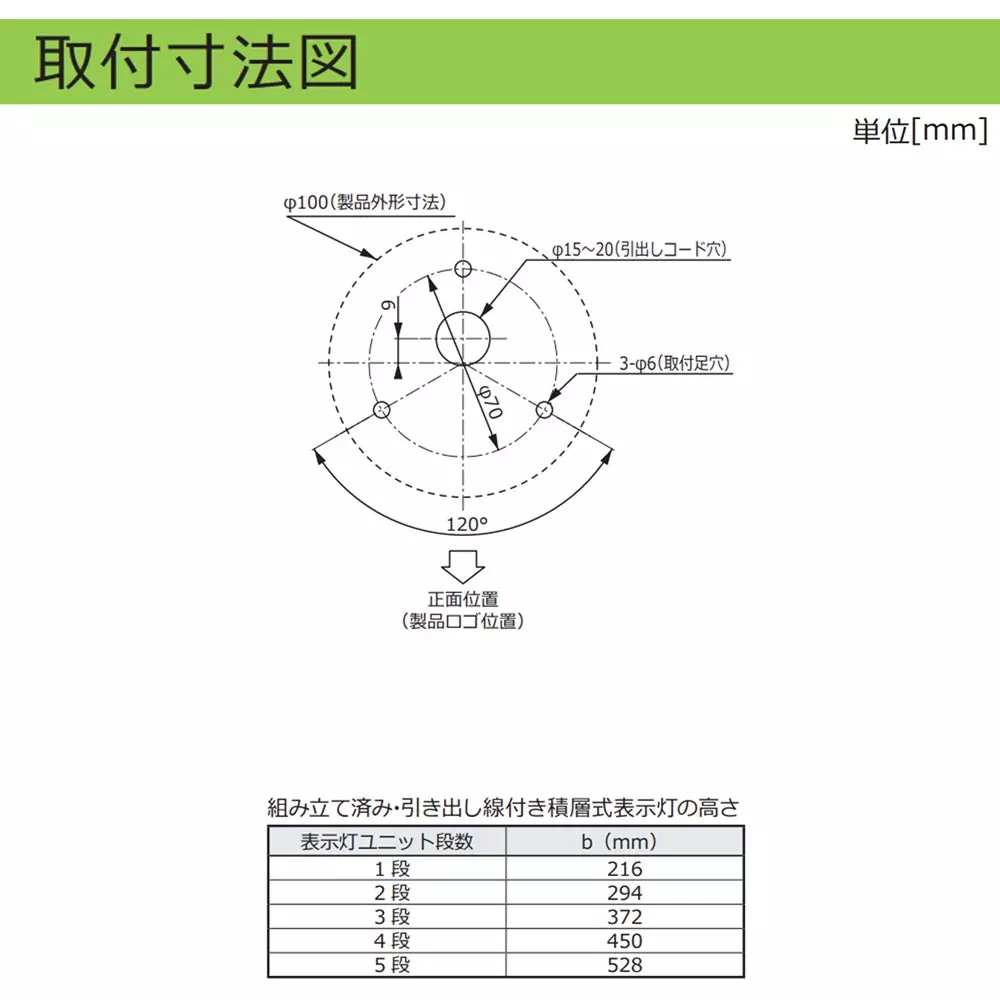

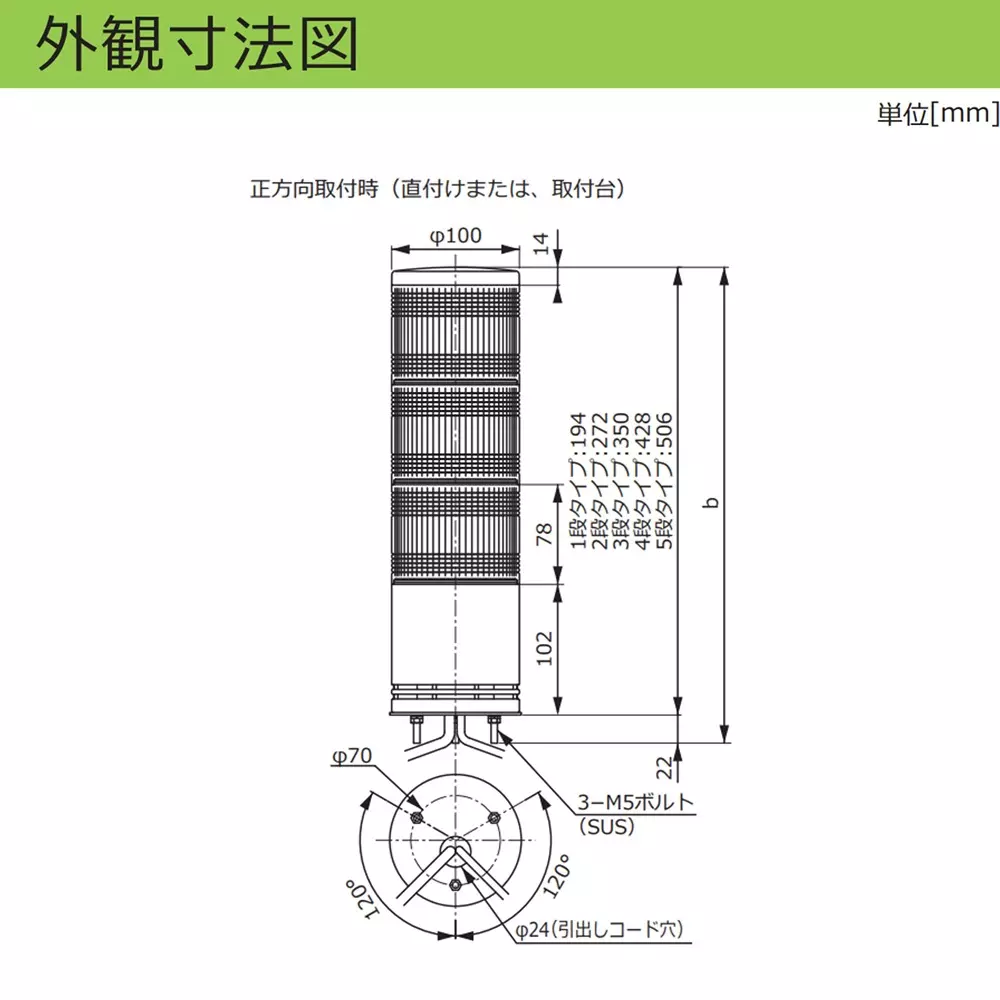

Outer Diameter (Φmm) |
100 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Arrow & Harmony (Schneider Electric) |
Body Material |
Alloy Resin |

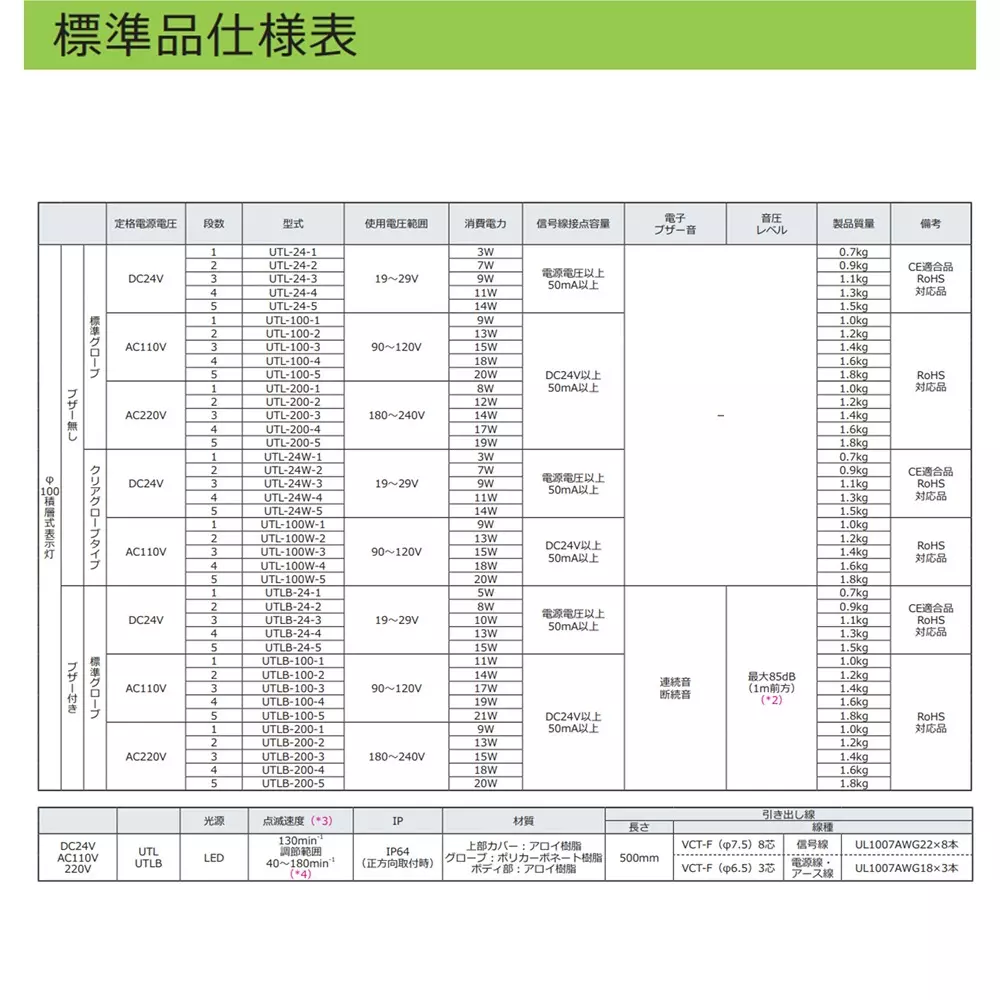

Specifications |
Standard Gloves |
Cover Material |
Upper part: alloy resin |
No. of Tiers |
3 |
Sound Pressure Level (dB) |
Up to 85 (1m forward) |
Lead Wire Length (mm) |
500 |
Buzzer Sound |
Continuous/intermittent sounds |
Contact Capacity |
24 VDC or more, 50 mA or more |
Flickering |
Speed: 130min <sup>-1</sup> Adjustable range: 40-180min <sup>-1</sup> |

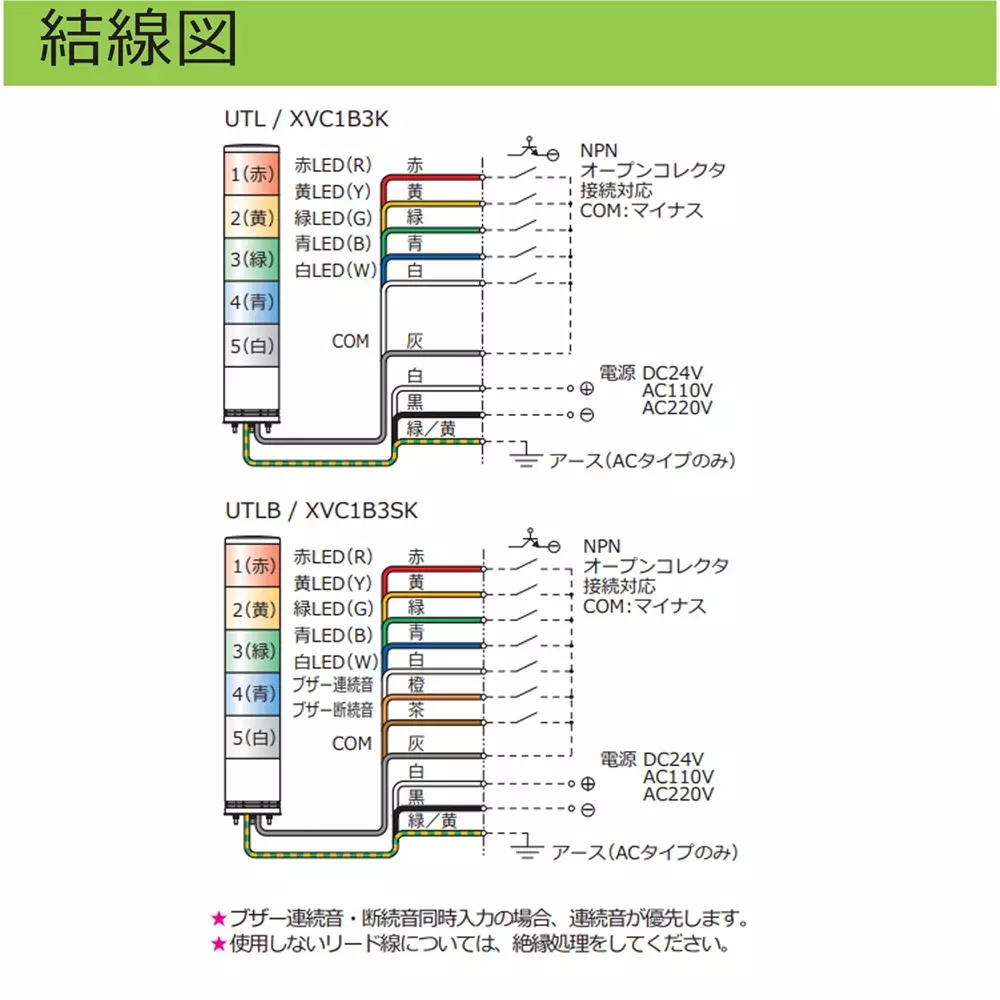

Line Type |
VCT-F (Φ7.5) 8-core signal wire UL1007AWG22 x 8, VCT-F (Φ6.5) 3-core power/earth wire UL1007AWG18 x 3 |
