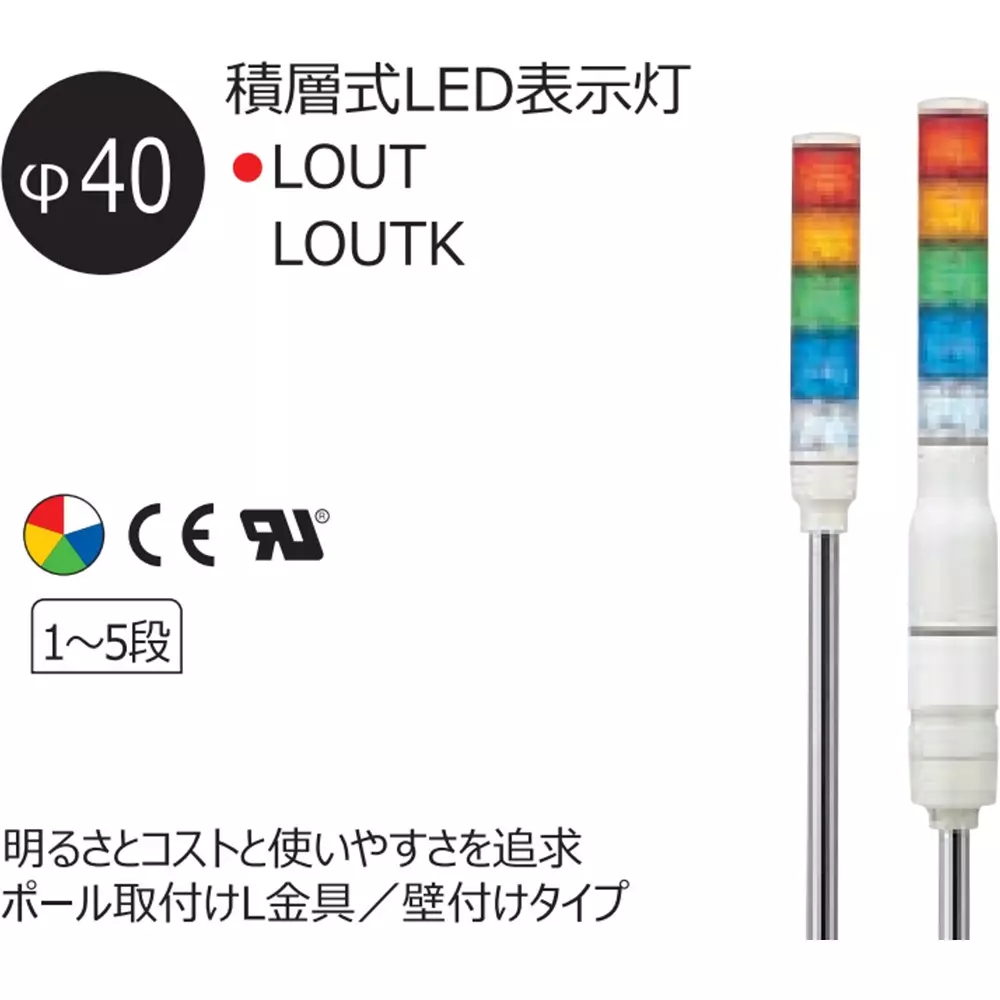

| Type of Product | LED Indicator Light |

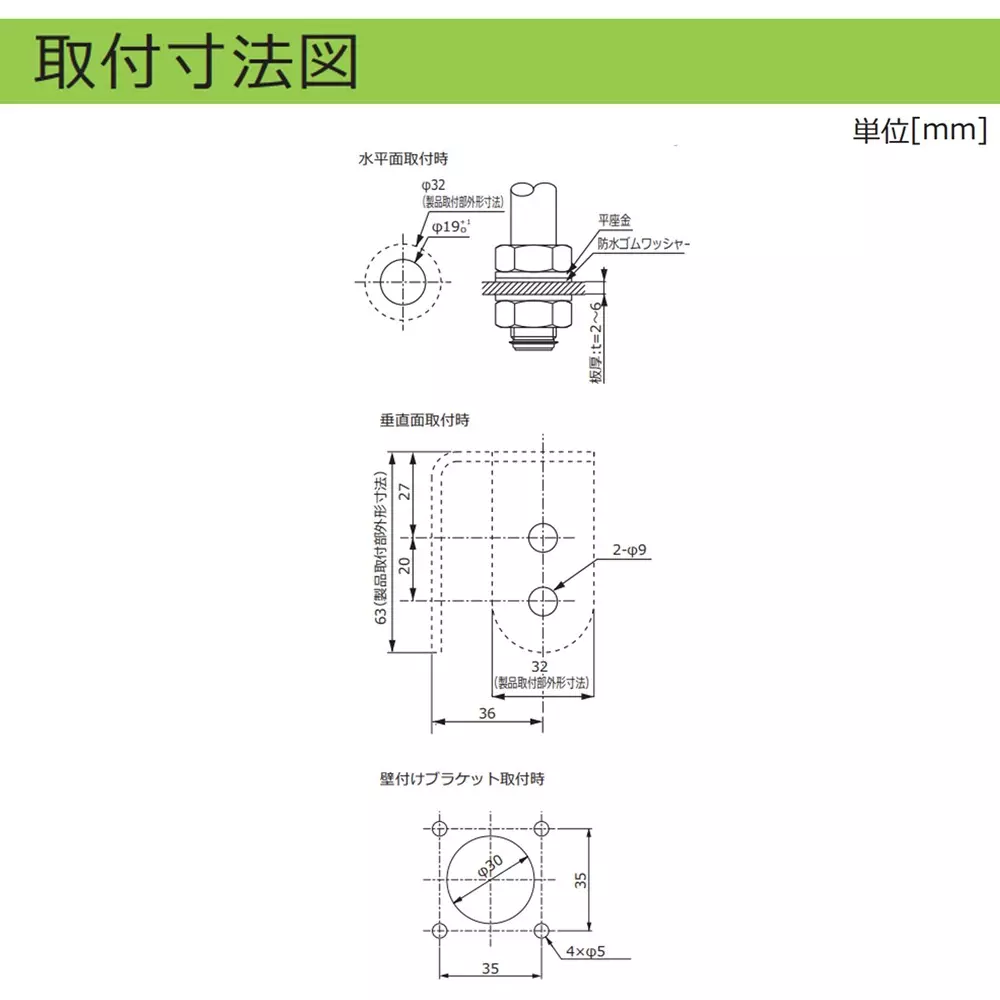

| Mounting | Pole mounting / Standard L bracket |
| Model No | LOUT-24W-4-RYGB |
| Material | Globe: Polycarbonate resin |
Type of Product |
LED Indicator Light |
Mounting |
Pole mounting / Standard L bracket |
Model No |
LOUT-24W-4-RYGB |
Material |
Globe: Polycarbonate resin |
Light Source |
LED |
Country of Origin |
Japan |
Rated Voltage (V) |
AC/DC24 |
Protection Class |
IP65 (when mounted on a horizontal surface) IP23 when using the included L-shaped mounting bracket or optional mounting stand |
Monotaro ID |
46268925 |
Power Consumption (W) |
2.4 |

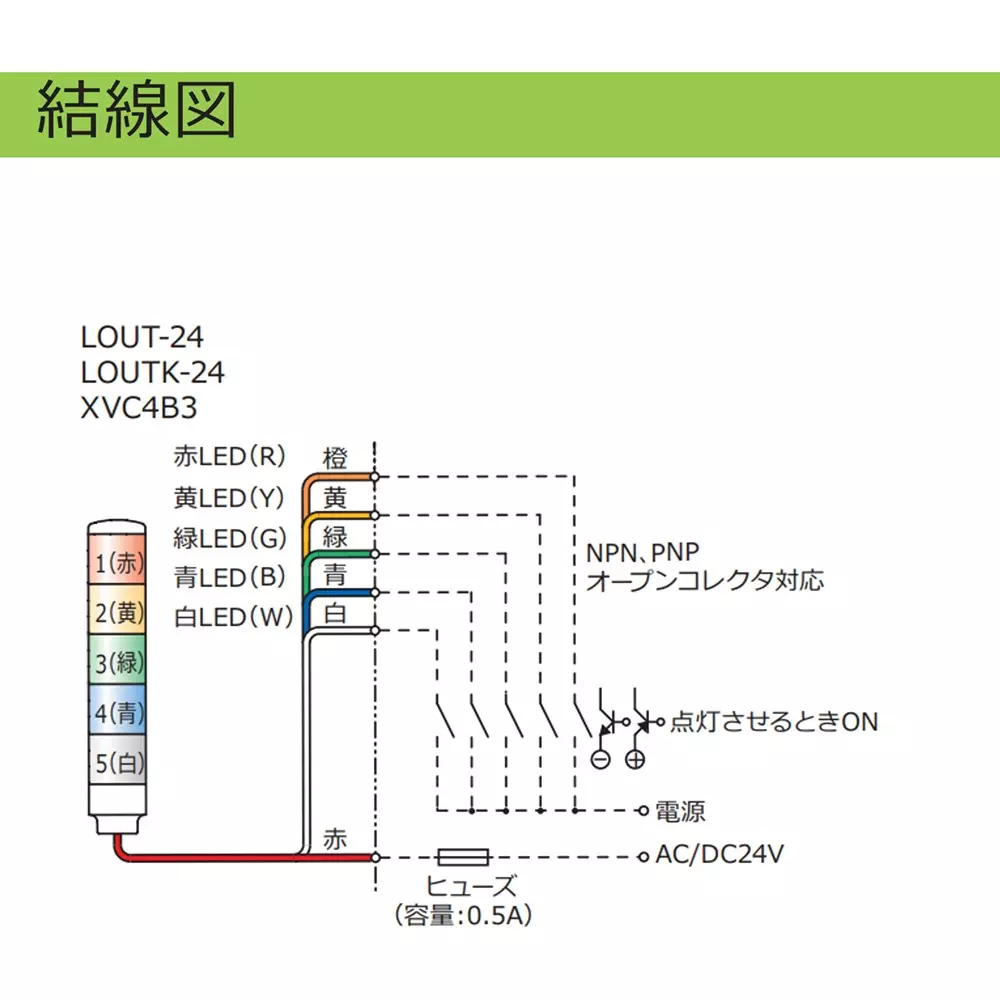

Interface |
NPN, PNP open collector |
Mass (Kg) |
0.5 |

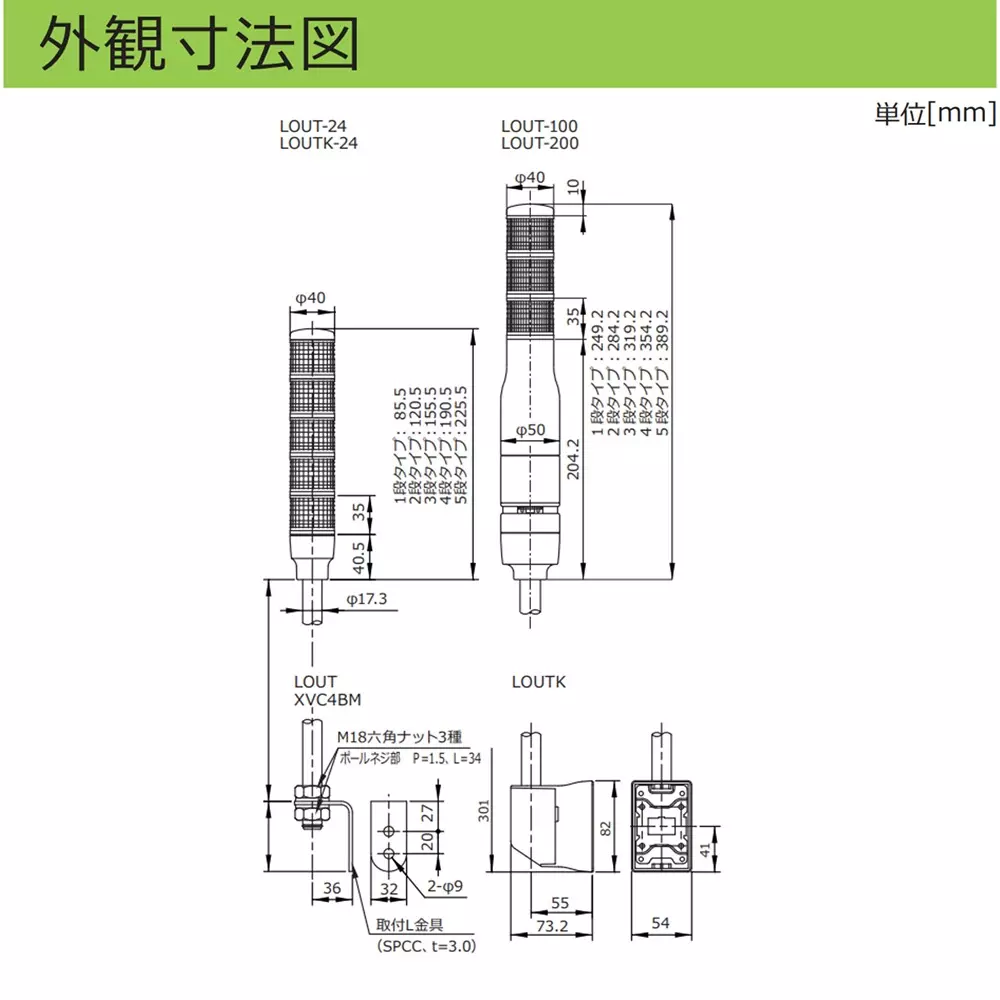

Outer Diameter (Φmm) |
40 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Arrow & Harmony (Schneider Electric) |
Body Material |
ABS resin |
Operating Temperature Range |
-30 to 50 ℃ |
Specifications |
Clear glove type |
Standard |
CE compliant product, UL certified product |
Cover Material |
Upper part: alloy resin |
No. of Tiers |
4 |
Lead Wire Length (mm) |
1100 |
Buzzer Sound |
None |
Contact Capacity |
LED: 25mA or more than power supply voltage, Buzzer: None |
Flickering |
Speed: No blinking |
Line Type |
Signal line / power line UL1007AWG22 |
