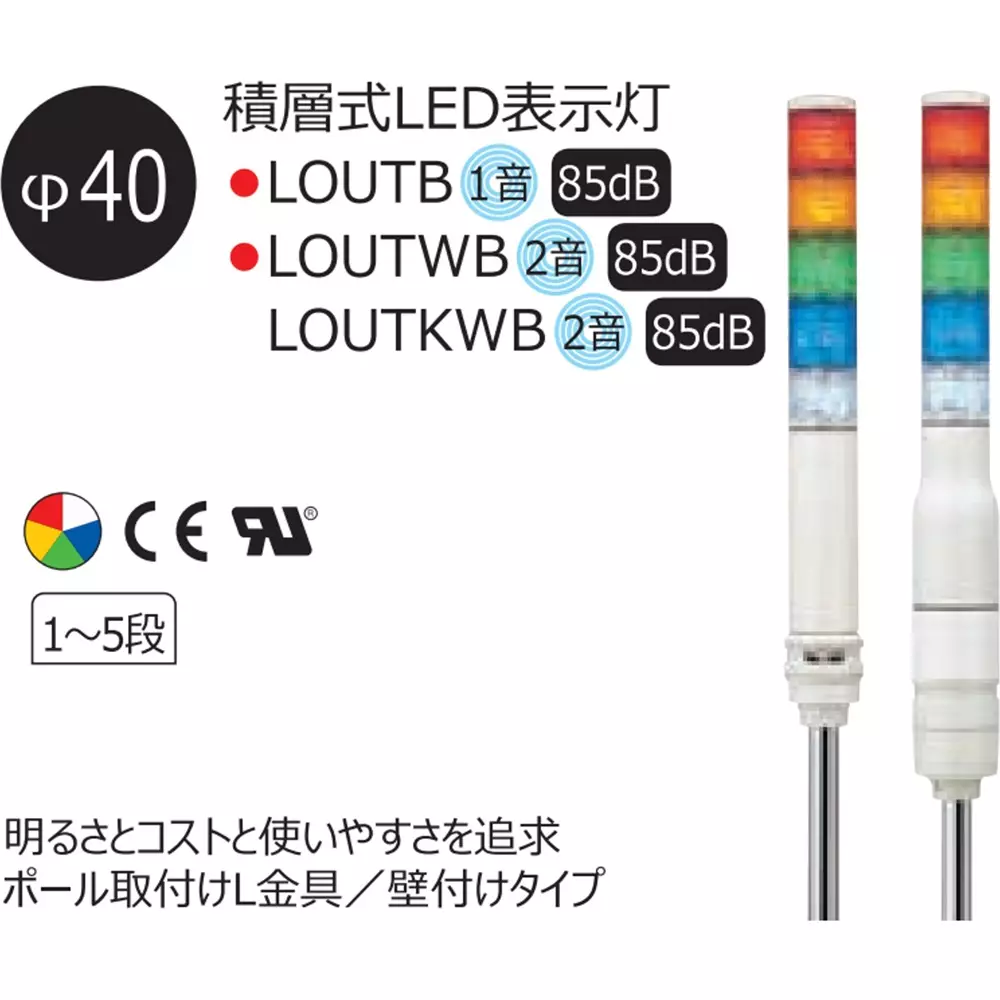

| Type of Product | LED Indicator Light |
| Mounting | Pole mounting / Standard L bracket |
| Model No | LOUTWB-200-5-RYGBW |
| Material | Globe: Polycarbonate resin |
Type of Product |
LED Indicator Light |
Mounting |
Pole mounting / Standard L bracket |
Model No |
LOUTWB-200-5-RYGBW |
Material |
Globe: Polycarbonate resin |
Light Source |
LED |
Country of Origin |
Indonesia |
Rated Voltage (V) |
AC220 |
Protection Class |
IP64 (when installed on a horizontal surface) If you use the included L-shaped mounting bracket or optional mounting stand, IP23 |
Monotaro ID |
46270824 |
Power Consumption (W) |
7.3 |
Interface |
NPN open collector |
Mass (Kg) |
0.9 |
Outer Diameter (Φmm) |
40 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Arrow & Harmony (Schneider Electric) |
Body Material |
ABS resin |
Operating Temperature Range |
-30 to 50 ℃ |
Cover Material |
Upper part: alloy resin |
No. of Tiers |
5 |
Lead Wire Length (mm) |
950 |
Buzzer Sound |
Continuous / intermittent sound switching |
Contact Capacity |
LED: DC24V or more, 25mA or more, Buzzer: DC24V or more, 100mA or more |
Flickering |
Speed: 60min <sup>-1</sup> |
Line Type |
Signal line UL1007AWG22, power line VFF0.75mm² x 2 cores |
