| Type of Product | LED Indicator Light |
| Mounting | Pole mounting / wall bracket |
| Model No | LOUTK-24-4-RYGB |
| Material | Globe: Polycarbonate resin |
Type of Product |
LED Indicator Light |
Mounting |
Pole mounting / wall bracket |
Model No |
LOUTK-24-4-RYGB |
Material |
Globe: Polycarbonate resin |
Light Source |
LED |
Country of Origin |
Japan |
Rated Voltage (V) |
AC/DC24 |
Protection Class |
IP65 (when mounted in the forward direction) |
Monotaro ID |
46269065 |
Power Consumption (W) |
2.4 |

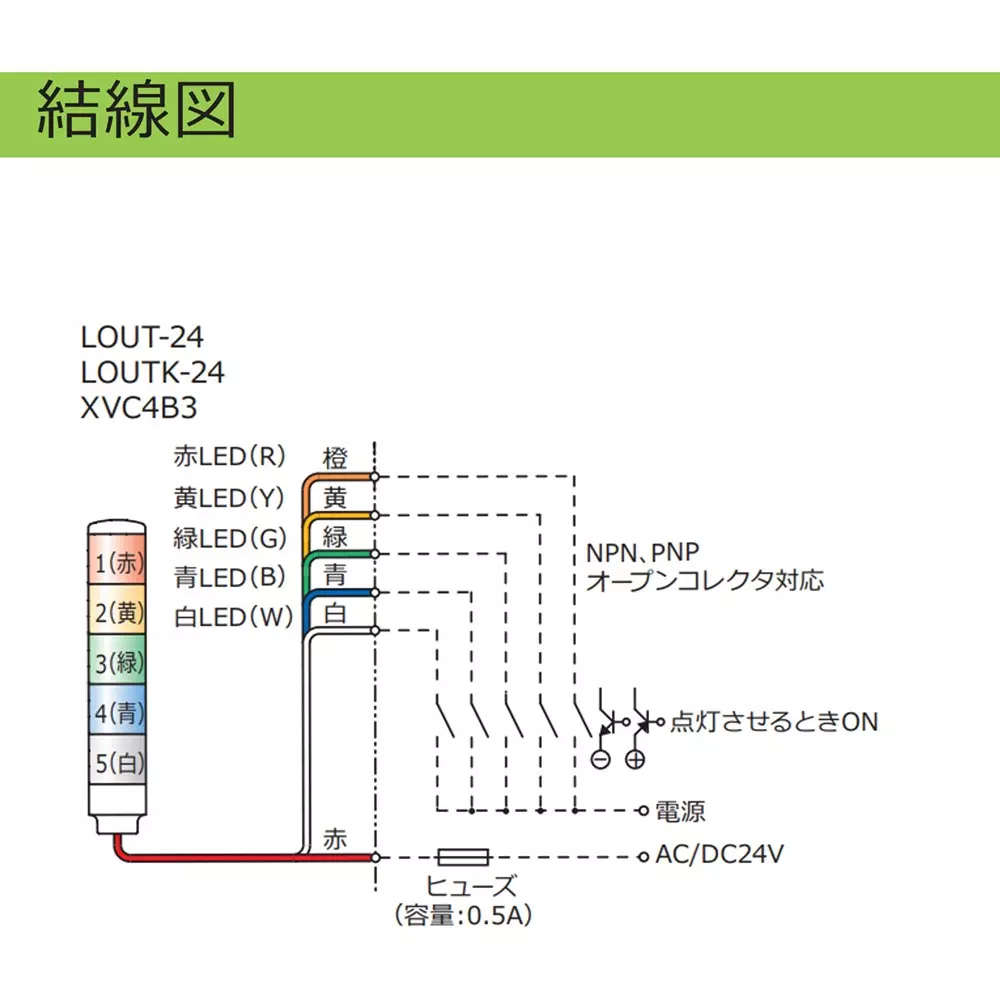

Interface |
NPN, PNP open collector |
Mass (Kg) |
0.4 |
Outer Diameter (Φmm) |
40 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Arrow & Harmony (Schneider Electric) |
Body Material |
ABS resin |
Operating Temperature Range |
-30 to 50 ℃ |
Cover Material |
ABS resin, upper part: alloy resin |
No. of Tiers |
4 |
Lead Wire Length (mm) |
1000 |
Buzzer Sound |
None |
Contact Capacity |
LED: 25mA or more than power supply voltage, Buzzer: None |
Flickering |
Speed: No blinking |
Line Type |
Signal line/power line UL1007AWG22, Connector: JST ELP-12V/ELR-12V |
