| Protection Class | IP65 |
| Model No | APD122DNR |

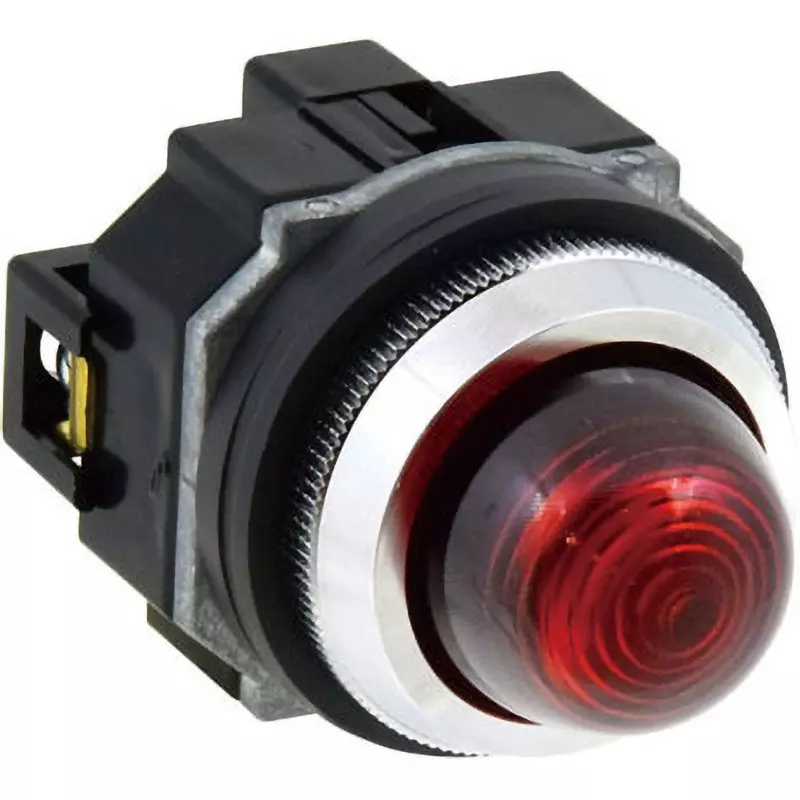

| Type of Product | Diameter 30 / Zinc Die-Cast Series Pilot Light (Round Led) |
| Storage Temperature | -40 to 80 (no icing) |
Protection Class |
IP65 |
Model No |
APD122DNR |
Type of Product |
Diameter 30 / Zinc Die-Cast Series Pilot Light (Round Led) |
Storage Temperature |
-40 to 80 (no icing) |
Country of Origin |
Japan |
Monotaro ID |
59866965 |
Light Colour |
Red |
Type of Illumination |
LED |
Rated Insulation Voltage (V) |
600 |
Illuminated Colors |
Red |
Mounting Hole Diameter (Φmm) |
30.5(0 - 0.5) |
Name of Manufacturer/Packer/Importer |
IDEC Corporation |
Operation Mechanism |
Round type |
Lamp Voltage (V) |
AC/DC24 |
Operation Ambient Temperature (°C) |
-25 to 55 (no icing) |
Vibration Resistance (Malfunction) |
5-55Hz, single amplitude 0.5mm |
Contact Material |
Silver |
Import Country |
Direct Import from Japan |
Withstand voltage (V / min) |
AC2000 (between charging part and earth) |
Insulation_Resistance (MΩ) |
100 or more (DC500V mega) |
Rated Carrying Current (A) |
10 |
Bulb Plug Type |
BA9S |
Contact Resistance |
50 mΩ or Less (Initial Value) |
Vibration Resistance (Destruction) |
30Hz, 1.5mm single amplitude |
Impact Resistance (Malfunction) (m/s²) |
100 |
Operating Ambient Humidity (% RH) |
45 to 85 (no condensation) |
