| Protection Class | IP65 |
| Model No | APS116DNA |

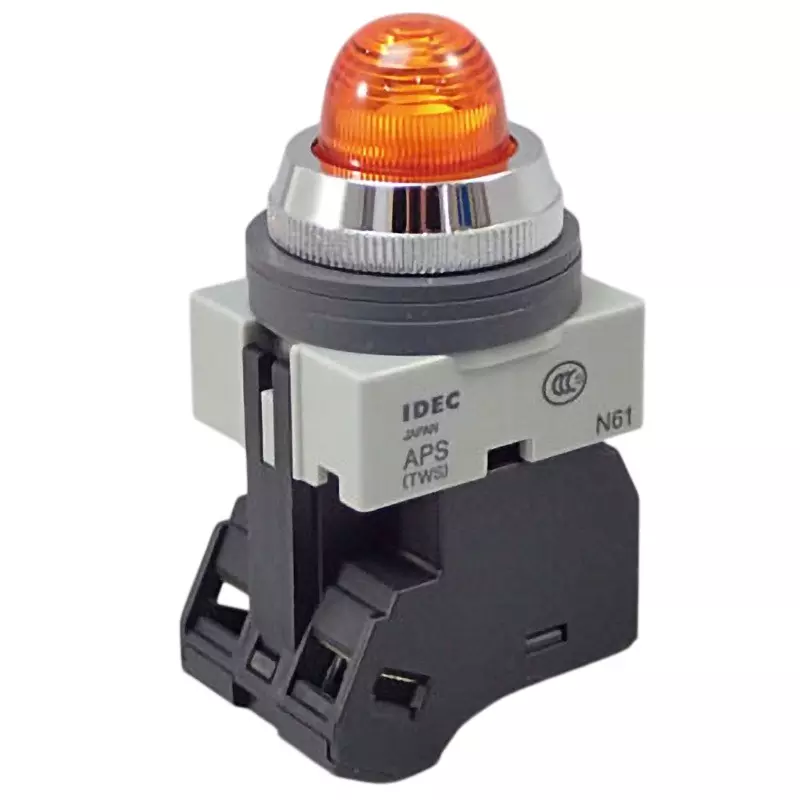

| Type of Product | Tws Series Pilot Light Φ25 (Round Dome Led) |
| Storage Temperature | -40 to 80 (no icing) |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Protection Class |
IP65 |
Model No |
APS116DNA |
Type of Product |
Tws Series Pilot Light Φ25 (Round Dome Led) |
Storage Temperature |
-40 to 80 (no icing) |
Standard |
UL standard (file no. E68961), CSA standard (file no. LR21451), EN standard (EN60947-5-1), CCC standard (GB14048.5) |
Country of Origin |
Japan |
Monotaro ID |
6927435 |
Terminal Shape |
M3.5 screw terminal |
Light Colour |
Amber |
Lens Shape |
Round shape (dome shape) |
Type of Illumination |
LED |
Ring Material |
Metal (chrome plated) |
Illuminated Colors |
Amber |
Mounting Hole Diameter (Φmm) |
25.5(0 - 0.5) |
Name of Manufacturer/Packer/Importer |
IDEC Corporation |
Lamp Voltage (V) |
AC100/110 |
Operation Ambient Temperature (°C) |
-25-50 (no icing) |
Specifications |
Φ25. Indicator light. Standard industrial type. Compatible with a wide range of operating voltages. |
Vibration Resistance (Malfunction) |
5-55Hz, single amplitude 0.5mm |
Import Country |
Direct Import from Japan |
Withstand voltage (V / min) |
AC2500 (between live and non-live parts) / AC2000 (pilot light AC/DC 6V, 12V, 24V) |
Insulation_Resistance (MΩ) |
100 or more (DC500V mega) |
Contact Resistance |
50 mΩ or Less (Initial Value) |
Vibration Resistance (Destruction) |
30Hz, 1.5mm single amplitude |
Operating Ambient Humidity (% RH) |
45 to 85 (no condensation) |
Terminal Cover |
Integrated type |
