| Protection Class | IP40 |
| Model No | AL6M-P3PG |
| Light Source | LED |

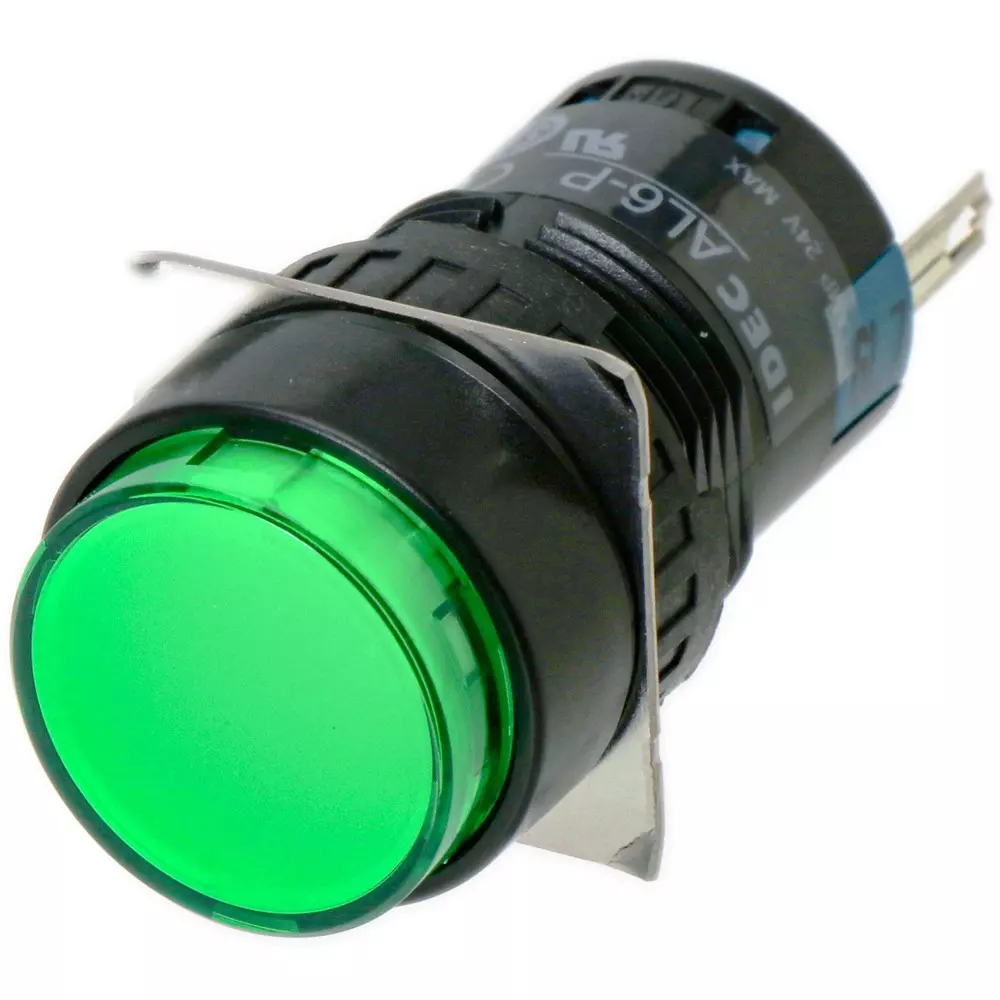

| Type of Product | A6 Series Indicator (Round) |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Protection Class |
IP40 |
Model No |
AL6M-P3PG |
Light Source |
LED |
Type of Product |
A6 Series Indicator (Round) |
Storage Temperature |
-30 - 80 |
Country of Origin |
Japan |
Shape |
Round |
Vibration Resistance |
5-55Hz, single amplitude 0.75mm |
Monotaro ID |
59776394 |
Rated Voltage (V) |
AC/DC12 |
Ambient Humidity to Use |
45% to 85% (with no condensation) |
Light Colour |
Green |
Nameplate Dimensions (mm) |
Φ13.7 |
Mounting Hole Diameter (Φmm) |
16 |
Name of Manufacturer/Packer/Importer |
IDEC Corporation |
Operation Ambient Temperature (°C) |
-25 to 55 (no freezing) |
Import Country |
Direct Import from Japan |
Withstand voltage (V / min) |
(Switch part) Between charging metal part and non-charging metal part: AC2000 Between different pole terminals: AC20000 Between same pole terminals: AC1000 Between contact terminal and lamp terminal: AC1500 (Illuminated part) Between charging part and ground: AC2000 |
Insulation_Resistance (MΩ) |
100 or more (with DC500V mega) |
Contact Resistance |
50 mΩ or Less (Initial Value) |
Shock Resistance (m/s²) |
200 (malfunction), 500 (endurance) |
LED Life (Hrs) |
Mechanical: 1 million times or more Electrical: 100,000 times or more (opening and closing frequency 1200 times / hour) |
Engraving Area (mm) |
12x18 |
Maximum Engraving Depth (mm) |
0.5 |
