| Protection Class | IP65 |
| Model No | AL6H-P3PG |

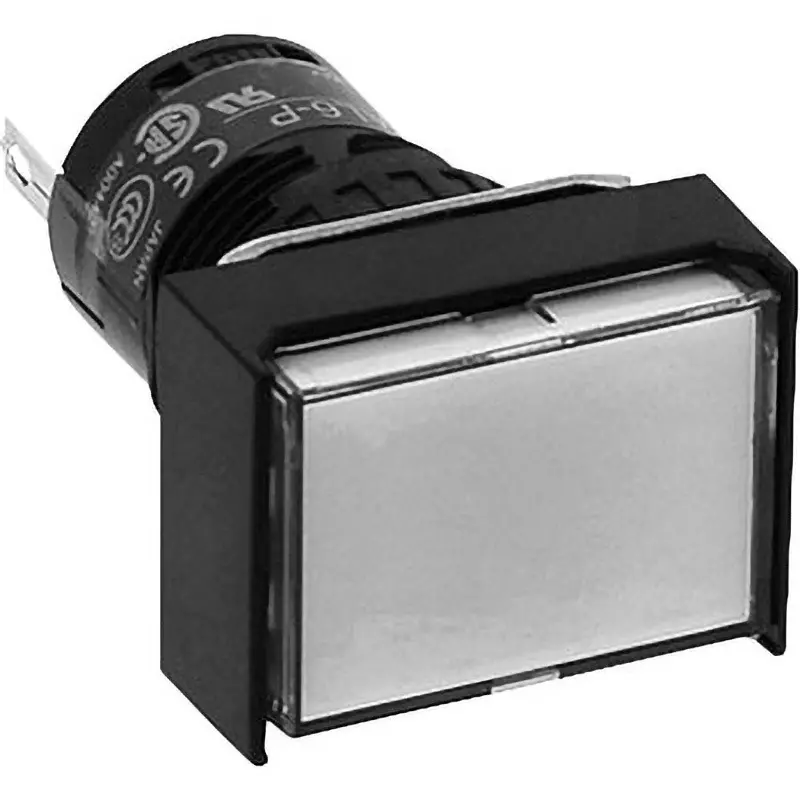

| Type of Product | Rectangular Pilot Lights A6 Series |
| Storage Temperature | -30-80 (no icing) |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Protection Class |
IP65 |
Model No |
AL6H-P3PG |
Type of Product |
Rectangular Pilot Lights A6 Series |
Storage Temperature |
-30-80 (no icing) |
Country of Origin |
Japan |
Monotaro ID |
59777785 |
Terminal Shape |
Solder terminal |
Ambient Humidity to Use |
45% to 85% (with no condensation) |
Light Colour |
Green |
Type of Illumination |
LED |
Rated Insulation Voltage (V) |
250 |
Mounting Hole Diameter (Φmm) |
16.2(0 - 0.2) |
Lens Size |
18x24 mm |
Name of Manufacturer/Packer/Importer |
IDEC Corporation |
Lamp Voltage (V) |
AC/DC12 |
Operation Ambient Temperature (°C) |
-25 to 55 (no icing) |
Vibration Resistance (Malfunction) |
5-55Hz, single amplitude 0.75mm |
Contact Material |
Gold on silver, crossbar contacts |
Import Country |
Direct Import from Japan |
Insulation_Resistance (MΩ) |
100 or more (with DC500V mega) |
Rated Carrying Current (A) |
3 |
Contact Resistance |
50 mΩ or Less (Initial Value) |
Vibration Resistance (Destruction) |
5-55Hz, single amplitude 0.75mm |
Power Consumption (VA) |
1.6 |
Shock Resistance (m/s²) |
200 (malfunction), 500 (endurance) |
