| Type | AP6QS |
| Protection Class | IP65(IEC 60529) |
| Model No | AP6QS54A |
| Light Source | LED |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type |
AP6QS |
Protection Class |
IP65(IEC 60529) |
Model No |
AP6QS54A |
Light Source |
LED |
Type of Product |

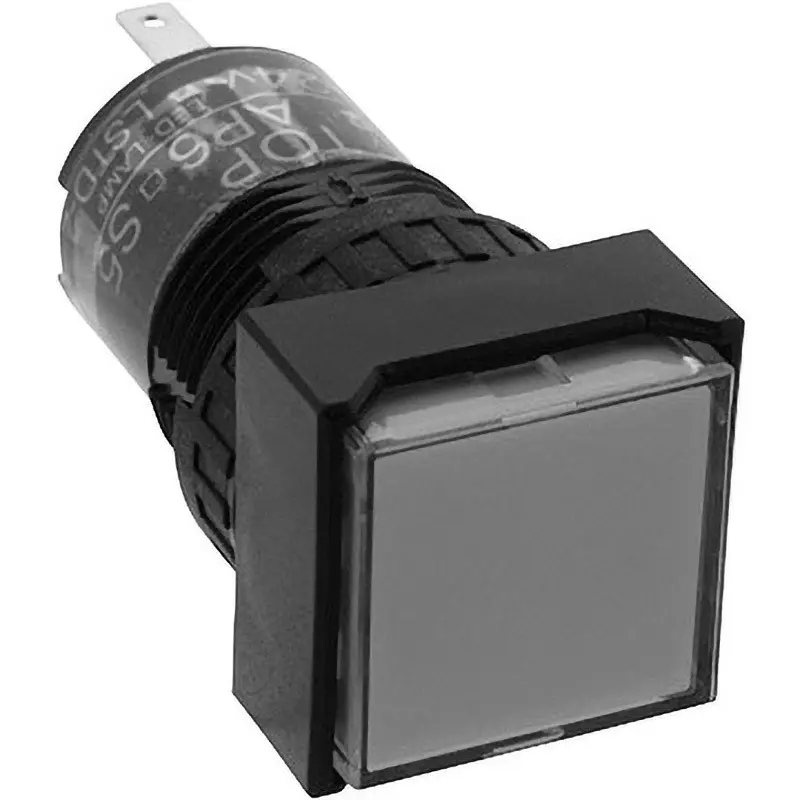

Ap6S Series Small Indicator Light (Square) |
Series |
AP6S series |
Country of Origin |
Japan |
Shape |
Square |
Monotaro ID |
59865802 |
Mass (g) |
9 |
Terminal Shape |
Soldering tab 110 terminal |
Light Colour |
Amber |
Current Consumption (mA) |
8 (AC rating)/7 (DC rating) |
Suitable Wire |
1.25 mm²max |
Mounting Hole Diameter (Φmm) |
16.2(0.2 - 0) |
Name of Manufacturer/Packer/Importer |
IDEC Corporation |
Operation Ambient Temperature (°C) |
-20 to 50 (but not freezing) |
Vibration Resistance (Malfunction) |
10 to 55Hz Single amplitude: 0.5mm |
Import Country |
Direct Import from Japan |
Withstand voltage (V / min) |
Between live and non-live parts: 2000 |
Rated Impulse Withstand Voltage (kV) |
2.5 |
Pollution Degree (Environment to Use) |
3 |
Insulation_Resistance (MΩ) |
100 or more (DC500V mega) |
Vibration Resistance (Destruction) |
10 to 55Hz Single amplitude: 0.5mm |
Storage Temperature Range |
-30-80℃ (no icing) |
Operating Voltage Range (V) |
AC/DC24±10% |
