| Protection Class | IP20 |
| Model No | NHV4-3D-RYG |
| Light Source | LED |
| Type of Product | Network Control Signal Light |
Protection Class |
IP20 |
Model No |
NHV4-3D-RYG |
Light Source |
LED |
Type of Product |
Network Control Signal Light |
Storage Temperature |
-10 to +60℃ |
Country of Origin |
Japan |
Monotaro ID |
50248119 |
Rated Voltage (V) |
AC 100 to 240 |
Included Components |
AC adapter, adhesive sheet |
LED Color |
Red Yellow Green |
No. of Tiers |
3 |
Name of Manufacturer/Packer/Importer |
Patlite Corporation |
Outer Diameter (Φmm) |
40 (signal light section) |
Specifications |
Send email |
Applicable Standard |
UL62368-1, CSA C22.2 No.62368-1, FCC Part 15 Subpart B(Class A), ICES-003(Class A), EN 55032(Class A), EN 55035, EN IEC 63000 |
Import Country |
Direct Import from Japan |
Correction |
Stacked signal lights |
Rated Power Consumption (W) |
9 |
Action Type |

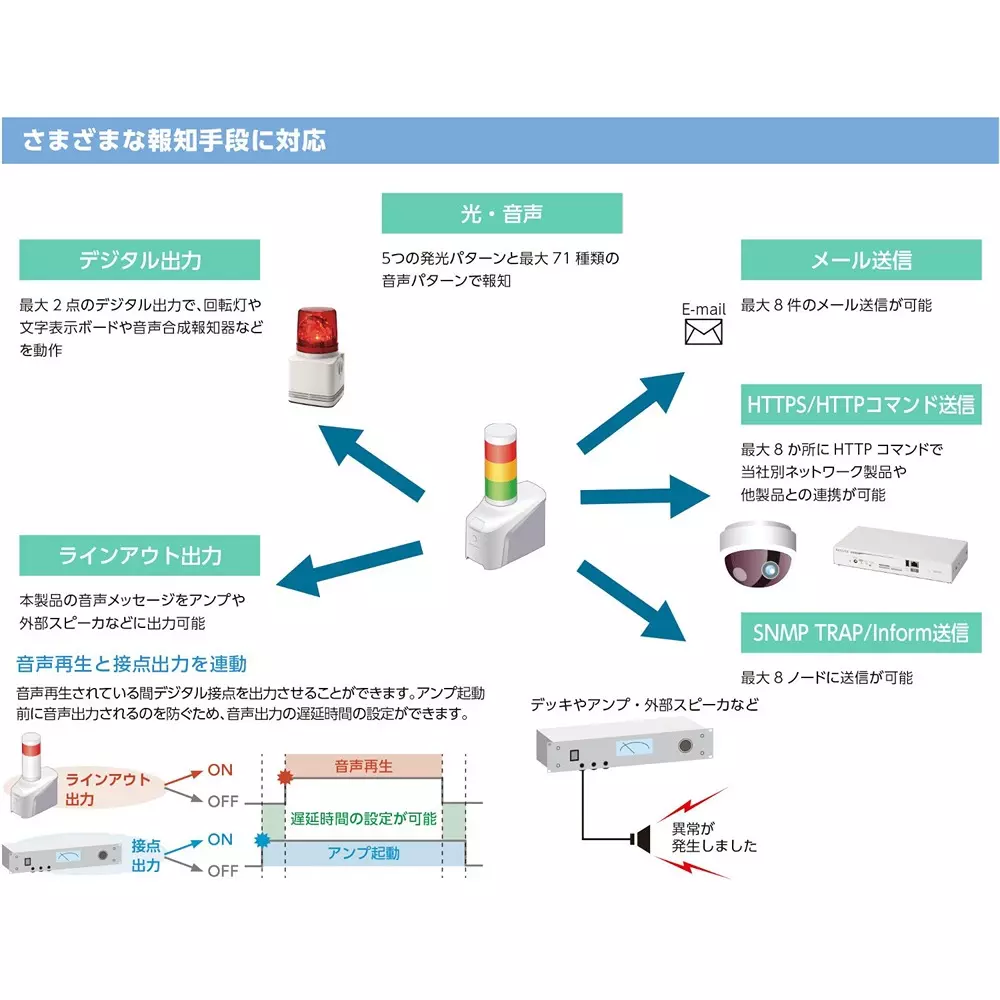

4 types of lighting and flashing patterns, 5 patterns of buzzer sound, and audio (up to 71 types of messages can be played on the main unit and line output) |
Location |
Indoor |
Type of Sign |
Direct attachment |
Mass (Kg) |
0.94499999999999995 |
Material (Unit) |
PC, ABS |
Communication Protocol |

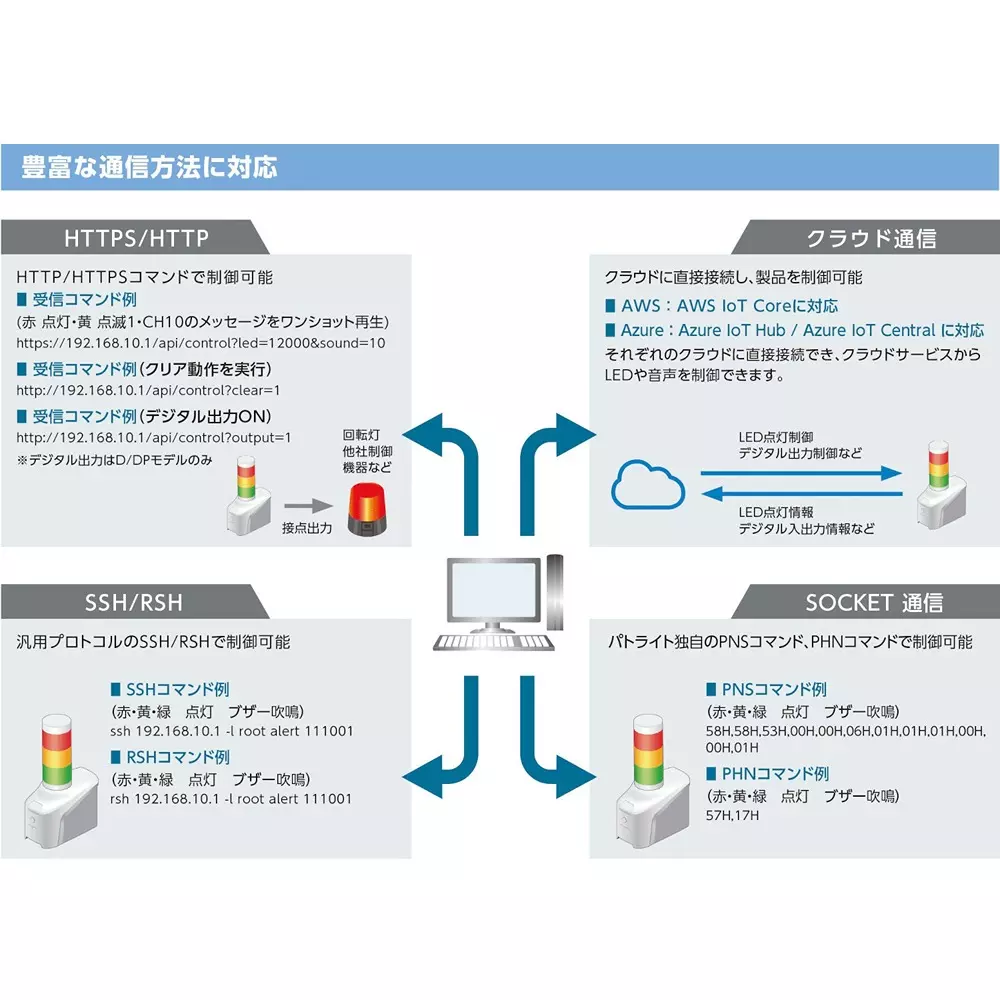

Ethernet (IEEE 802.3 compliant), 10BASE-T/100BASE-TX/1000BASE-T (Auto MDI/MDI-X compatible) |
Outer Dimensions |
88x161x270 mm |
Digital Output |
2 points |
