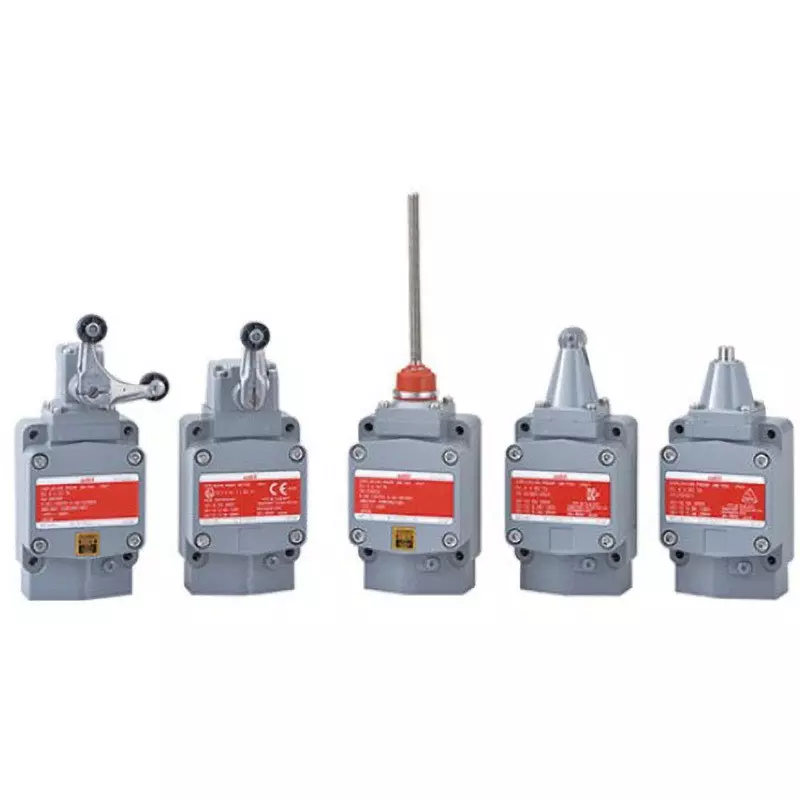

Azbil Limit Switch Adjustable Roller Lever Type 100 mohm or more (DC 500 V), 1LX7003-ETK

Name: Azbil Limit Switch Adjustable Roller Lever Type 100 mohm or more (DC 500 V), 1LX7003-ETK
Brand: Azbil
SKU: IND.LIM.143628237
Price: 36579 INR
Availability: InStock

Visit the Azbil Store

EMI starts at ₹3250/month. No Cost EMI available.

Available offers

Get Flat 10% off on your First Orders above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 3% off on First Order above ₹3,000

View

Features

Country of Origin	Japan
Material	External threads: Stainless steel
Type of Product	Limit Switch
Standard	CNS

More Azbil Limit Switches products More Limit Switches products

100% Original Products

Secure Payments

100% Buyer Protection

Top Brands

specifications

Country of Origin	Japan
Material	External threads: Stainless steel
Type of Product	Limit Switch
Standard	CNS
Allowable Operating Speed	1.0mm/s to 0.5m/s (minimum speed: unstable contact state for 0.1s or less, maximum speed: no actuator damage)
Protection Class	IP67(IEC 60529, JIS C 0920)
Housing Material	Aluminum alloy + gray epoxy baking paint
Actuator Type	Adjustable roller lever type
Model No	1LX7003-ETK
Monotaro ID	51830399
Withstand Voltage	Between terminals of the same polarity: AC 600V 50/60Hz for 1 minute, between each terminal and non-charging metal parts: AC 2000V 50/60Hz for 1 minute, between each terminal and earth: AC 2000V 50/60Hz for 1 minute
Allowable Operation Frequency	120 times/min or less
Operating Temperature Range	-10 to 60℃ (no freezing)
Head Shape	Roller lever
Cable	G1/2
Import Country	Direct Import from Japan
Terminal Shape	Pan head screw with M4 square washer
Name of Manufacturer/Packer/Importer	Azbil Corporation
Storage Temperature Range	-10 to 60℃
Insulation Resistance (MOhm)	100 or more (DC500V insulation resistance tester)
Specifications	Group and temperature class: IIC T6, Hazardous area classification: Class 1 hazardous area (Zone 1)/Class 2 hazardous area (Zone 2)
Suitable Wire Diameter	Terminal wire: Nominal cross-sectional area 0.5mm <sup>2</sup> to 1.5mm <sup>2</sup> (AWG20 to AWG16), Terminal cable: Nominal cross-sectional area 0.5mm <sup>2</sup> to 2.5mm <sup>2</sup> (AWG20 to AWG14), Internal earth: Uses M3 insulated crimp terminal, External earth: Uses M4 crimp terminal/Can connect wires with a nominal cross-sectional area of up to 4mm <sup>2</sup>
Explosion-Proof Structure	Internal switch: d (explosion-proof), housing: e (safe explosion-proof)
Seal Material	Silicon Rubber
