| Type | Heat-Resistant Type |
| Country of Origin | Japan |
| Type of Product | Compact Limit Switch |
| Vibration Resistance | Double Amplitude 1.5Mm, Frequency 10-55Hz, Continuous 2 Hours (Neca C 4508) |
Type |
Heat-Resistant Type |
Country of Origin |
Japan |
Type of Product |
Compact Limit Switch |
Vibration Resistance |
Double Amplitude 1.5Mm, Frequency 10-55Hz, Continuous 2 Hours (Neca C 4508) |
Allowable Operating Speed |
(Highest) 0.5m / s, (lowest) 1.7mm / s |
Protection Class |
IP67(IEC60529, JIS C 0920) |
Operating Force |
Up to 13.4 N |
Contact Type |
2 Circuits |
Actuator Type |
Roller Lever Type |

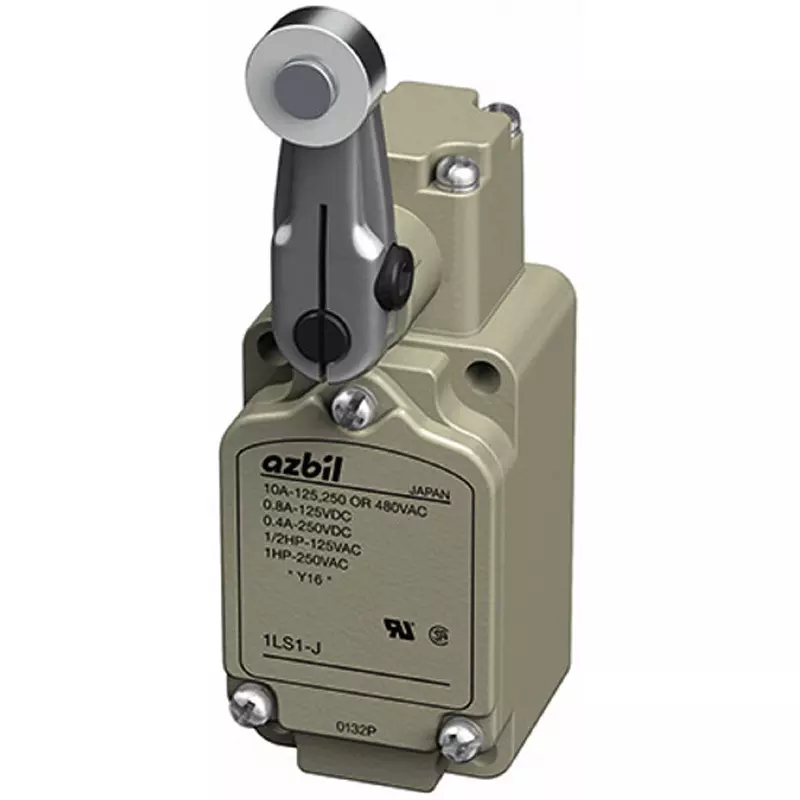

Model No |
1LS1-JH |
Monotaro ID |
38438023 |
Rated Carrying Current (A) |
(lth)10 |
Withstand Voltage |
(Between terminals of the same polarity) 1000 VAC 50/60 Hz 1 min (Each terminal and non-current-carrying metal part) 2000 VAC 50/60 Hz 1 min |
Rated Frequency (Hz) |
45 to 65 and dc |
Return Force (N) |
Rf: 2.2 Minimum |
Allowable Operation Frequency |
60 times / min or less |
Pollution Degree (Environment to Use) |
Pollution Degree 3 (En60947-5-1) |
Operating Temperature Range |
-10 to +120℃ (with no icing) |
Operating Humidity Range |
98% RH or less |
Import Country |
Direct Import from Japan |
Terminal Shape |
M4 Screw (Binding Screw With Toothed Washer), Din 4-Pin Connector (M12 Size), Pre-Wire |
Rated Working Voltage |
120/240 V AC, 30V DC |
Name of Manufacturer/Packer/Importer |
Azbil Corporation |
Shock Resistance (m/s²) |
300 (Contact Opening Is 1 Ms Or Less (Neca C 4508)) |
Insulation Resistance (MOhm) |
100 or more (DC500 insulation resistance meter) |
Conformed Standard |
Neca C 4508/Jis C 8201-5-1, Iec 60947-5-1 |
