| Country of Origin | Japan |

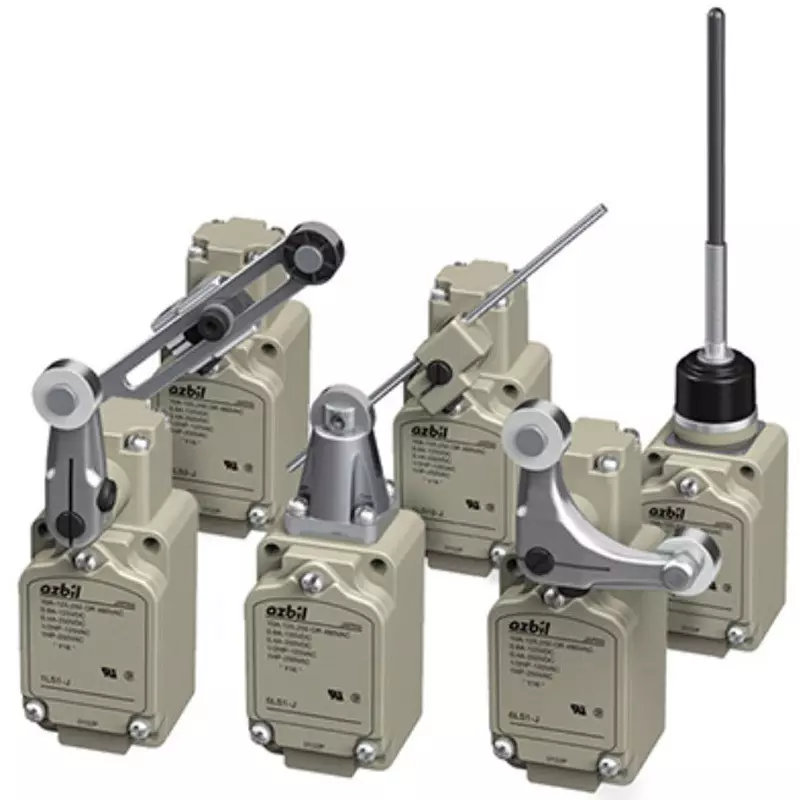

| Type of Product | Compact Limit Switch |
| Protection Class | IP67(IEC 60529, JIS C 0920) |
| Actuator Type | Adjusting Roller Lever Type |
Country of Origin |
Japan |
Type of Product |
Compact Limit Switch |
Protection Class |
IP67(IEC 60529, JIS C 0920) |
Actuator Type |
Adjusting Roller Lever Type |
Model No |
1LS3-JL |
Monotaro ID |
41064091 |
Withstand Voltage |
Between terminals of the same polarity: 1000 V 50/60 Hz for 1 minute (standard operating characteristics type) / AC600 V 50/60 Hz for 1 minute (high sensitivity mailer lever type), between each terminal and non-charging metal parts: 2000 V 50/60 Hz for 1 minute, between each terminal and earth: AC2000 V 50/60 Hz for 1 minute (only G with earth terminal) |
Rated Frequency (Hz) |
45 to 65 and dc |
Cable Length (m) |
2 |
Rated Insulation Voltage (V) |
AC 125/250 |
Operating Temperature Range |
-40 to 70℃ (no freezing) |
Import Country |
Direct Import from Japan |
Terminal Shape |
M4 Screw (Binding Screw With Toothed Washer), Din 4-Pin Connector (M12 Size), Pre-Wire |
Name of Manufacturer/Packer/Importer |
Azbil Corporation |
Specifications |
Conditional Rated Short Circuit Current: 1000A, Switching Overvoltage: Category Iii (Iec 60204-1) |
Options |
Cold-Resistant Type |
