| Type of Product | Multi-Monitoring Unit |
| Model No | BCRN3000 |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | Panasonic Corporation |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Multi-Monitoring Unit |
Model No |
BCRN3000 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Memory |
4GB or more for Windows 11, 2GB or more for Windows 10 |
Monotaro ID |
51503770 |
Import Country |
Direct Import from Japan |
Operating Ambient Humidity |
80 or less, but no condensation |
Specifications |

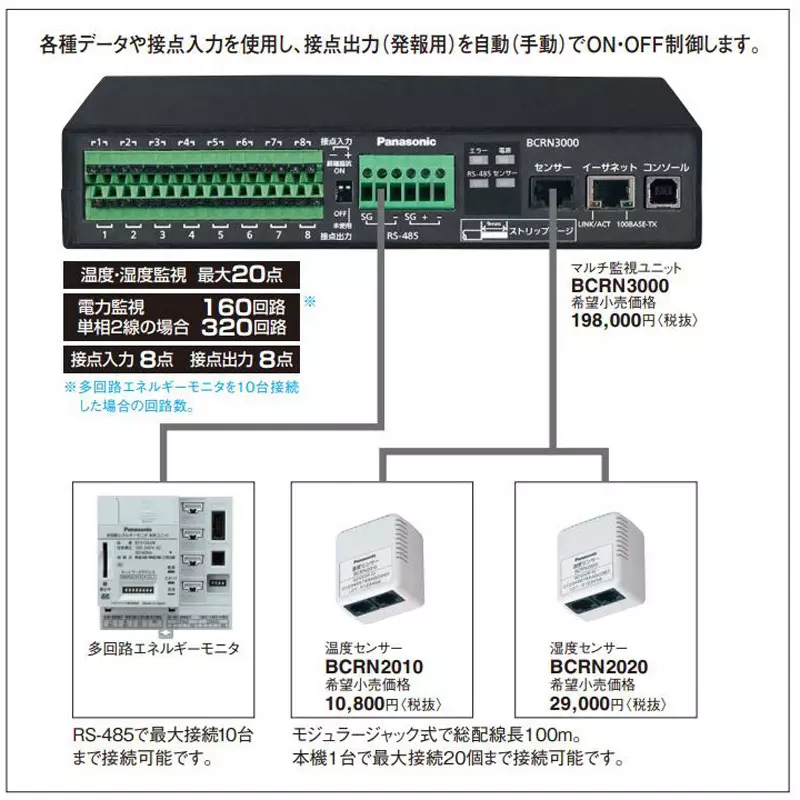

[Ethernet (LAN cable outlet)] Number of outlets: 1, power-saving Ethernet: not supported, co mmunication method: 10BASE-T/100BASE-TX (AUTO-MDI/MDI-X compatible), connector: RJ-45, Transmission speed: 10/100Mbps (auto negotiation supported), Maximum transmission distance: 100m, Supported protocols: IPv4/SNMP/HTTP/FTP/SMTP/SNTP, [RS-485 co mmunication] Number of lines: 1 (with sending terminal), Connected equipment: Power meter [Standard mode] Multi-circuit energy monitor BT3720KN/BT37202KN, [BCRN2500 compatible mode] Multi-circuit energy monitor BT3720KN (*Can be used with multi-circuit power checker compatible specifications)/Multi-circuit power checker BT3710, Terminal: Screw Type terminal, Transmission speed: 9600 bps, Maximum wiring length: 800 m, Maximum number of connected devices: (Standard mode) 10 devices/(BCRN2500 compatible mode) 8 devices, Reco mmended cable/cable diameter: CPEV-S (with CPEV wire shield) Φ0. 65 to 1.25 (reco mmended Φ0.9 or more when considering maximum wiring length), Co mmunication protocol: EMIT (2-wire system), Termination resistance: Termination or non-termination can be set with a dip switch, [Sensor connection] Number of ports: 1. Connected equipment: (sold separately) Temperature sensor (BCRN2010, BCRN10325B) / (sold separately) Humidity sensor (BCRN2020) * Daisy chain connection with LAN cable (straight) Three types can be connected together * Humidity sensor (BCRN2020) Reco mmended replacement period 2 Year, Connector: RJ-45, Maximum wiring length: 100m, Maximum number of connected devices: 20, [Contact input] Number of contact inputs: 8, Input: Photocoupler (compatible with voltage-free contacts), Applied current/voltage: 10mA DC5V, Terminal: Quick connection terminal (screwless terminal), Reco mmended cable/Applicable cable diameter: KPEV solid wire AWG26 (Φ0.4) ~ AWG16 (Φ1.2), twisted wire AWG22 (0.6 mm <sup>2</sup> ) ~ AWG16 (1.25 mm <sup>2</sup> ), Maximum wiring length: 100m, [Contact output] Number of contact outputs: 8, Output: Voltageless a contact (relay output)/Latch type relay, Contact capacity: DC30V 1A (DC24V or less is 2A)/AC100V 0.5A, Terminal: Speed Connection terminal (screwless terminal), reco mmended cable/compatible cable diameter: KPEV solid wire AWG26 (Φ0.4) ~ AWG16 (Φ1.2), twisted wire AWG22 (0.6 mm <sup>2</sup> ) ~ AWG16 (1.25 mm <sup>2</sup> ), maximum wiring length : 100m, [Console] Number of ports: 1, Connected device: Computer with USB port (laptop reco mmended), Terminal: USB (Type-B), Co mmunication method: Serial co mmunication, Standard: USB1.1/2.0 Full Speed , Co mmunication speed: 38400 bps, Setting function: Network settings/initialization, |
Power Consumption (W) |
3 W (6 V Amp) |
Allowable Voltage Range |
AC 100 V (-15%, 10%) 50/60 Hz, power cord connected (included in individual box, length 1.8 m) |
Applicable Standard |
Voluntary Control Council For Radio Interference (Vcci) Class A |
Mass (Kg) |
About 0.7 |
Operating System |
Microsoft Windows 11 Pro, Microsoft Windows 10 Pro |
LED |
Power supply, RS-485 communication, sensor communication, error display, LAN communication, 100M communication |
Supported Browser |
Microsoft Edge, Google Chrome |

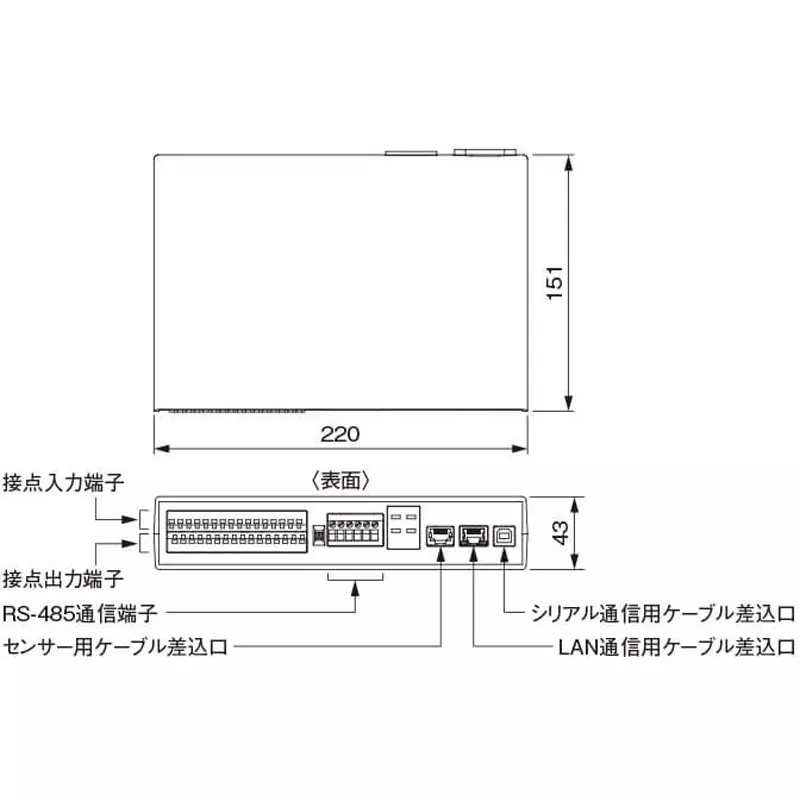

Outer Dimensions |
220x151x43 mm |
Operation Ambient Temperature (°C) |
‐10-+50 |
Format |
2GHz or more |
