Ships within 19 days
Model No
View
View
View
View
| Mounting Type | With Cover/DIN rail mount |
| Storage Temperature | -25 to 75 °C |

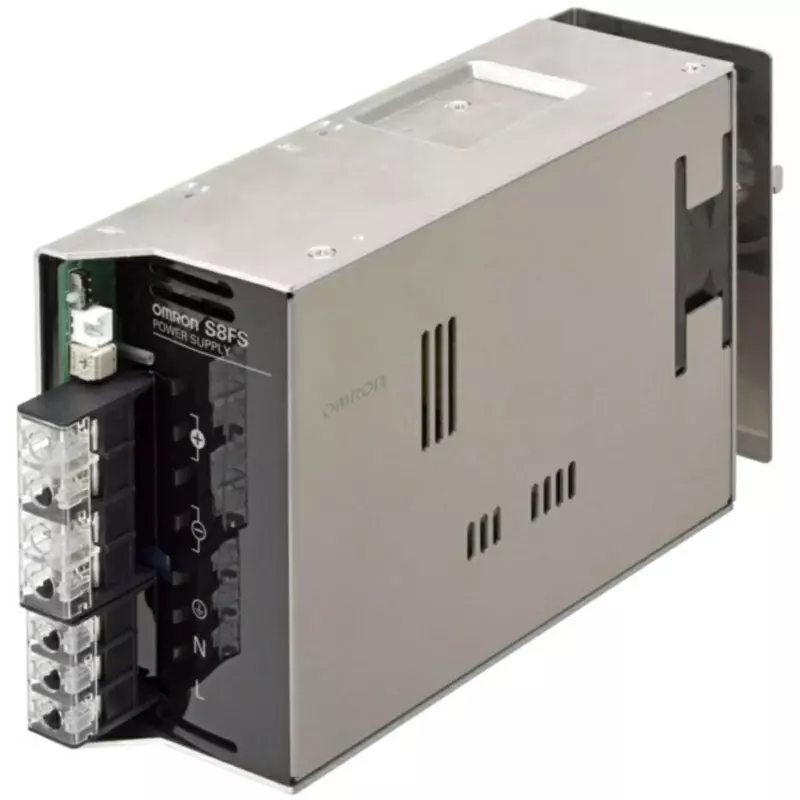

| Type of Product | Switching Power Supply |
| Model No | S8FS-G60024CD-400 |
Mounting Type |
With Cover/DIN rail mount |
Storage Temperature |
-25 to 75 °C |
Type of Product |
Switching Power Supply |
Model No |
S8FS-G60024CD-400 |
Category |
Misc Switch Mode Power Supply |
Power Factor |
0.9 or more |
Rated Output Voltage (V) |
DC24 |
Terminal Shape |
Screw Terminal Block |
Rated Output Current (A) |
27 |
Monotaro ID |
66518594 |
Rated Input Voltage (V) |
AC 100 to 240 |
Shape |
With cover |
Mass (g) |
1050 |
Inrush current (A) |
At Ac100/200V Input: 14/28Typ. (25℃, Cold Start) |
Safety Standard |
UL 508 (Listing: non-connector type) / UL 62368-1 (Recognition, OVCⅡ[≦3000m], Pol2) / CSA C22.2 No.107.1 (non-connector type) / CSA C22.2 No.62368-1 (non-connector type) / EN 62477-1 (OVCⅢ〔≦2000m〕, OVCⅡ〔2000＜and≦3000m〕, Pol2) / EN/IEC 62368-1 (OVCⅡ[≦3000m], Pol2) / EN/IEC 61558-2-16 compliant / PELV (EN/IEC 60204-1) compliant / RCM (EN61000-6-4) |
Insulation Resistance |
100 or more, DC500V (between all output terminals) and (all input terminals) |
Input Fluctuation |
Static: 0.5% or less |
Series |
S8FS-G Series |
Structure |
With cover / DIN rail mounting |
Output (W) |
600 |
Standard |
EMS: EN 61204-3 high severity levels/SEMI F47-0706 (at AC200 V input) |
Country of Origin |
China |
Import Country |
Direct Import from Japan |
Type of Sign |
DIN rail mounting |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Operation Ambient Temperature (°C) |
-20 to 70°C |
Shock Resistance (m/s²) |
150 (3 times in 6 directions) |
