Ships within 25 days
View
View
View
View

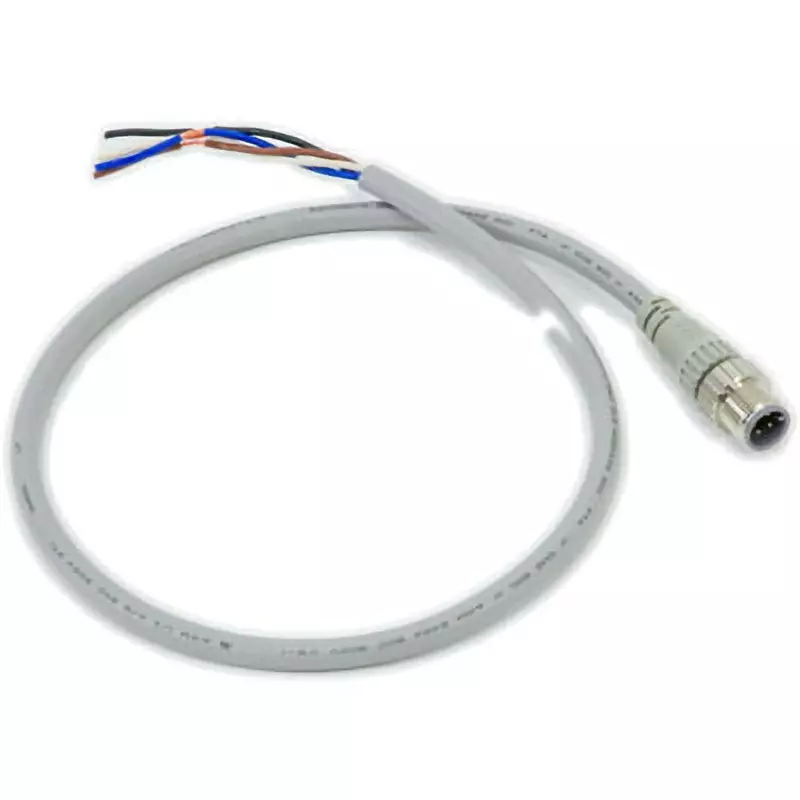

| Type of Product | Connector |
| Model No | XS2H-D421-B80-F |
| Insulation Resistance | 1000 mΩ Or more (At 500 VDC) |
| Type | For Dc |
Type of Product |
Connector |
Model No |
XS2H-D421-B80-F |
Insulation Resistance |
1000 mΩ Or more (At 500 VDC) |
Type |
For Dc |
Rated Voltage (V) |
DC 36 |
Monotaro ID |
46682851 |
Contact Resistance |
40 or Less (DC 20 mV or Less, 100 mA or Less) |
Rated Current (A) |
1.5 |
Contact Material |
Brass |
Operating Humidity Range |
20 to 85 %RH |
Shape |
Straight |
Cover Material |
Soft PBT (UL94V-0) |
Protection Class |
IP67 |
Material (O-ring) |
Rubber |
Connector |
One Side Connector |
Cable Length |
500 mm |
Country of Origin |
JAPAN |
Operating Temperature Range |
-25 to +70 |
Pole |
4 |
Import Country |
Direct Import from Japan |
Cable Direction |
Straight |
Cable |
Flame Retardant, Robot Cable |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
No. of Cores x Sectional Area |
4×0.5 mm² |
