Ships within 5 days

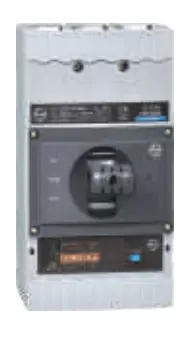

![L&T [ Lauritz Knudsen ] d Sine MCCB CM92151OOOOAG DN2-250D Pole No 4](http://static1.industrybuying.com/products/electrical/switchgear-and-accessories/molded-case-circuit-breakers-mccb/ELE.MOL.12343704_1667950378250.webp "L&T [ Lauritz Knudsen ] d Sine MCCB CM92151OOOOAG DN2-250D Pole No 4")
Current Rating
Model No
View
View
View
View
| Product Sub Type | d Sine |
| Type of Product | MCCB |
| Current Rating | 100 - 250 A |
| Breaking Capacity | 36 kA |
Product Sub Type |
d Sine |
Type of Product |
MCCB |
Current Rating |
100 - 250 A |
Breaking Capacity |
36 kA |
No. of Pole |
4 Pole |
Additional Details |
Conforms to IS/IEC 60947-2 & IEC 60947-2 Range: 40A to 1250A, 3P & 4P Choice of 36kA / 50kA / 70kA / 100kA breaking capacities Ics = 100% Icu Suitable for Isolation Adjustable Over Load from 0.4 - 1.0 x In Adjustable Short Circuit from 1.5 - 8 x Ir Inbuilt Instantaneous Protection Inbuilt ground fault protection from 20% - 50% of In Adjustable neutral overload protection available : 50% to 150% of Ir Provision of Thermal Memory : ON/OFF Variable trip class at 7.2 Ir & 6 Ir Front LED indication of Over Load, short circuit & earth fault Panel mounted display available for Current metering & trip record Manual, Rotary or Motorised versions available @ For 3 phase 4 wire system, External neutral CTs available for 3P MCCBs Wide Range of snap fit Internal and External Accessories Breaking Capacity Icu at 415V AC, 50Hz. (kA)-36 |
Model No |
CM92151OOOOAG |
Part No |
DN2-250D |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
Larsen & Toubro Limited |
