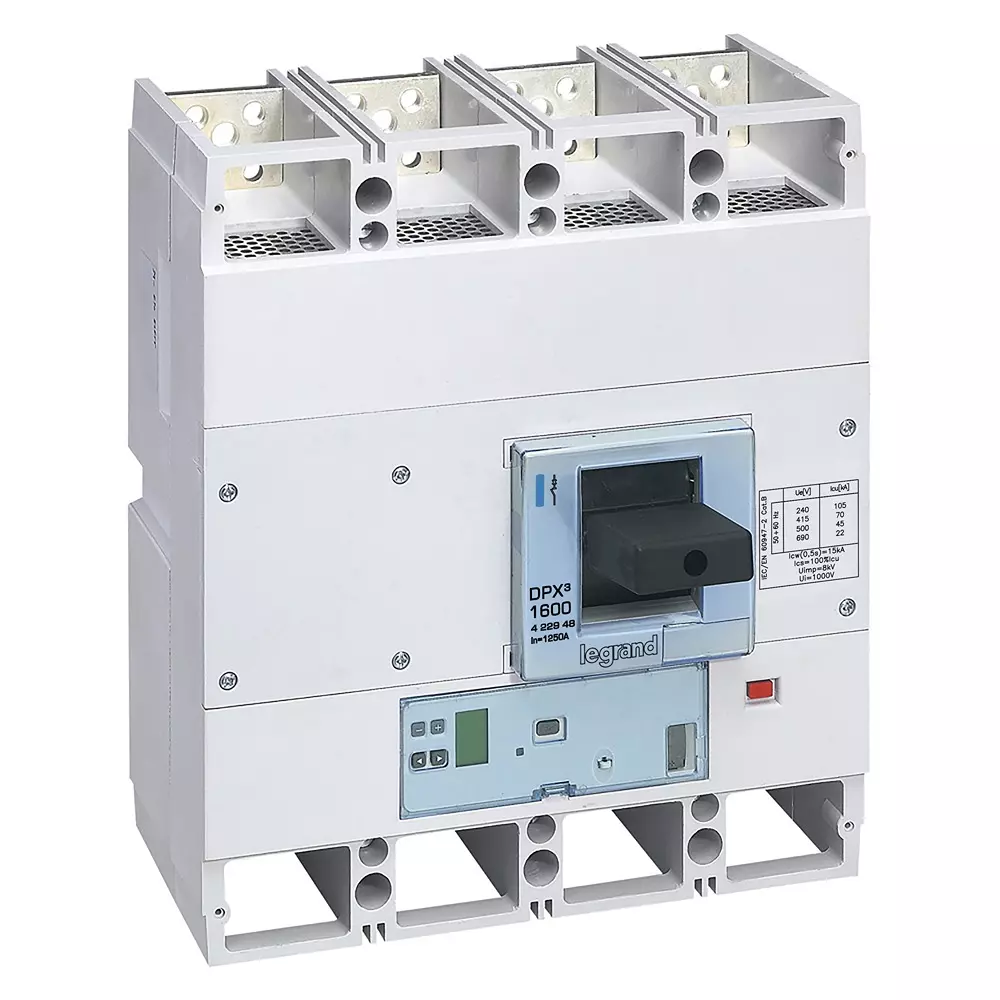

| Type | DPX³ 1600 |
| Type of Product | MCCB |
| Breaking Capacity | 70 kA |
| Insulation Voltage | 1000 V |
Type |
DPX³ 1600 |
Type of Product |
MCCB |
Breaking Capacity |
70 kA |
Insulation Voltage |
1000 V |
Rated Voltage |
220-690 V |
Model No |
422948 |
Operating Temperature |
-5 - 70 °C |
Pole |
4 Pole |
Current |
1250 A |
Protection |
Overload, Short Circuit, Ground Fault, Neutral Fault |
Frequency |
50-60 Hz |
Depth |
215 mm |
Width |
280 mm |
Height |
320 mm |
Standard |
EN/IEC standard 60947 - 2 |
Suitable For |
Isolation |
Color |
Grey |
Country of Origin |
India |
Voltage Type |
AC |
Short Circuit Capacity |
Short Term Delayed : 1875-12500 A, Undelayed : 15.000-15.000 A |
Auxiliary Contacts |
CO-3 |
Name of Manufacturer/Packer/Importer |
Legrand India Private Limited |
Usage For |
Protection of high power industrialinstallations |
Unit Type |
with New Electronics S10 Protection Unit |
Memory |
Switchable Thermal Memory |
Connection Type |
Screw connection |
Control Element Type |
Wing Knob |
Construction Type |
Built-in device fixed built-in technique |
Overload Release Current Setting |
250-1250 A |
Halogen Free |
Yes |
Withstanding Voltage |
8 kV |
Position |
Connection: Front Side |
Terminal Capacity |
120-800 mm² |
Storage Temperature |
-40 - 85 °C |
Integrated |
Energy Metering |
Accuracy Class |
1 |
Ingress Protection |
IP30 |
Port |
USB Port |
Battery Included |
Yes |
Battery Type |
Internal Battery (CR616 Lithium Battery Non-Rechargable with Battery Measure Function) |
