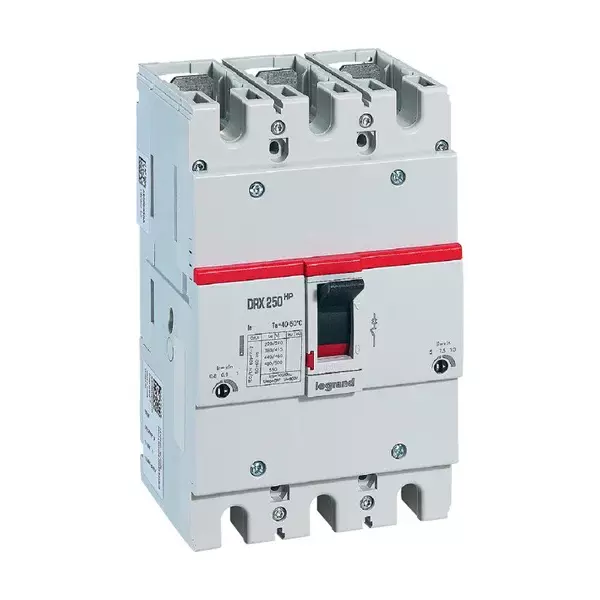

| Type | DRX 250HP |
| Type of Product | MCCB |
| Breaking Capacity | 50 kA |
| Rated Voltage | 220-550 V |
Type |
DRX 250HP |
Type of Product |
MCCB |
Breaking Capacity |
50 kA |
Rated Voltage |
220-550 V |
Model No |
669110 |
Operating Temperature |
-5 - 70 °C |
Pole |
4 Pole |
Current |
160 A |
Frequency |
50-60 Hz |
Depth |
112 mm |
Width |
140 mm |
Height |
165 mm |
Standard |
IEC 60947 - 2 |
Color |
Grey |
Country of Origin |
India |
Voltage Type |
AC |
Short Circuit Capacity |
Short Term Delayed : 800-1600 A |
Auxiliary Contacts |
CO-2 |
Name of Manufacturer/Packer/Importer |
Legrand India Private Limited |
Usage For |
Switching, control, isolation and protection of low - voltage electrical lines |
Unit Type |
Thermal Magnetic Protection Unit |
Connection Type |
Screw connection |
Control Element Type |
Wing Knob |
Construction Type |
Built-in device fixed built-in technique |
Overload Release Current Setting |
128-160 A |
Halogen Free |
Yes |
Position |
Connection: Front Side |
Terminal Capacity |
120-300 mm² |
Storage Temperature |
-40 - 85 °C |
Ingress Protection |
IP30 |
