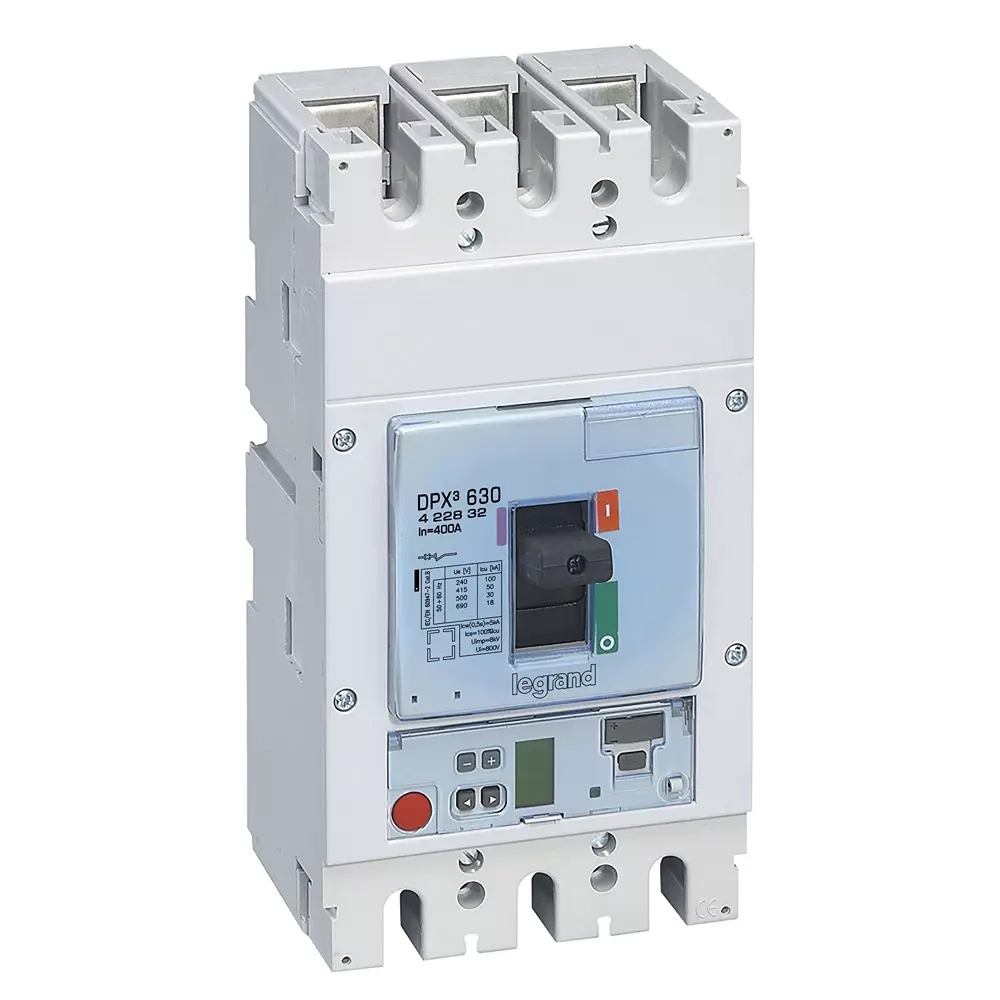

| Type | DPX³ 630 |
| Type of Product | MCCB |
| Breaking Capacity | 50 kA |
| Insulation Voltage | 800 V |
Type |
DPX³ 630 |
Type of Product |
MCCB |
Breaking Capacity |
50 kA |
Insulation Voltage |
800 V |
Rated Voltage |
230-400 V |
Model No |
422832 |
Operating Temperature |
-5 - 70 °C |
Pole |
3 Pole |
Current |
400 A |
Protection |
Overload, Short Circuit, Ground Fault, Neutral Fault |
Frequency |
50-60 Hz |
Depth |
170 mm |
Width |
270 mm |
Height |
150 mm |
Standard |
EN/IEC standard 60947 - 2 |
Suitable For |
Isolation |
Color |
Grey |
Country of Origin |
India |
Voltage Type |
AC |
Short Circuit Capacity |
Short Term Delayed : 1.5 - 10 A |
Auxiliary Contacts |
NC-1, NO-1, CO-1 |
Name of Manufacturer/Packer/Importer |
Legrand India Private Limited |
Usage For |
Protection of high power industrialinstallations |
Unit Type |
with New Electronics S10 Protection Unit |
Memory |
Switchable Thermal Memory |
Connection Type |
Screw connection |
Control Element Type |
Wing Knob |
Construction Type |
Complete device in housing |
Overload Release Current Setting |
0.2 - 1 A |
Halogen Free |
Yes |
Withstanding Voltage |
8 kV |
Position |
Connection: Back Side |
Terminal Capacity |
90 - 150 mm² |
Storage Temperature |
-40 - 85 °C |
Impact Strength |
Degree: IK07 |
Integrated |
Energy Metering |
Accuracy Class |
1 |
Ingress Protection |
IP30 |
Port |
USB Port |
