| Rated Current (A) | 20 |

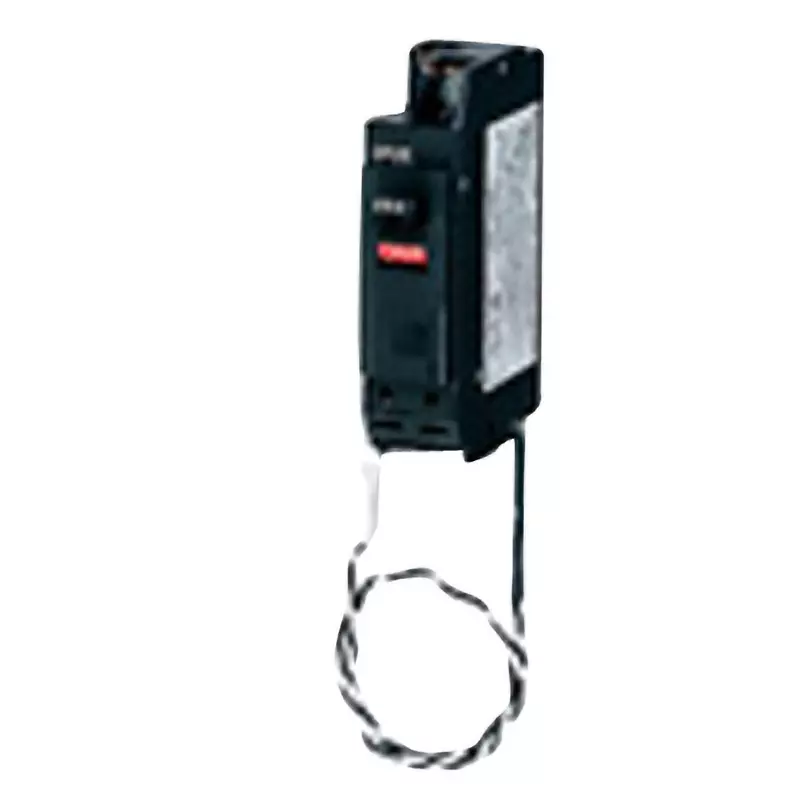

| Type of Product | Can Touch Breaker |
| No. of Pole | 2P2E |
| Model No | BKF2202CT |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Rated Current (A) |
20 |
Type of Product |
Can Touch Breaker |
No. of Pole |
2P2E |
Model No |
BKF2202CT |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Monotaro ID |
38181595 |
Rated Breaking Capacity (kA) |
5(AC100/200 V)/2.5(AC240V) |
Frame (AF) |
50 |
Rated Voltage (V) |
AC100/200, AC240 |
Import Country |
Direct Import from Japan |
Terminal Shape |
(Power Side) Crimp Terminal, (Load Side) Quick Connection Terminal |
Overcurrent Tripper Type |
Thermal / Electromagnetic |
Mass (Kg) |
0.15 |
Suitable Terminal |
(Crimp Terminal) 2-5, 5.5-5, 8-5S (Quick Connection Terminal) Φ1.6, Φ2.0, Φ2.6 |
Phase / Wire Type |
1Φ3W (single-phase three-wire 100 / 200 V), 1Φ2W (single-phase two-wire 240V) |
