| Type | For earth leakage protection |
| Rated Current (A) | 20 |
| Type of Product | Case Breaker |
| No. of Pole | 2P1E |
Type |
For earth leakage protection |
Rated Current (A) |
20 |
Type of Product |
Case Breaker |
No. of Pole |
2P1E |
Model No |
BEDS22031R5 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Monotaro ID |
38175636 |
Rated Breaking Capacity (kA) |
1.5 |
Frame (AF) |
30 |
Storage equipment |
Small earth leakage breaker (2 pieces), 15A removal prevention, ground outlet (2 pieces), ground terminal (1 piece) |
Rated Voltage (V) |
AC100 only |
Rated Sensitivity Current (mA) |
30 |
Connectable Stranded Wire (mm²) |
(Maximum) 8 |
Import Country |
Direct Import from Japan |
Mass (Kg) |
About 0.7 |
Specifications |
With Outlet, For Indoor Use, For Single Exposed Construction |
Suitable Cap |
Hook: WF7005K, WF52153B, etc. |
Outlet Specification |
15A Grounding Socket (Wn1161) |
Chip Breaker |
Two mounted |

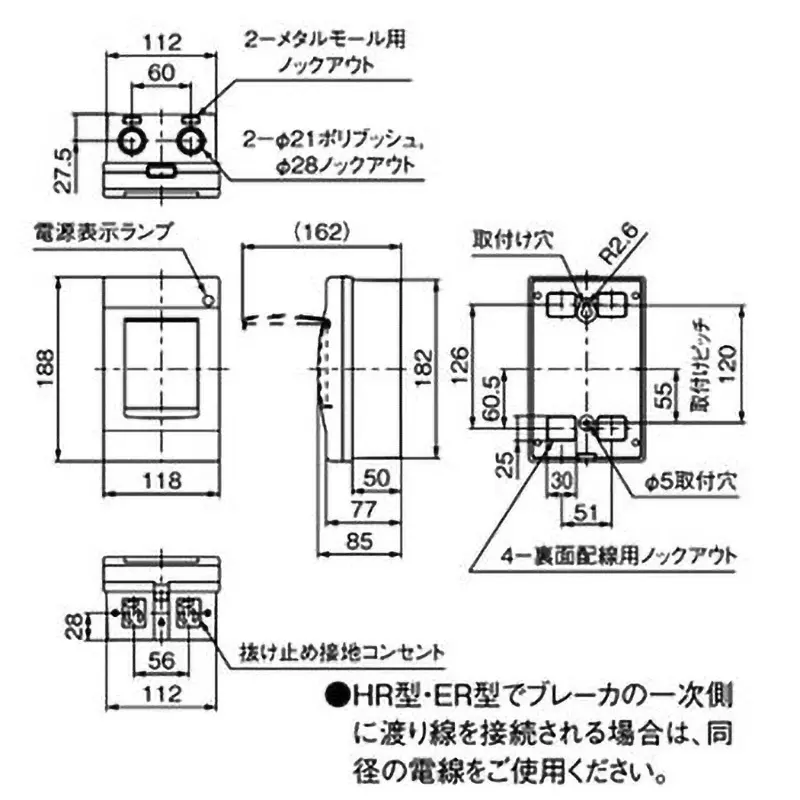

Dimension (mm) |
(H)188x(W)118x(D)85 |
